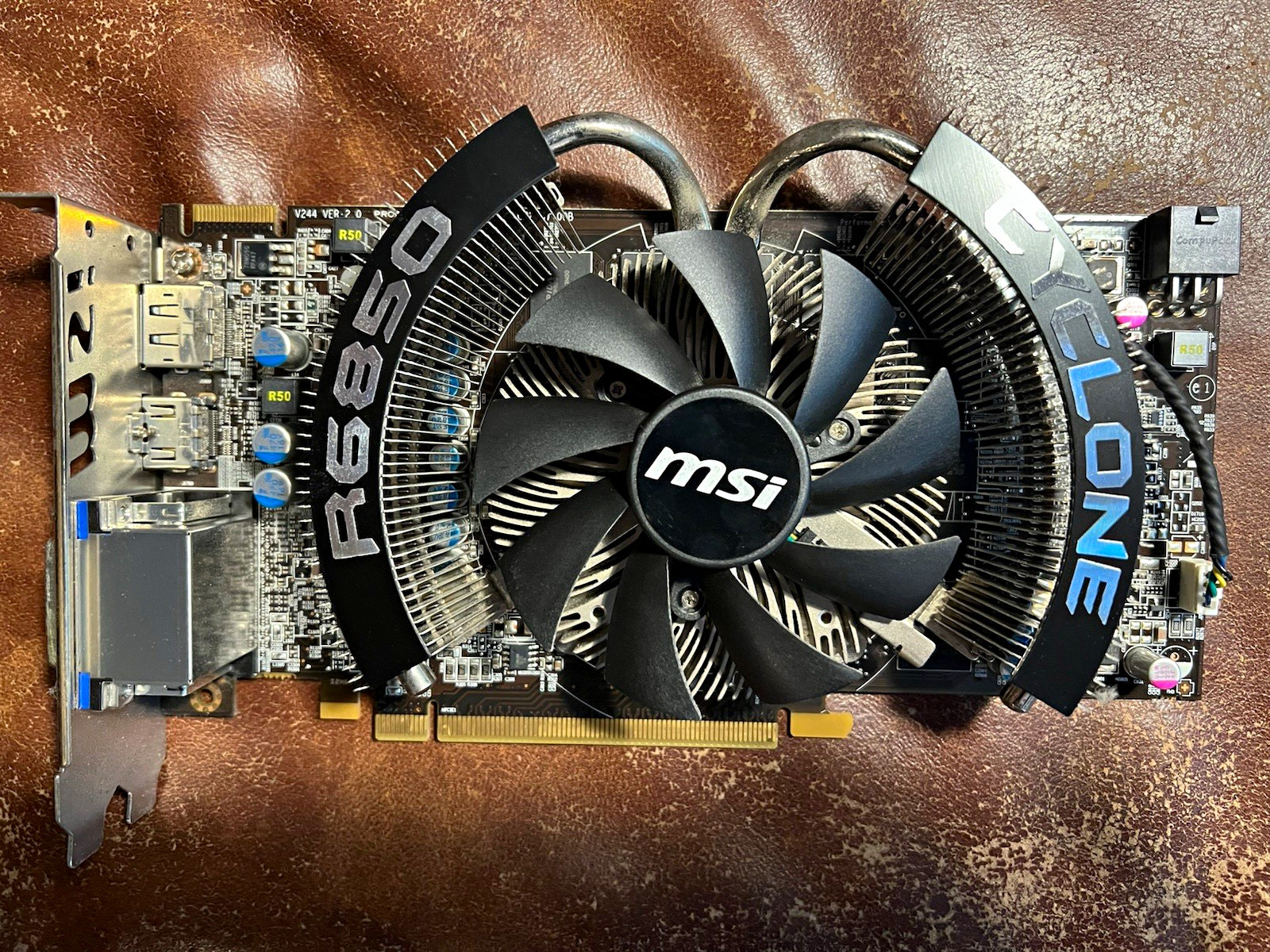

The MSI Cyclone AMD Radeon R6850 (R6850 Cyclone 1GD5 Power Edition) is a custom-cooled graphics card featuring 1GB GDDR5 memory, an 860 MHz core clock, and AMD Eyefinity multi-monitor support. It delivers reliable DirectX 11 performance, advanced thermal design, and flexible display connectivity.
Core Specifications

• GPU Chipset: AMD Radeon HD 6850 (960 Stream Processors)
• Memory: 1GB GDDR5 with a 256-bit memory bus interface
• Clock Speeds: 860 MHz core clock and 4,400 MHz effective memory clock
• Bus Interface: PCI Express 2.1 x16
• Power Requirement: Single 6-pin PCI-E power connector (127W TDP)
• Card Dimensions: 217 x 120 x 38 mm (Dual-slot form factor)

Key Features

• Cyclone Thermal Design: Utilizes a large 9cm PWM fan and nickel-plated copper base heat-pipe layout to run 14°C cooler and 5dB quieter than reference designs.
• Multi-Monitor Eyefinity: Supports up to three independent display outputs simultaneously off a single card.
• Output Connectivity: Equipped with two DVI ports (one Dual-Link DVI-I, one Single-Link DVI-D), one HDMI 1.4a port, and one DisplayPort
• Military Class II Components: Built with solid capacitors and Super Ferrite Chokes (SFC) for extended lifespan and enhanced stability during peak loads.
• MSI Afterburner Support: Fully compatible with software-based triple over-voltage tuning and fan speed adjustments.
