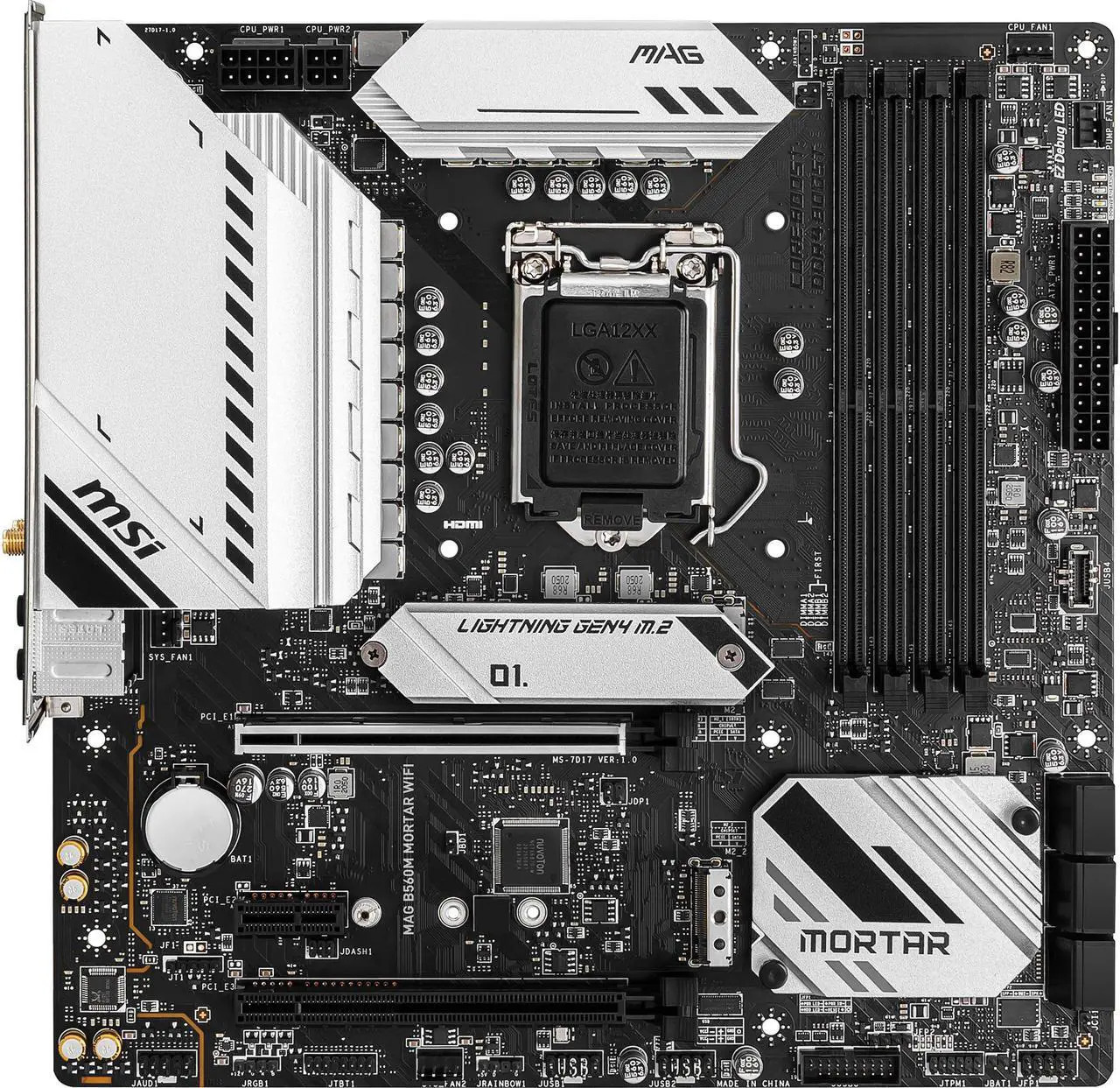

ModelBrandMSIModelMAG B560M MORTAR WIFISupported CPUCPU Socket TypeLGA 1200CPU TypeSupports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold / Celeron Processors
* Please go to intel.com for compatibility information.ChipsetsChipsetIntel B560Onboard VideoOnboard Video ChipsetSupported only by CPU with integrated graphicMemoryNumber of Memory Slots4x288pin (DDR4)Memory StandardSupports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066+
1DPC 2R Max speed up to 4600+
2DPC 1R Max speed up to 4266+
2DPC 2R Max speed up to 4000+Maximum Memory Supported128GBChannel SupportedDual ChannelExpansion SlotsPCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.PCI Express 3.0 x161 x PCI Express 3.0 x16
* PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.PCI Express x11 x PCIe 3.0 x1Storage DevicesSerial ATA (SATA)6 x SATA 6Gb/sM.22 x M.2 slots (Key M):
M2_1 slot:
Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)*
Supports 2242/2260/2280 storage devices
M2_2 slot (From B560 chipset):
Supports up to PCIe 3.0 x4
Supports 2242/2260/2280 storage devices
Intel Optane Memory Ready**
* SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.Intel Optane ReadyYesOnboard AudioAudio ChipsetRealtek ALC897Audio Channels7.1 ChannelsOnboard LANLAN ChipsetRealtek RTL8125BMax LAN Speed2.5GbpsWireless LANIntel WiFi 6E AX210
802.11 a/b/g/n/ac/axBluetoothBluetooth 5.2Rear Panel PortsBack I/O Ports1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
1 x Optical S/PDIF Out
1 x USB 3.2 Gen 2x2 Type-C
3 x USB 3.2 Gen 1
4 x USB 2.0/1.1
5 x Audio Jacks
2 x Antenna BracketInternal I/O ConnectorsOnboard USB1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x TPM module connector
1 x Tuning Controller Connector
1 x TBT connector (Supports RTD3)
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
4 x EZ Debug LEDSoftware FeatureWindows 11SupportedPhysical SpecForm FactorMicro ATXLED LightingRGBPower Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connectorFeaturesFeaturesSupports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
Audio Boost: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire Technology
