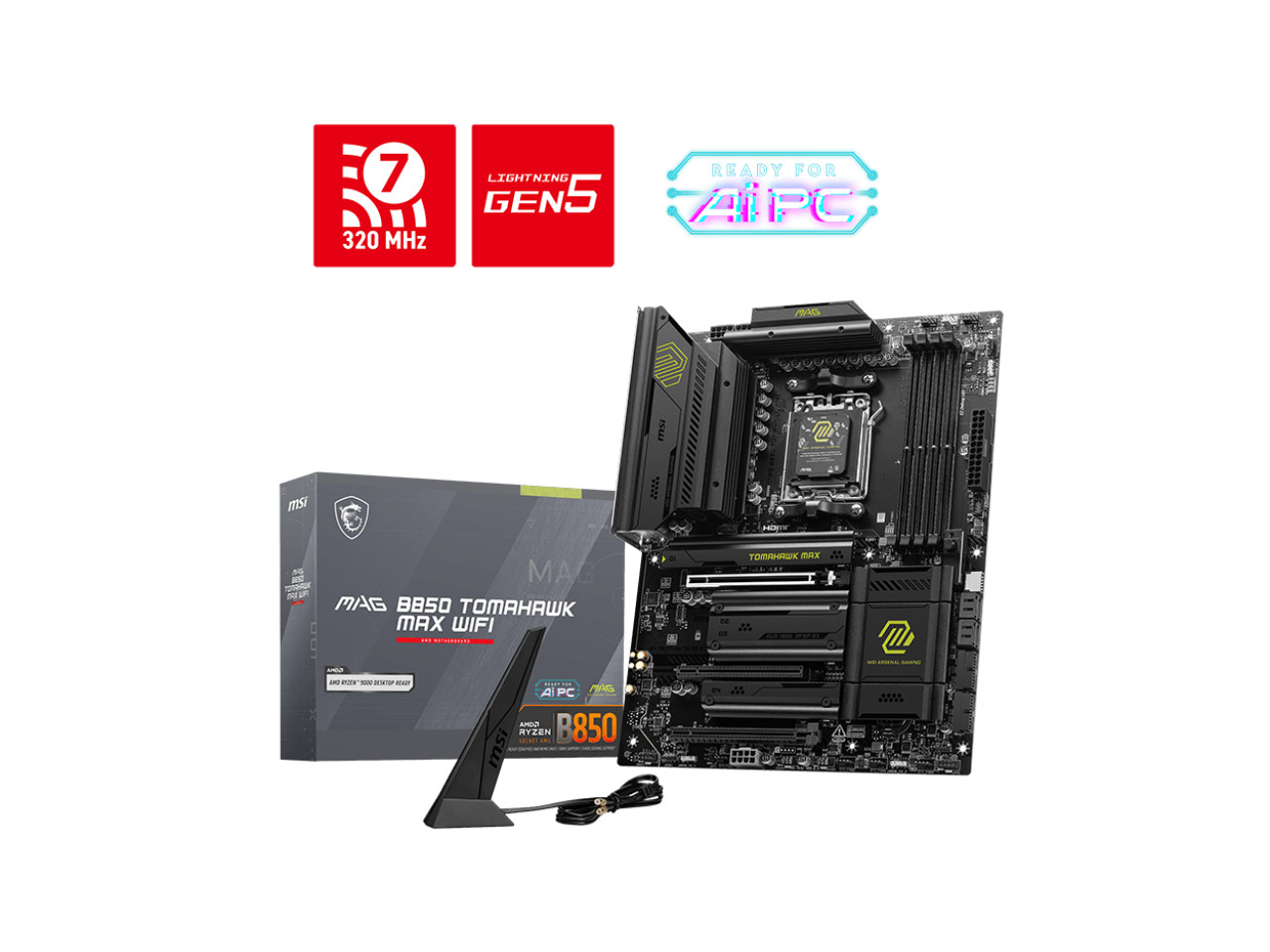

MSI MAG B850 TOMAHAWK MAX WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - ATX - Ryzen 9, Ryzen 8, Ryzen 7 Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax/be - HDMI - 4 x SATA Interfaces
Learn more about MSI MAG B850 TOMAHAWK MAX WIFIModelBrandMSIModelMAG B850 TOMAHAWK MAX WIFISupported CPUCPU Socket TypeAM5CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 SeriesChipsetsChipsetAMD B850MemoryNumber of Memory Slots4x288pin (DDR5)Memory StandardUp to DDR5 8400+ MT/s (OC)Maximum Memory Supported256GBChannel SupportedDual ChannelECC SupportedNon-ECCMemory FeatureMemory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8400+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode onlyExpansion SlotsPCI Express 5.0 x16PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI Express x4PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slotPCI Express x1PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)Storage DevicesSerial ATA (SATA)4 x SATA 6Gb/sM.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.
** Please refer to the manual for M.2 SSD heatsink restrictionsSATA RAIDSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devicesOnboard AudioAudio ChipsetRealtek ALC4080Audio Channels7.1 ChannelsOnboard LANLAN ChipsetRealtek 8126VBMax LAN Speed5GbpsWireless LANWi-Fi 802.11 beBluetoothBluetooth 5.4Rear Panel PortsBack I/O Ports1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x LAN (RJ45) / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 3.2 Gen 2 Type-A / 3 x USB 3.2 Gen 2 Type-C / 4 x USB 2.0/1.1Internal I/O ConnectorsOnboard USB4 x USB 2.0 ports
4 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C portsOther Connectors1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
6 x System Fan
1 x EZ Conn-header (JAF_2)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)Physical SpecForm FactorATXLED Lighting4 x EZ Debug LED
1 x EZ Memory Detection LEDDimensions (W x L)12.0" x 9.6"Power Pin1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)Software FeatureWindows 11Windows 11 64-bitShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
