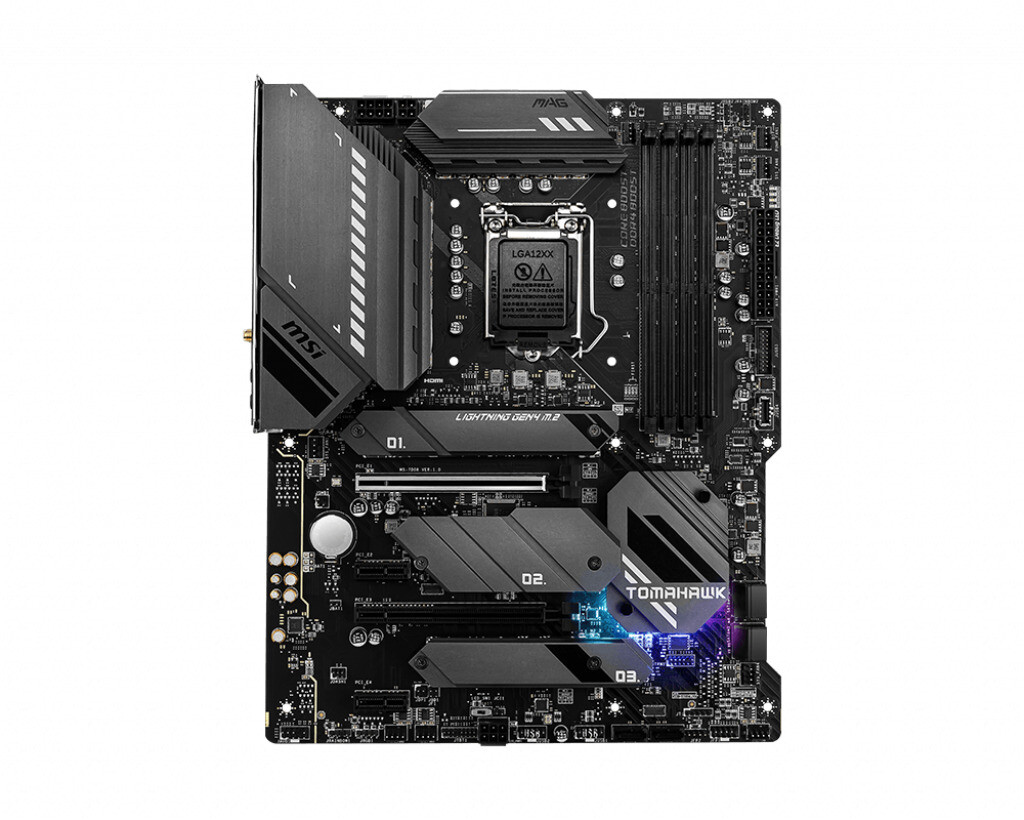

MSI MAG Z590 TOMAHAWK WIFI Motherboard Intel Z590 LGA1200 DDR4 M.2 ATX Core HDMI

CPU

Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1

Processor socket Z590 DDR4 memory slots, support up to 128GB 1

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 5333 MHz

1DPC 2R Max speed up to 4700+ MHz

2DPC 1R Max speed up to 4400+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOT

2x PCIe x16 slots

1x PCIe 3.0 x16 slot (from CPU)

Support up to PCIe 4.0 for 11th Gen Intel® CPU

Support up to PCIe 3.0 for 10th Gen Intel® CPU

PCI_E3 (From Z590 chipset)

Support up to PCIe 3.0 x4

2x PCIe 3.0 x1 slots (From Z590 2-Way AMD® CrossFire™ Technology

ONBOARD GRAPHICS

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1 / 2

Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU SATA 6Gb/s ports (From Z590 chipset) 1

3x M.2 slots (Key M)

M2_1 slot (From CPU)

Available only on 11th Gen Intel® CPU

Supports up to PCIe 4.0 x4

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_21 & M2_3 2 slot (From Z590 chipset)

Supports up to PCIe 3.0 x4

Supports SATA up to 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Intel® Optane™ Memory Ready 3

Supports Intel® Smart Response Technology for Intel Core™ processors

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 PCIe storage Z590 Chipset

1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)

6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)

1x USB 2.0 Type-A port on the back panel

Hub-GL850G

5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal ALC4080 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

WIRELESS LAN & BLUETOOTH®

1x Intel® Wi-Fi 6E AX210

1x Intel® The Wireless module is pre-installed in the M.2 (Key-E slot)

Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2, FIPS, FISMA

INTERNAL CONNECTORS

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

1x 6-pin PCIE power connector

6x SATA 6Gb/s connectors

3x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x TPM module connector

1x Clear CMOS jumper

1x TBT connector (supports RTD3)

1x Tuning Controller connector

BACK PANEL PORTS

DisplayPort

USB 2.0

USB 3.2 Gen 1 5Gbps Type-A

2.5G LAN Port

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

HDMI

Flash BIOS Button

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2 10Gbps Type-A

USB 3.2 Gen 2x2 20Gbps Type-C

Optical S/PDIF Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

OPERATING SYSTEM

Support for Windows® 10 64-bit

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.


• The above pictures are for reference only, please refer to the actual product received.

• Free shipping :Usually To all countrieswill be shipped via AIR MAIL ,not expedited shipping.
• All items will be shipped in 1-2 business days (excluding Sat,Sun & Holiday) after payment received and cleared. For the long-time holiday, we'll post the info on our store and reply you automatically via emails.
• Tax depends on each country custom.The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility
• We can not mark item as "gift", since your country customs and international customs regulations prohibit such behavior,thank you for your understanding.

• if you don't receive items over 30 business days,Read the shipping details first to determine the expected delivery time , if your items has not arrived within that time (weekends and holidays were not included)
  please make sure to contact us before leaving any neutral or negative responses.We'll try our best to help you solve the problem.

• If you want to get it fast(3-6 days ship),Please choose expedited shipping,It must add 20USD-40USD shipping fee (according to your country),Because it 's not free shipping.

7-15 days

15-20 days

20-25 days

25-30 days

30-35 days

35-40 days

• Return policy:

  Customer should make initial contact in 7 days from receiving the order. Products must be returned in original condition.. When you shipped back, please give us tracking number. We get the return package,We'll refund your money, as soon as got the returned.

• Replace policy:

  Replace can be accepted in 90 days after you signed for the package. Please send back the item in original package, need not return any accessories. When you shipped back, please give us the tracking number. We'll resend another the item to you, as soon as we got the returned package.

• Please contact us before returning items and we will provide the shipping address. DO NOT send without communication
• Both shipping cost: The cost of item shipping back is buyer's responsibility, the resend shipping cost is seller's.
• Any products returned without our serial number and QC badge will be rejected as not our parts do not return Please,Any packages that are send without our knowledge will be refused and no replacements will be issued.
• All items are sold with 90 days warranty unless otherwise stated in the are committed to your 100% customer satisfaction.
• If you have problems, Please do hesitate to contact us at first time. We will reply you any question within 24 hours and try to gurantee you before you leave response.
• Please give us 5 stars rating postive response if you are satisfied with the product.
• Your 5 stars evaluation is important to us.
