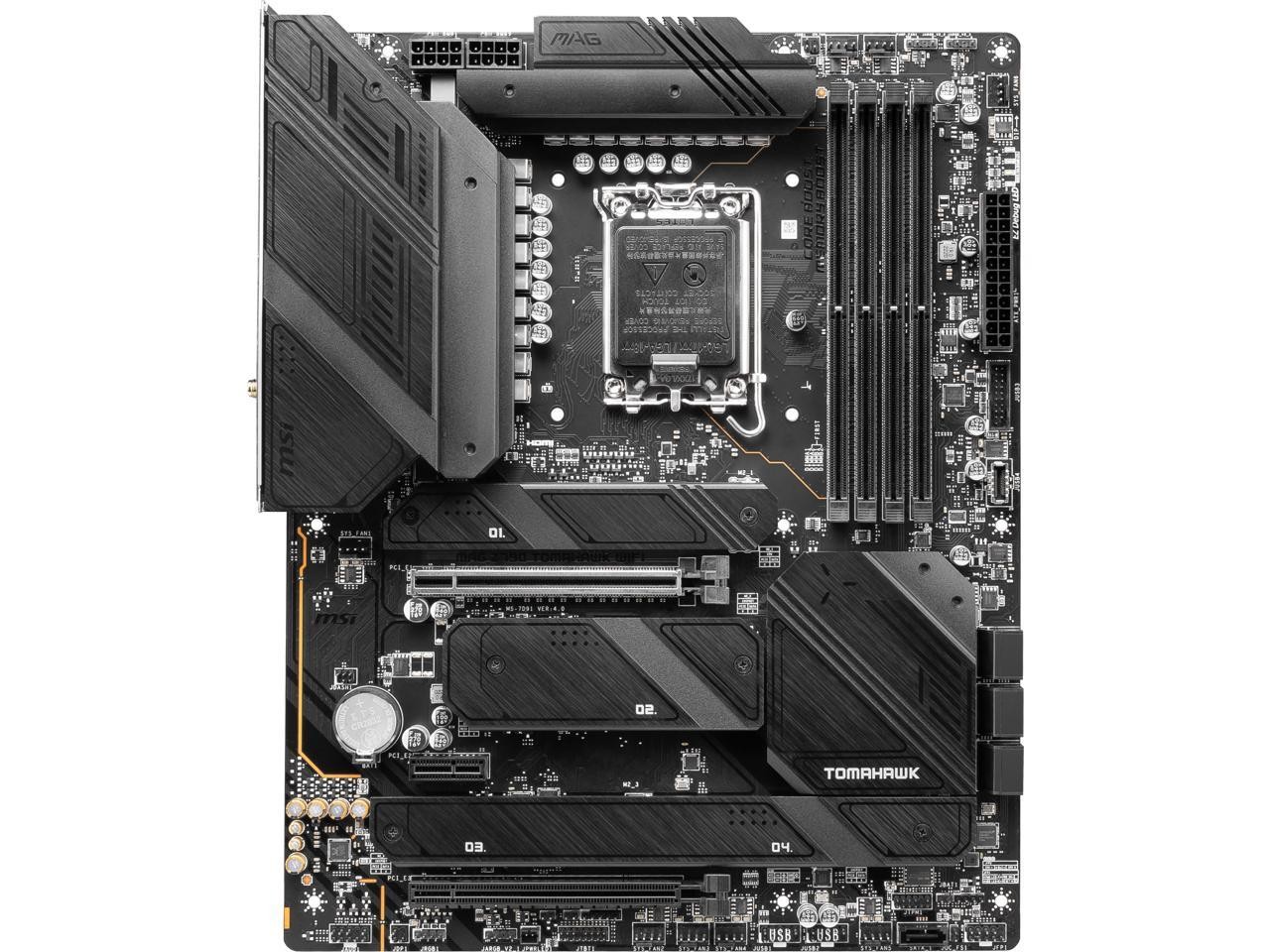

MSI MAG MAG Z790 TOMAHAWK Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX (magz790tomahawkwifi) MSI MAG MAG Z790 TOMAHAWK Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX (magz790tomahawkwifi)Package Contents: MAG Z790 TOMAHAWK Gaming Desktop Motherboard Wi-fi Antenna 2 x Sata Cables EZ M.2 Clip Cable Stickers Quick Installation Guide European Union Regulatory Notice USB Drive

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

MAG Z790 TOMAHAWK WIFI

Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

Supports DDR5 Memory, up to 7200+(OC) MHz

Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Fast Game experience: PCIe 5.0 slot, Gen 4 x4 M.2, USB 3.2 Gen 2x2

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material CHIPSET
INTEL Z790 CPU
Support Intel CoreTM 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors MEMORY
4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7200+ MHz
1DPC 2R Max speed up to 6600+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory ONBOARD GRAPHICS
1x HDMITM
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz
- Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. SLOT
2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) STORAGE
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
7x SATA 6G RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
- SATA_A1_A2 do not support RAID function. USB
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear) LAN
Intel 2.5Gbps LAN WIRELESS LAN and BLUETOOTH
Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
- Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
- Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. AUDIO
Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel INTERNAL IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports LED FEATURE
4x EZ Debug LED BACK PANEL PORTS
DisplayPort 1.4
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port,
HD Audio Connectors
HDMITM 2.1 Port
Clear CMOS Button
Flash BIOS Button
USB 3.2 Gen 2 10Gbps Type-C
USB 3.2 Gen 2x2 20Gbps Type-C
Wi-Fi / Bluetooth Antenna
Optical S/PDIF OUT OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit PCB INFO
ATX
243.84mmx304.8mmItem Dimension (L inchxW inchxH inch)
14 x 11 x 3

Weight
5.00 lb

Warranty Information
3 years SpecificationPhysical CharacteristicsForm Warranty3 YearI/O ExpansionsNumber of PCI Express x1 Slots1Total Number of Expansion Slots3PCI Express Standard

• PCI Express 3.0
• PCI Express 5.0
• PCI Express 4.0

Number of PCI Express x16 Slots2Total Number of PCI Express Slots3MemoryMemory TechnologyDDR5 SDRAMNumber of Memory Slots4Memory Speed Supported

• 7600 MHz
• 7400 MHz
• 7200 MHz
• 7000 MHz
• 6800 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5800 MHz
• 5600 MHz
• 5400 MHz
• 5200 MHz
• 5000 MHz
• 4800 MHz

Memory Form FactorDIMMMaximum Memory Supported128 GBGeneral InformationBrand NameMSIMarketing Information The MAG Z790 Tomahawk fights alongside gamers in pursuit of honor as the motherboard platform of choice for gamers. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. Product TypeGaming Desktop MotherboardProduct NameMAG Z790 TOMAHAWK Gaming Desktop MotherboardManufacturerMSIManufacturer Part NumberZ790TOMWIProduct ModelMAG Z790 TOMAHAWKProduct LineMAGTitleProduct TitleMSI MAG MAG Z790 TOMAHAWK Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX (MAGZ790TOMAHAWKWIFI)Processor & ChipsetChipset ManufacturerIntelProcessor Generation Supported

• 13th Gen
• 12th Gen

Processor Supported

• Pentium Processor Supported1Processor SocketSocket LGA-1700Chipset ModelZ790Onboard InterfacesTotal Number of Onboard USB Ports7Number of M.2 Interfaces4Number of Onboard USB 2.0 Ports4Interfaces/PortsNumber of USB 3.2 Gen 2 Type-A Ports4S/PDIFYesHDMI Version 2.1 Number of USB 3.2 Gen 2 Type-C Ports1DisplayPortYesNumber of eSATA Ports7HDMIYesTotal Number of USB Ports10Number of USB 3.2 Gen 1 Type-A Ports4Number of Network (RJ-45) Ports1I/O ControllerRAID SupportedYesController TypeSerial ATA/600RAID Levels
