Why bought from us?
Dear customers, if you read our this page, please continue to have a glance at me, I think you will be glad to select our items. We test the motherboard, check the BIOS, enter to window OS, run CPU-Z and 3DMark, to ensure all the parts no defect or DOA. You can buy it at ease.
About the package:
We'll seal combo parts in an anti-electrostatic plastic bag with anti-blushing agent, then put it into a safe box.
About the warranty:
Our parts have 90 days warranty, please note the following reason we don't accept returns:
A. Bought a wrong item.
B. Ruin the item on purpose.
C. The parts burned by technical mistake when assemble the PC.
D. The parts didn't buy from us. All our parts have warranty label and hidden marks on them, to distinguish our items from others'.
Technical Tips:A.Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C. If the motherboard can't run correctly, please first check your CPUwhethercan be compatible with our motherboard, then check your video card orpower supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.(Please view the following picture)Packet Included:

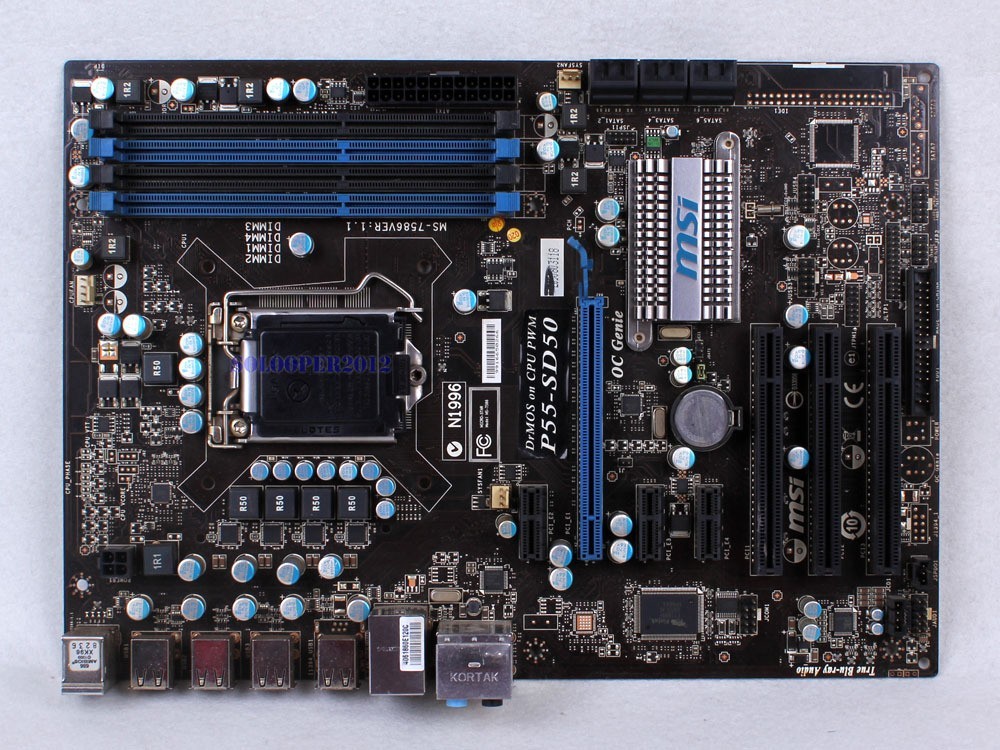

1 x motherboard
1 x I/O back panel
2 x generic SATA II cablesParts Specification:
CPU
• Supports Intel® i5 / i7 based processors in LGA1156 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® P55 Chipset
-Supports QPI up to 6.4GT/s
- Hi-Speed USB (USB2.0) controller, 480Mb/sec.
-6 SATAIIports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- Serial ATA RAID 0/1/5/10.
- Integrated AHCI controller.
Main Memory
• Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600*/1800*/2000*/2133* (OC)DRAM, 16GB Max
- Supports 1Gb/ 2Gb/ 4Gb DRAM size
- SupportsDual channel mode
Slots
•1 PCI Express gen2 x16 slots
•3 PCI Express gen2 x1 slots
•3 PCI slots, support 3.3V/ 5V PCI bus Interface
On-Board IDE/SATA
• One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 363.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.
• SATAII controller integrated in Intel P55/JMicron®363 chipset
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports by P55
- SupportstwoSATAII ports by JMicron 363, support SATA RAID 0/1/JBOD.
- Supports AHCI controller with AHCI / SATA RAID 0/1/5/10 by P55.
Audio
• Chipset integrated by Realtek® ALC889
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec
LAN
• SupportsPCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111DL.
Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU / System x4 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
-2 x USB 2.0 connectors
-8 x Serial ATAII connectors
- 1 x ATA133 connector
- 1 x Parallel port connector
- 1 x Serial port connector
- 1 x Power Button
- 1 x Clear CMOS jumper
-1 x SPDIF-out connector
- 1 x TPM module connector
- 1 x OC Genie Button
-2 x Base Clock Control Buttons
Back Panel I/O Ports
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
-10 x USB 2.0 ports
-1 x RJ45 LAN Jacks
- 1 x 6 in 1 audio jack
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
• 30.5cm(L) x 21.5cm(W) ATX Form Factor
Mounting
•6 mounting holes.
Shipping:
Economy:
Country Agent Estimate time USA Epacket Shipping 8-15 business days Canada,Australia,New Zealand Economy Shipping 10-20 business days UK,Germany,France Economy Shipping 10-25 business days Other Europe Country Economy Shipping 10-25 business days Other Country Economy Shipping 10-25 business days
Agent Estimate time Expedited : Country USA Expedited Shipping 3-5 business days Canada,Australia,New Zealand Expedited Shipping 3-7 business days UK,Germany,France Expedited Shipping 3-6 business days Other Europe Country Expedited Shipping 3-6 business days Other Country Expedited Shipping 4-8 business days
Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
Thank you for watching
