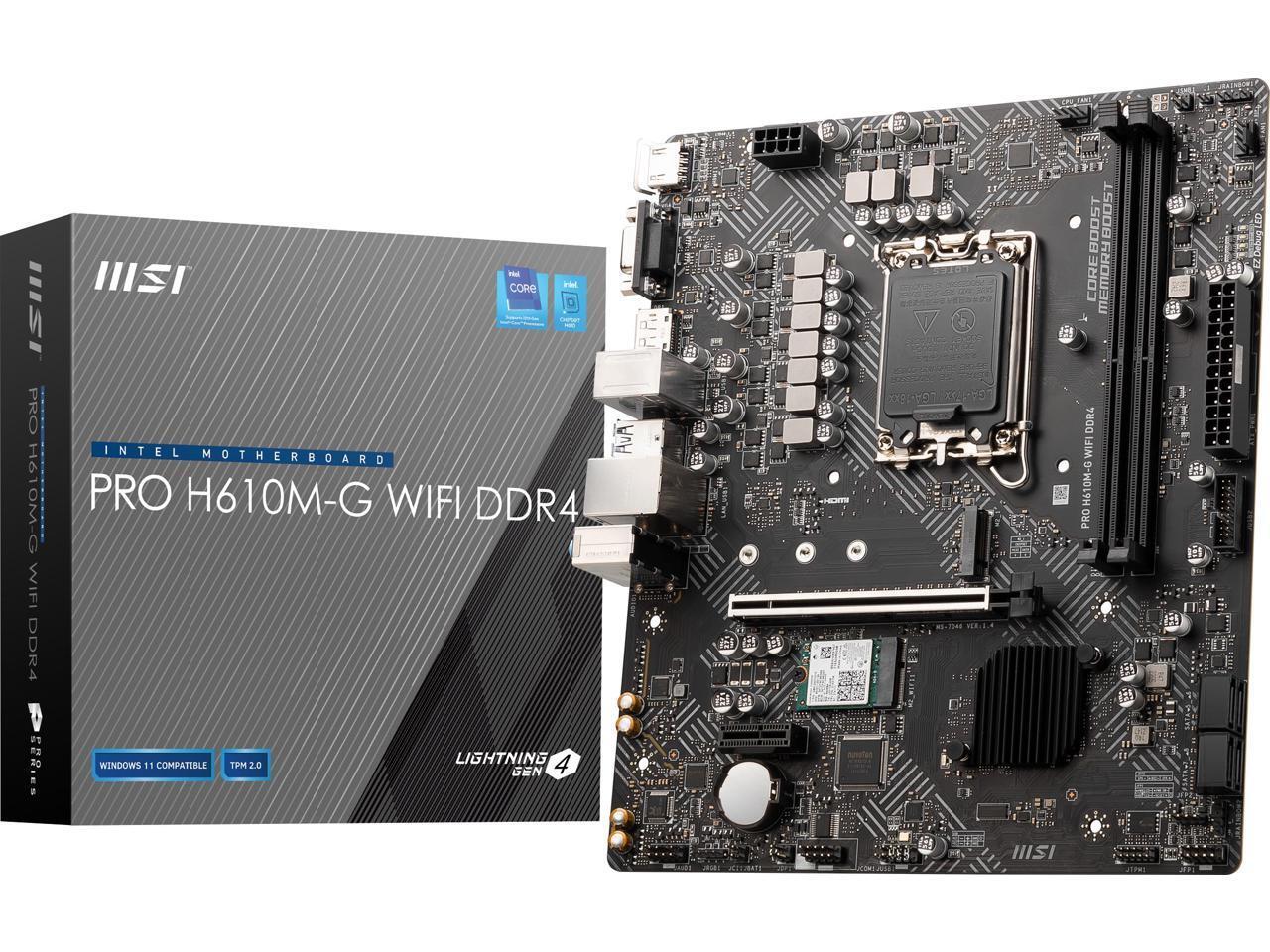

Learn more about MSI PRO H610M-G WIFI DDR4ModelBrandMSISeriesPROModelPRO H610M-G WIFI DDR4Supported CPUCPU Socket TypeLGA 1700CPU TypeSupports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* Please go to www.msi.com to get the newest support status as new processors are releasedChipsetsChipsetIntel H610MemoryNumber of Memory Slots2x288pin (DDR4)Memory StandardSupports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)Maximum Memory Supported64GBChannel SupportedDual ChannelMemory FeatureSupports non-ECC, un-buffered memory
* Please refer to www.msi.com for more information on compatible memoryExpansion SlotsPCI Express 4.0 x161 x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16PCI Express x11 x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1Storage DevicesSATA 6Gb/s4 x SATA 6Gb/s ports (From H610 chipset)*
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slotM.21 x M.2 slot (Key M, from H610 chipset)*
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slotOnboard AudioAudio ChipsetRealtek ALC897Audio Channels7.1-Channel High Definition AudioOnboard LANSecond LAN ChipsetIntel I219Max LAN Speed1GbpsWireless LANIntel Dual Band Wireless-AC 3168
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE,4.2Rear Panel PortsBack I/O Ports1 x HDMI port
1 x VGA port
1 x DisplayPort port
1 x PS/2 keyboard/ mouse combo port
4 x USB 2.0 Type-A ports (From H610 chipset)
2 x USB 3.2 Gen 1 5Gbps Type-A ports (From H610 chipset)
1 x LAN (RJ45) jack
3 x audio jacksInternal I/O ConnectorsOnboard USB1 x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports1 x USB 2.0 connector (From H610 chipset)
Supports additional 2 USB 2.0 portsOther Connectors1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Clear CMOS jumper
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
4 x EZ Debug LEDPhysical SpecForm FactorMicro ATXDimensions (W x L)9.6" x 8.3" (24.4 cm x 21.1 cm)Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectorWindows CompatibilityWindows 11SupportedFeaturesFeaturesMSI Center Features
- Mystic Light
- User Scenario
- Hardware Monitor
- Frozr AI Cooling
- True Color
- Live Update
- Speed Up
- Super ChargerAudio
- Audio BoostLED
- Mystic Light Extension (RAINBOW/RGB)
- Mystic Light SYNC
- Ambient Devices Support
- EZ DEBUG LEDPerformance
- Memory Boost
- Core Boost
- Lightning Gen 4 PCI-E SlotProtection
- PCI-E Steel ArmorExperience
- Click BIOS 5
- EZ M.2 Clip
- CPU Cooler TuningShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
