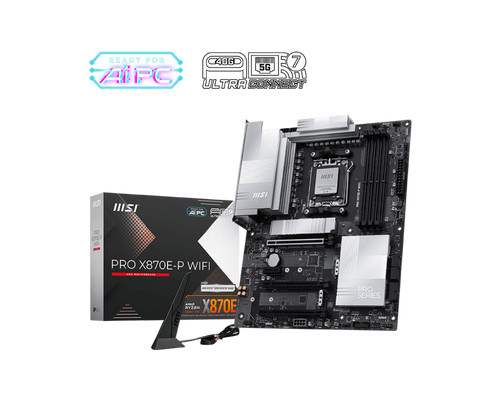

MSI PRO X870E-P WIFI Motherboard AM5 DDR5 UDIMM 4 SATA 6G Realtek® ALC897
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
MSI PRO X870E-P WIFI Motherboard AM5 DDR5 UDIMM 4 SATA 6G Realtek® ALC897
Price: IL $340.90
MSI PRO X870E-P WIFI Motherboard AM5 DDR5 UDIMM 4 SATA 6G Realtek® Support:AMD Ryzen™ 9000 / 8000 / 7000 Series

  • Memory Support:DDR5 Dual Channel, DDR5 8200+ MT/s speeds (in OC mode)

  • Ultra-high performance:14+2+1 Duet Rail power delivery system, dual 8-pin CPU power connectors, Core Boost and Memory Boost technologies, 8-layer PCB with 2oz thick copper and server-grade material

  • Frozr Guard Cooling System:Extended heatsink, 7W/mK MOSFET thermal pads, additional coil thermal pads, and EZ M.2 Shield Frozr II – all designed for a high-performance system and a seamless user experience

  • EZ DIY Installation Convenience:EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna for quick and easy installation

  • Ultra-fast gaming experience:PCIe 5.0 slot and Lightning Gen 5 x4 M.2 storage connection

  • Advanced Connectivity – USB4 and 5G LAN with Wi-Fi 7:An advanced solution for professional and multimedia use, ensuring a stable, secure and fast network

  • Audio Boost: Studio-level sound quality for an ultra-immersive gaming experience

    • SKU
    • modelPRO X870E-P WIFI
    Processor support
    • Processor supportSupports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
    • chassisSocket AM5
    Chipset
    • ChipsetChipset AMD X870E
    Memory
    • Memory support4x DDR5 UDIMM, Dual Channel
    • Maximum memory256GB DDR5
    • Free slots4
    Connections
    • HDMI1 HDMI 2.1 + 1 USB4 Type-C DisplayPort
    • D-SUB0
    • PCI-E X163× PCI-E x16 (PCIe 5.0 / PCIe 4.0)
    • PCI-E X11× PCI-E x1 (PCIe 3.0)
    • TPM-HEADERTPM 2.0 Header
    • FrontFront: 6×USB 2.0, 4×USB 5Gbps Type A, 1×USB 10Gbps Type C
    • RearRear: USB 40Gbps Type-C, USB 20Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Type-A, USB 2.0, HDMI, LAN 5G, Wi-Fi/BT, Audio, Clear CMOS, Flash BIOS
    Expansion slots
    • Expansion slotsPCIe 5.0 x16 / PCIe 4.0 x4 / PCIe 3.0 x1 depending on processor
    storage
    • m.23
    • SATA4 SATA 6G
    Disk Management
    • RAID supportRAID 0/1/10 support for SATA + RAID 0/1/5 for M.2 NVMe
    communication
    • LANRealtek® 8126VB 5G LAN
    • wifi + BTWi-Fi 7 + Bluetooth® 5.4
    Audio
    • AudioRealtek® ALC897 – HD 7.1
    video
    • AMD® supportSupports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors Socket AM5
    Special
    • Cooling-
    • Special functions4x EZ Debug LED + EZ Memory Detection LED
