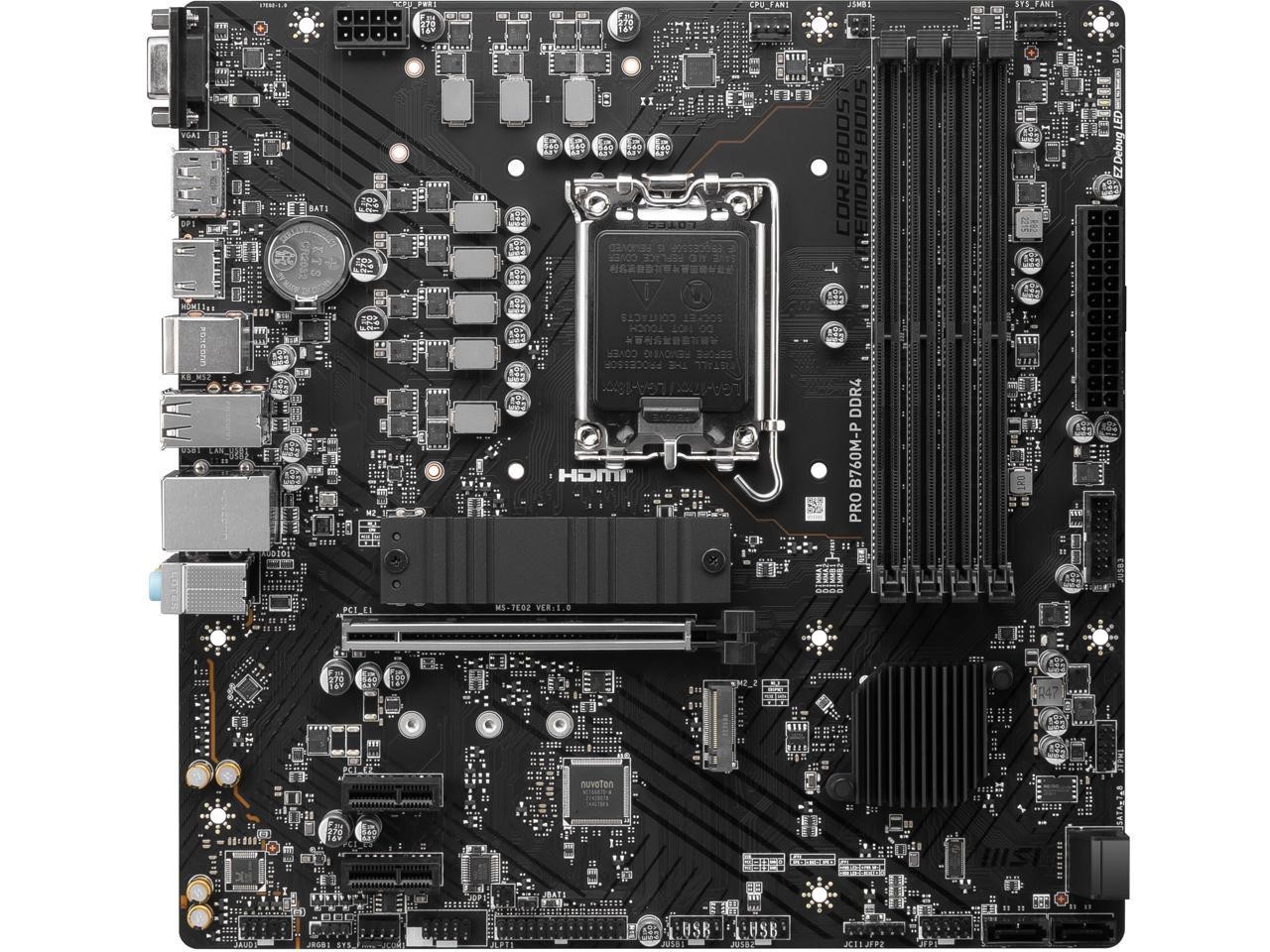

MSI Pro PRO B760M-P DDR4 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Mini ATX (prob760m-pddr4) MSI Pro PRO B760M-P DDR4 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Mini ATX (prob760m-pddr4)Package Contents: PRO B760M-P DDR4 Gaming Desktop Motherboard European Union Regulatory Notice Quick Installation Guide 2 x m.2 screw/standoff sets sata cable i/o shield

Brand Compatibility: Intel

Product Description

This item is brand-new, factory sealed.

PRO B760M-P DDR4

Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Fast Experience: PCIe 4.0, Gen4 x4 M.2 with M.2 Shield Frozr

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strengthCHIPSET
INTEL B760CPU SUPPORT
Supports 12th/13th Gen Intel CoreTM Processors, Pentium Gold and Celeron Processors
LGA 1700MEMORY
4x DDR4, Maximum Memory Capacity 128GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)ONBOARD GRAPHICS
1x HDMITM
Support HDMITM 1.4, maximum resolution of 4K 30HzNote
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60HzNote
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
(NoteAvailable only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.)EXPANSION SLOT
1x PCI-E x16 slot
2x PCI-E x1 slot
PCI SlotE1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI SlotE2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI SlotE3 Gen PCIe 4.0 supports up to x1 (From Chipset)STORAGE
2x M.2
M.2 Slot1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
M.2 Slot2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
(SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.)RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type C (Rear)LAN
Realtek RTL8111H Gigabit LANAUDIO
Realtek ALC897 Codec
7.1-Channel High Definition AudioINTERNAL I/O
1x Power Connector(ATX PWR)
1x Power Connector(CPU PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A portsLED FEATURE
4x EZ Debug LEDBACK PANEL PORTS
VGA
DisplayPort
HDMITM
Keyboard / Mouse
USB 2.0
LAN port
Audio Connectors
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bitPCB DIMENSION
mATXItem Dimension (L inchxW inchxH inch)
11 x 11 x 4

Weight
4 lbs

Warranty Information
3 Years SpecificationPhysical CharacteristicsForm FactorMini ATXWidth9.6"Depth9.6"I/O ExpansionsNumber of PCI Express x1 Slots2Total Number of Expansion Slots3PCI Express StandardPCI Express 4.0Number of PCI Express x16 Slots1Total Number of PCI Express Slots3MemoryMemory TechnologyDDR4 SDRAMNumber of Memory Slots4Memory Speed Supported

• 4800 MHz
• 4600 MHz
• 4400 MHz
• 4266 MHz
• 4200 MHz
• 4000 MHz
• 3800 MHz
• 3733 MHz
• 3600 MHz
• 3466 MHz
• 3400 MHz
• 3333 MHz
• 3200 MHz
• 2933 MHz
• 2666 MHz
• 2400 MHz
• 2133 MHz

Memory Form Factor

• 13th Gen
• 12th Gen

Processor Supported

Total Processor Supported1Processor SocketSocket LGA-1700Chipset ModelB760Technical InformationAI-poweredYesOnboard InterfacesNumber of SATA Interfaces4Total Number of Onboard USB Ports6Number of M.2 Interfaces2Number of Onboard USB 2.0 Ports4Interfaces/PortsVGAYesHDMI Version 2.1 Number of USB 3.2 Gen 2 Type-C Ports1DisplayPortYesHDMIYesNumber of USB 2.0 Ports4Total Number of USB Ports6Number of USB 3.2 Gen 1 Type-A Ports1Number of Network (RJ-45) Ports1I/O ControllerRAID SupportedYesController TypeSerial ATA/600RAID Levels
