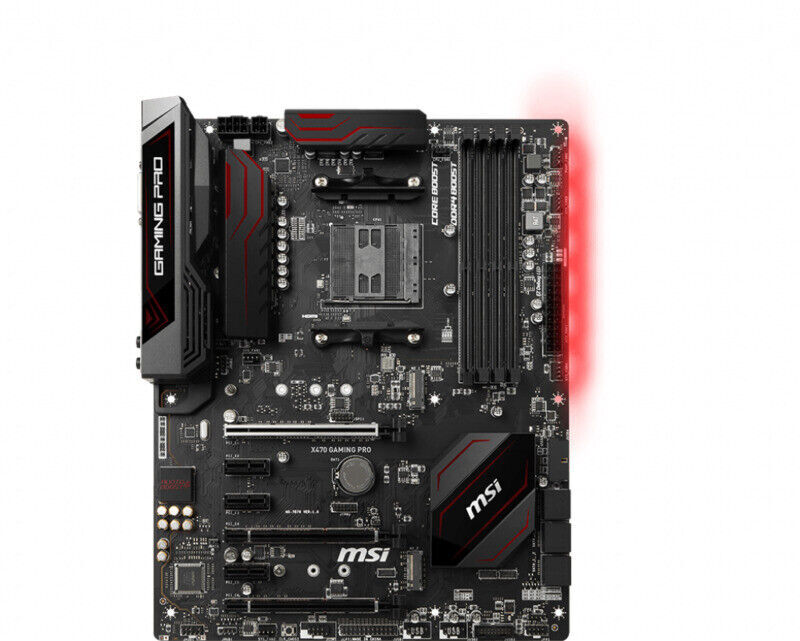

MSI X470 GAMING PRO Motherboard Socket AM4 AMD X470 M.2 DDR4 ATX DVI-D USB 2.0

CPU

1st and 2nd Gen AMD® Ryzen™/Ryzen™ Processors with Radeon™ Vega Graphics and AMD® A-Series/Athlon™ Processors that support AM4 pins

Chipset

AMD® X470 Chipset

RAM

4 DDR4 memory slots, up to 64GB total capacity

Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz via JEDEC, 2667/ 2800/ 2933/ 3000/ 3066/3200/ 3466 Mhz via A-XMP OC mode

Dual-channel memory architecture

Support for non-ECC UDIMM memory

Supports ECC UDIMM memory

Series/Athlon™ processors support up to 2400 MHz. The supported frequency of memory varies depending on the installed processor.

Expansion slot

2 PCIe 3.0 x16 slots (PCIE_1, PCIE_4)

Ryzen™ desktop processors support x16/x0, x8/x8 modes

Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors Support x8 / x0 Mode

1 PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1

3 PCIe 2.0 x1 slots

The PCI_E6 slot will not be available when an M.2 PCIe SSD is installed in the M2_2 slot.

Support multiple graphics cards

Ryzen™ Desktop Processors

Supports 3-Way AMD® CrossFire™ Technology

Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors

Supports 2-Way AMD® CrossFire™ Technology

Storage

AMD® X470 Chipset

6 SATA 6Gb/s ports

2x M.2 ports (Key M)1

M2_1 socket (from AMD® processors) supports PCIe 3.0 x4 (Ryzen™ desktop processors) or PCIe 3.0 x2 (A-series/ Athlon™ processors) 2242/ 2260 /2280/ 22110 form factor storage devices

M2_2 slot (from AMD® X470 chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 format storage devices

When a SATA M.2 SSD is installed in the M2_2 slot, the SATA1 interface will not be available. The PCI_E6 slot will not be available when the M2_2 slot is populated with a PCIe M.2 SSD.

RAID

AMD® X470 Chipset

Provides SATA storage devices supporting RAID 0, RAID 1 and RAID 10

Onboard graphics card

1 DVI-D port, supports up to 1920x1200@60Hz1

1x HDMI™ port 1.4, supports up to 4096x2160@30Hz1

Supports a maximum shared memory of 2048 MB only when using Ryzen™ desktop processors with Radeon Vega graphics and A-series/Athlon™ processors

USB

ASMedia® ASM1143 Chipset

2 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on back panel

AMD® X470 Chipset

4 USB 3.1 Gen1 (SuperSpeed USB) ports via onboard USB ports

6 USB 2.0 (High-speed USB) ports (2 Type-A ports on back panel, 4 ports via onboard USB ports)

AMD® CPUs

4 USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on back panel

Sound effect

Realtek® ALC892 decoder chip

7.1-channel high-quality sound

Support S/PDIF output

The internet

1 Realtek® 8111H Gigabit NIC

Built-in interface

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

6 SATA 6Gb/s ports

2 USB 2.0 ports (additional 4 USB 2.0 ports can be supported)

2 USB 3.1 Gen1 ports (can support 4 additional USB 3.1 Gen1 ports)

1 x 4-pin CPU fan connector

1 x 4-pin Pump fan connector (up to 2A)

Four 4-pin system fan headers

1 serial interface

1 parallel interface

2 5050 RGB LED strip 12V connectors

1 TPM module interface

1 panel audio interface

2 system panel connectors

1 chassis opening port

1 clear CMOS function jumper

1 clear CMOS button

Backplane interface

PS/2 keyboard/mouse port

USB 3.1 Gen1

LAN Port

HD audio interface

USB 2.0 interface

DVI-D interface

HDMI interface

USB 3.1 Gen1

USB 3.1 Gen2

Optical S/PDIF output interface

Form Factor

ATX ; 12 x 9.6 inches (30.5 x 24.4 cm)

Mounting hole

9 mounting holes

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.


• Free shipping :Usually To all countries will be shipped via AIR MAIL ,not expedited shipping.
• All items will be shipped in 1-2 business days (excluding Sat,Sun & Holiday) after payment received and cleared. For the long-time holiday, we'll post the info on our store and reply you automatically via emails.
• Tax depends on each country custom.The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility
• We can not mark item as "gift", since your country customs and international customs regulations prohibit such behavior,thank you for your understanding.

• if you don't receive items over 30 business days,Read the shipping details first to determine the expected delivery time , if your items has notarrived within that time (weekends and holidays were not included)
  please make sure to contact us before leaving any neutral or negative responses.We'll try our best to help you solve the problem.

• If you want to get it fast(3-6 days ship),Please choose expedited shipping,It must add 20USD-40USD shipping fee (according to your country),Because it 's not free shipping.

Country

Shipper

Estimate time(free shipping)

7-15days

15-20 days

20-25 days

25-30 days

30-35 days

35-40 days

>40 days

USA

Economy style="text-align: center">

Economy style="text-indent: style="text-align: us

• Before and after receiving, if you have any questions about the order or item, please contact us via Message（Or find your order and click contact seller）.
  When we receive the e-mail, we will reply in time. Please make sure via the message we can contact you.


• Return policy:

  Customer should make initial contact in 7 days from receiving the order. Products must be returned in original condition.. When you shipped back, please give us tracking number. We get the return package,We'll refund your money, as soon as got the returned.

• Replace policy:

  Replace can be accepted in 90 days after you signed for the package. Please send back the item in original package, need not return any accessories. When you shipped back, please give us the tracking number. We'll resend another the item to you, as soon as we got the returned package.

• Please contact us before returning items and we will provide the shipping address. DO NOT send without communication
• Both shipping cost: The cost of item shipping back is buyer's responsibility, the resend shipping cost is seller's.
• Any products returned without our serial number and QC badge will be rejected as not our parts do not return Please,Any packages that are send without our knowledge will be refused and no replacements will be issued.
• All items are sold with 60 days warranty unless otherwise stated in the sale.

• Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.

• Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.

Your satisfaction is our pursuit. Welcome to our shop and thank you for buying our products.

Enjoy your shopping！
