1. Basic Information

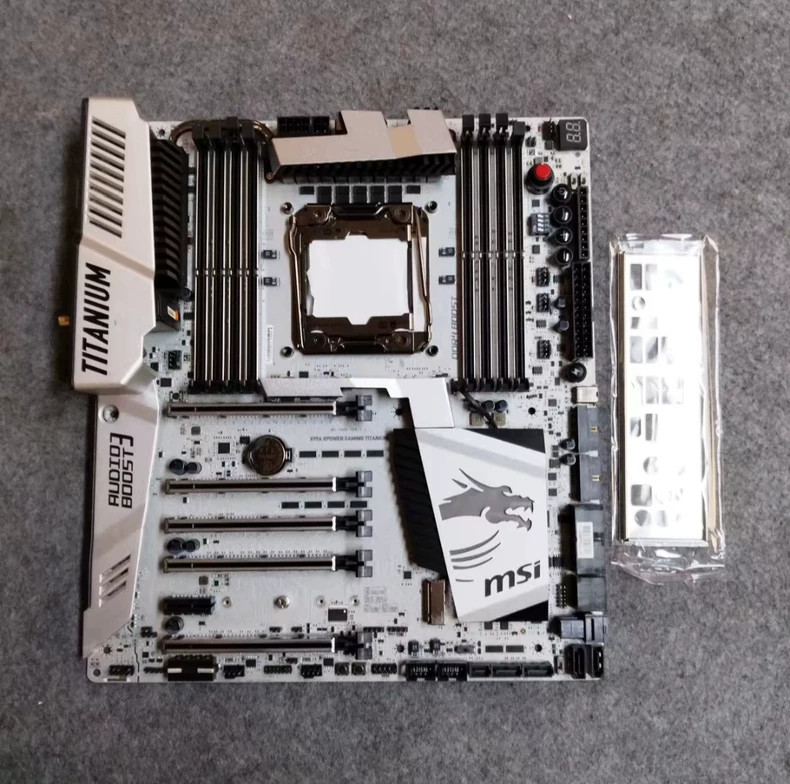

• Model: MSI X99A XPOWER GAMING TITANIUM (Flagship Titanium Gaming)
• Platform: Intel X99 Chipset, LGA2011-V3 Socket EATX Flagship Workstation/Gaming Motherboard
• Usage: Enthusiast overclocking, multi-GPU rendering, professional workstation, high-end gaming streaming; fully compatible with all LGA2011-V3 CPUs (i7-5800X/5960X, Xeon E5 V3/V4, etc.)
• Form Factor: EATX (Extended ATX, 305×264mm), fits full-tower/mid-tower flagship chassis
• Condition: Fully tested, all functions working perfectly, no faults, ready for assembly, flagship stability

2. CPU Support (Full LGA2011-V3 Compatibility)

• Socket: LGA2011-V3 (Socket R), titanium-reinforced Turbo Socket
• Supported CPUs:
  • Core i7: 5800X, 5960X, 5930K, 5820K, full series
  • Xeon E5: 2600 V3/V4, 1600 V3/V4, workstation CPUs
  • Others: i5-5600X, all LGA2011-V3 socket CPUs
• Overclocking: Full series OC supported, GAME Boost one-click OC, Ti Chock inductors, stable extreme overclocking

3. Power & Cooling (Flagship 12+2 Phase)

• Power Design: 12+2 Phase Digital VRM, titanium inductors, 100A high-efficiency MOSFETs, all-solid capacitors
• PCB: 8-layer server-grade PCB, 2oz copper, stable under high load/OC
• Cooling: Full-coverage titanium heatsink + high-thermal pad, M.2 heatsink, integrated I/O shield, supports multi-GPU high-load cooling

4. Memory Specifications (Quad Channel + Large Capacity)

• Slots: 8×DDR4 DIMM (Quad Channel)
• Max Capacity: 128GB (8×16GB)
• Frequency:
  • Native: 2133/2400MHz
  • OC: Up to DDR4 3466MHz (OC), XMP 2.0 profiles supported
• Type: DDR4 non-ECC/unbuffered, RDIMM 1Rx8 (non-ECC mode)
• Tech: DDR4 Boost + Steel Armor shielding, enhanced signal stability

5. Expansion Slots (5×PCIe 3.0 x16, Multi-GPU King)

• PCIe 3.0 x16 ×5: Metal-reinforced, 4-way SLI/CrossFireX multi-GPU supported
  • 1-way: x16; 2-way: x16/x16; 3-way: x16/x8/x8; 4-way: x8/x8/x8/x8
• PCIe 3.0 x1 ×1: NIC/sound card/capture card expansion
• Multi-GPU: NVIDIA SLI + AMD CrossFireX dual support, flagship rendering/gaming multi-GPU choice

6. Storage (High-Speed + Multi-Interface)

• M.2 ×1: PCIe 3.0 x4 32Gbps, 2242/2260/2280/22110 NVMe/SATA SSD, with heatsink
• U.2 ×1: High-speed enterprise U.2 SSD interface
• SATA 6Gb/s ×10: RAID 0/1/5/10 supported, massive storage expansion
• SATA Express ×1: High-speed hybrid storage interface

7. Networking & Rear I/O (Flagship + Wireless)

• LAN/Wi-Fi:
  • Intel I218-V Gigabit Ethernet ×1
  • Intel AC8260 Dual-band WiFi (802.11ac) + Bluetooth 4.2 (2.4/5GHz)
• Rear Ports:
  • USB 3.1 Gen2 ×2 (Type-A+Type-C, 10Gbps)
  • USB 3.1 Gen1 ×6 (5Gbps)
  • USB 2.0 ×3
  • Video: No iGPU output (dedicated GPU required)
  • Audio: Realtek ALC1150 7.1-channel, dual headphone amp, gold-plated jacks, Audio Boost 3
  • Others: PS/2, BIOS Flashback+ (BIOS update without CPU), Debug LED, Clear CMOS button

8. Special Features

• RGB: Mystic Light, RGB strip sync supported
• BIOS: Dual BIOS, 256Mb UEFI, Chinese UI, one-click recovery
• Durability: Titanium protection, lightning/ESD/short-circuit resistance, PCIe steel armor
• Overclocking: GAME Boost, OC Optimizer, extreme OC optimization

9. Ideal Usage

• Enthusiast overclocking (i7-5960X, etc.)
• Professional workstation (3D rendering, video editing, server)
• High-end gaming/streaming (multi-GPU gaming, live streaming)
• Studio multi-tasking/data processing
• Flagship retro PC upgrade
• Please note: This product does not include batteries as they are prohibited items.
  All motherboards in this store are used motherboards. Motherboards are updated rapidly, so the pictures displayed on the page may not match the actual ones. Please contact customer service to obtain the latest actual pictures
