Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whethercan be compatible with our motherboard, then check your video card or powersupply.
C.Please DO NOT use single-side memory, most motherboards can't support suchmemory.
D. We DO use genuine brand memory, please do not use fake memory or if you'renot sure whether your memory fake or not, please do not try it on ourmotherboard.

Packageinclude:

1* motherboard

2* SATA cables

1* I/O pannel

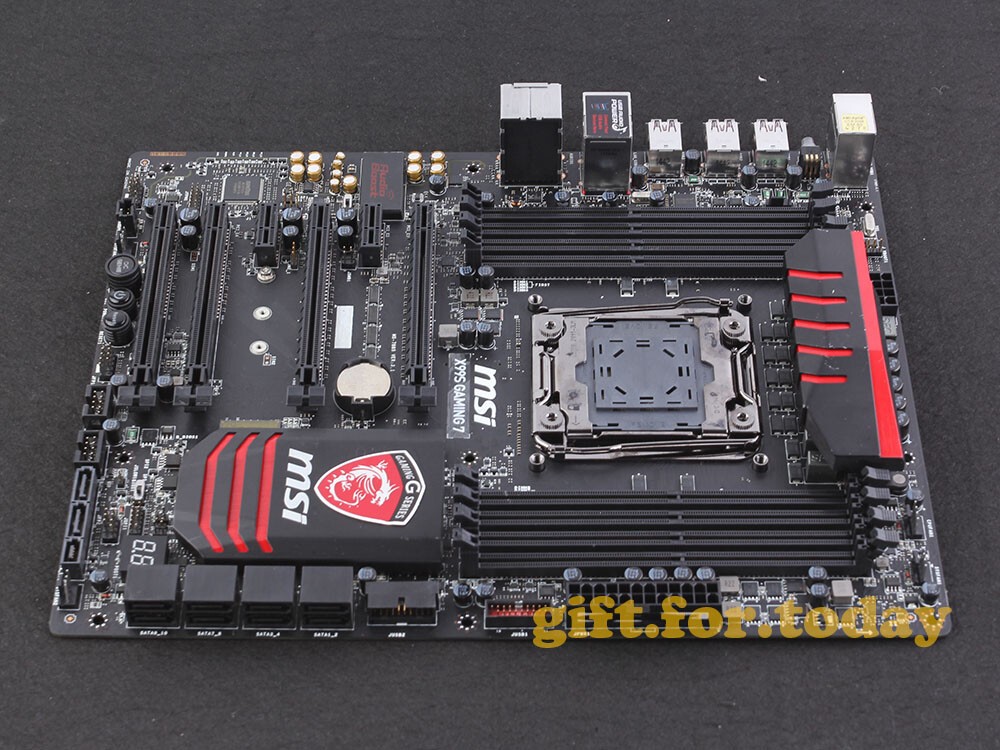

Motherboard Introduction

CPU

• Supports New Intel® Core™ i7 Processor Extreme Edition for LGA2011-3 Socket

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® X99 Express Chipset

Main Memory

• Support eight DRAM, 128GB Max

- Quad channel memory architecture
- Supports non-ECC, un-buffered memory

Slots

• 4 x PCIe 3.0 x16 slots, support up to 3-way mode

- 1-way mode: x16/ x0/ x0/ x0

- 2-way mode: x16/ x16/ x0/ x0*, 16/ x8/ x0/ x0**

- 3-way mode: x16/ x16/ x0/ x8*, x8/ x8/ x8/ x0**

* For the CPU that supports 40 PCIe lanes

** For the CPU that supports 28 PCIe lanes

Storage

•Intel X99 Express Chipset

• 10 x SATA 6Gb/s ports (2 ports reserved for SATA Express port)*

- SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10

- SATA7~10 ports only support IDE mode and AHCI mode.

- Supports Intel® Smart Response Technology (Windows 7/ 8/ 8.1)

• 1 x SATA Express port*

-1x M.2 port, supports up to 32Gb/s speed**

-M.2 port supports 4.2cm/ 6cm/ 8cm length module

-M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10.

* The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen2 x2 mode) module in the M.2 port.

** Intel RST does not support PCIe M.2 SSD with Legacy ROM.

USB

• IntelX99Express Chipset
- 6 x USB 3.0 ports (2 ports on the back panel, 4 ports available through the internal USB 3.0 connectors*)
- 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
•ASMedia ASM1042 Chipset
-2 x USB 3.0 ports on the back panel

•VIA VL805

- 4 x USB 3.0 ports on the back panel
* Internal JUSB1 connector supports MSI Super Charger.

Audio

• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

LAN

• 1x Killer E2205 Gigabit LAN controller*
* The Killer Network Manager is only available for Windows 7 and Windows 8/8.1 currently. The supported drivers for other operating systems would be available on the website if provided by vendor.

Multi-GPU

• Supports 3-Way AMD® CrossFireTM Technology*
•Supports 3-Way NVIDIA® SLI™ Technology
* Supports Windows 7 and Windows 8/8.1.

Internal I/O Connectors

- 1 x 24-pin AT x main power connector

- 1 x 8-pin AT x 12V power connector

- 10 x SATA 6Gb/s connectors

- 1 x SATA Express connector

- 1 x M.2 connector

- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

- 2 x USB 3.0 connectors (supports additional 4 USB 3.0 ports)

- 2 x 4-pin CPU fan connectors

- 3 x 4-pin system fan connectors

- 1 x Front panel audio connector

- 2 x System panel connectors

- 1 x TPM module connector

- 1 x Chassis Intrusion connector

- 1 x Clear CMOS jumper

- 1 x Power button

- 1 x Reset button

- 1 x OC Genie button

- 1 x Multi-BIOS switch

- 1 x Audio power switch

- 1 x Slow mode booting jumper

Back Panel I/O Ports

-1 x PS/2 port

-2 x USB 2.0 ports

-1 x Clear CMOS button

-8 x USB 3.0 ports

-1 x LAN (RJ45) port

-1 x Optical S/PDIF OUT connector

-5 x OFC audio jacks

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)ATX Form Factor

Mounting

•9 mounting holes.
