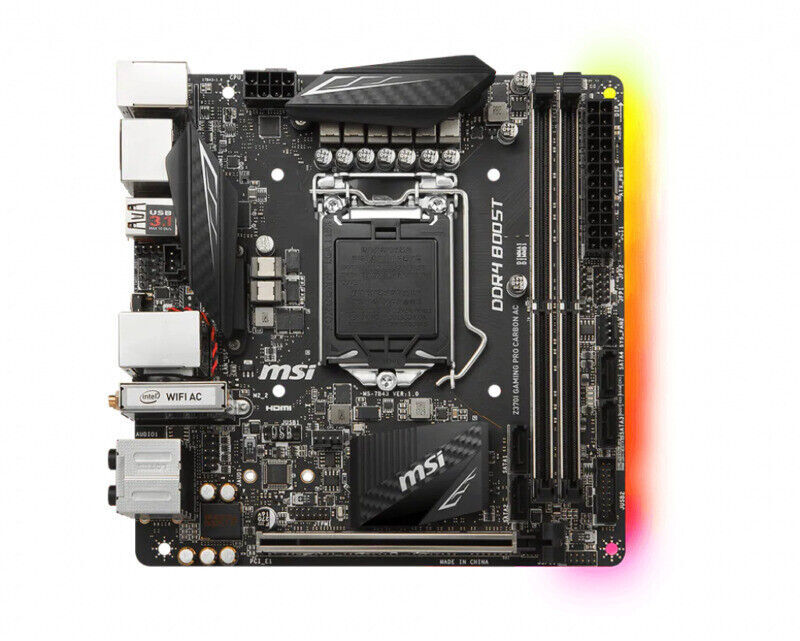

MSI Z370I GAMING PRO CARBON AC Motherboard Intel Z370 LGA 1151 DDR4 m.2 Mini-ITX

CPU

• 8th Generation Intel® Core™ processors supporting LGA1151, and Intel® Pentium® and Celeron® processors

Chipset

• Intel® Z370 Chipset

RAM

• 2 DDR4 slots supporting up to 32GB combined

- Support 4500(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC )/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Memory*

• Supports dual channel mode

• Supports non-ECC, unbuffered memory

• Support for Intel® Extreme Memory Profile (XMP)

Expansion slot

• 1 PCIe 3.0 x16 slot

Onboard graphics card

• 1x HDMI™ 1.4 port, supports up to 4096x2160@30Hz resolution

• 1 DisplayPort 1.2 interface, supports the highest resolution 4096X2304@60Hz

Storage

• Intel® Z370 Chipset

• 4 SATA 6Gb/s ports

- Provides SATA storage devices supporting RAID 0, RAID 1, RAID 5 and RAID 10

• 1 M.2 slot (M2_1, Key M)

- Supports up to PCIe 3.0 x4 and SATA 6Gb/s

- Support 2242/2260/2280 size storage devices

-Intel® Optane™ Memory Ready

USB

• ASMedia® ASM3142 Chipset

- 1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on back panel

- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A connector on the back panel

• Intel® Z370 Chipset

- 4 USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on back panel, 2 via onboard USB ports)

- 4 USB 2.0 (High-speed USB) ports (2 Type-A ports on back panel, 2 via onboard USB ports)

Sound effect

• Realtek® ALC1220 decoder chip

- 7.1 channel high-quality sound

- Support S/PDIF output

Wirsless LAN & Bluetooth®

• Intel® Dual Band Wireless-AC 8265 Module

- Wireless module pre-installed in M2_2 (M.2 Key E) slot

- Supports Wi-Fi 802.11 a/b/g/n/ac, dual-band (2.4GHz, 5GHz) up to 867 Mbps

- Supports dual mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

The internet

• 1 Intel I219-V Gigabit NIC

Built-in input/output interface

- 1 24-pin ATX main power connector

- 1 8-pin ATX 12V power connector

- 4 SATA 6Gb/s ports

- 1 USB 3.1 Gen1 port (can support 2 additional USB 3.1 Gen1 ports)

- 1 USB 2.0 port (can support 2 additional USB 2.0 ports)

- 1 4-pin CPU fan header

- 1 x 4-pin system fan header

- 1 panel audio interface

- 2 system panel connectors

- 1 TPM module interface

- 1 chassis opening port

- 1 clear CMOS function jumper

- 1 5050 RGB LED strip 12V connector

- 1 CORSAIR individually addressable RGB LED strip 5V connector

Rear input/output interface on back panel

- 1 PS/2 keyboard/mouse port

- 2 USB 2.0 Type-A ports

- 1 DisplayPort

- 1 HDMI™ port

- 1 USB 3.1 Gen2 Type-A port

- 1 USB 3.1 Gen2 Type-C port

- 1 clear CMOS button

- 1 LAN (RJ45) port

- 2 USB 3.1 Gen1 Type-A ports

- 2 Wi-Fi antenna ports

- 5 oxygen-free copper audio interfaces

- 1 optical S/PDIF output

Form Factor

• Mini-ITX ; 6.7 x 6.7 inches (17.0 x 17.0 cm)

Mounting hole

• 4 mounting holes

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.
