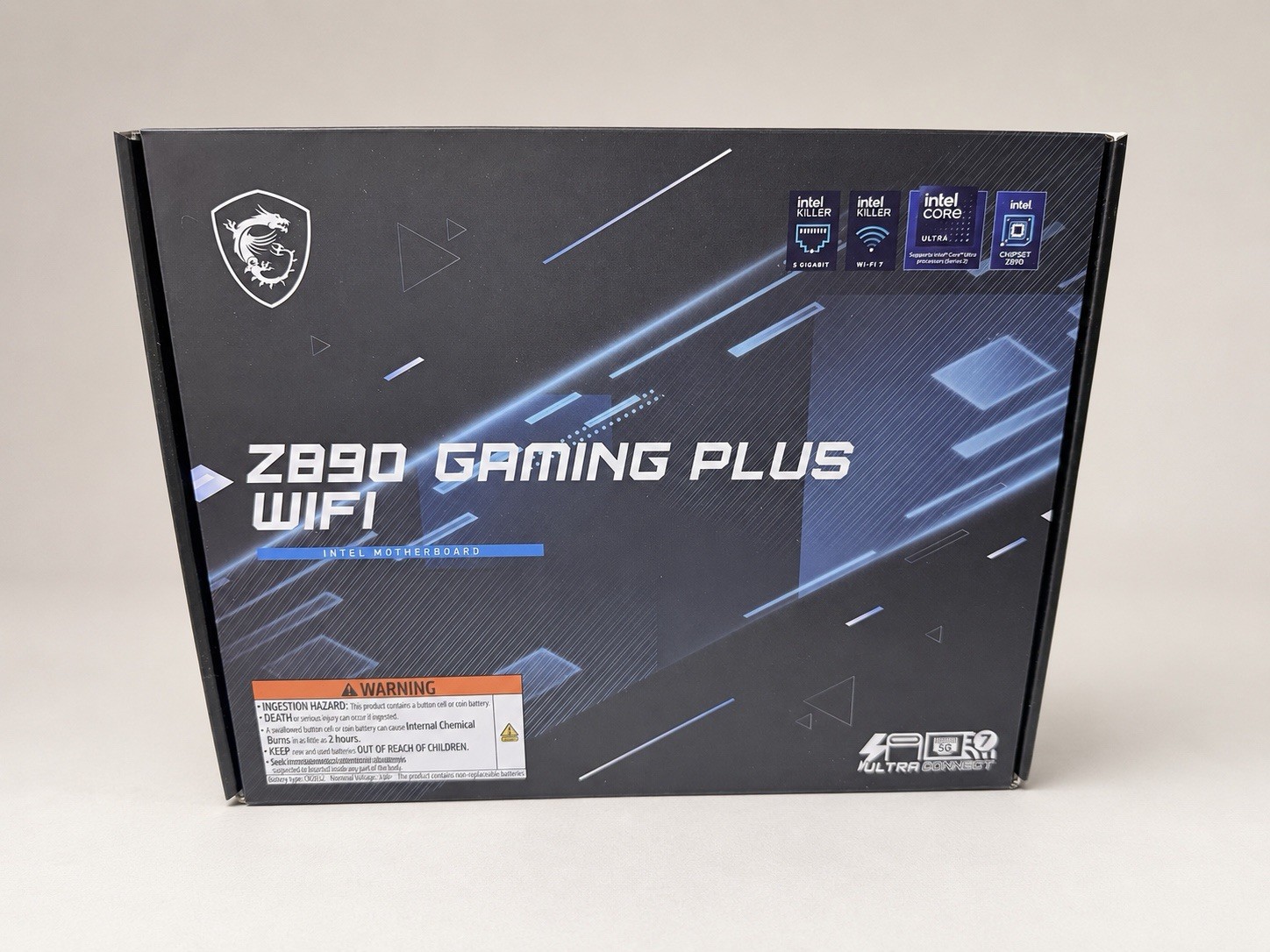

⚡ MSI Z890 GAMING PLUS WIFI ATX MOTHERBOARD ⚡

Brand New | Intel Z890 | LGA 1851 | DDR5 | Wi-Fi 7 | PCIe 5.0

Build a powerful Intel gaming, content-creation, or productivity system with the MSI Z890 GAMING PLUS WIFI motherboard.

Designed for Intel Core Ultra Processors Series 2, this full-size ATX motherboard combines the Intel Z890 chipset with high-speed DDR5 memory support, PCIe 5.0 expansion, Gen5 NVMe storage, Thunderbolt 4, Wi-Fi 7, Bluetooth, and Intel Killer 5Gb Ethernet.

🧠 PROCESSOR AND MEMORY SUPPORT

* CPU Socket: Intel LGA 1851

* Chipset: Intel Z890

* Supports Intel Core Ultra Processors Series 2

* Four DDR5 DIMM slots

* Maximum memory capacity up to 256GB

* DDR5 speeds up to 9200+ MT/s when overclocked

* Supports Intel XMP 3.0

* Supports standard DDR5 UDIMM and CUDIMM memory

* Dual-channel memory architecture

Memory speed and compatibility depend on the installed processor, memory configuration, and selected RAM kit.

🎮 PCIe 5.0 EXPANSION

The motherboard includes a reinforced primary graphics-card slot designed to support large, high-performance GPUs.

* 1 × reinforced PCIe 5.0 x16 slot

* MSI Steel Armor construction

* EZ PCIe Clip II for easier GPU removal

* 2 × additional PCIe 4.0 expansion slots

* 1 × PCIe x1 expansion slot

* Supplemental PCIe power connector for demanding system configurations

💾 HIGH-SPEED STORAGE

Install multiple NVMe SSDs without relying on add-in storage cards.

* Four total M.2 storage slots

* 1 × PCIe 5.0 x4 M.2 slot

* 3 × PCIe 4.0 x4 M.2 slots

* 4 × SATA 6Gb/s connections

* EZ M.2 Shield Frozr II

* Tool-free EZ M.2 installation features

* RAID 0, 1, 5 and 10 support for compatible SATA and NVMe storage configurations

🌐 PREMIUM NETWORKING

* Intel Killer Wi-Fi 7

* Intel Killer E5000 5Gb Ethernet

* Bluetooth 5.4 support

* Supports 2.4GHz, 5GHz and 6GHz wireless bands

* Multi-Link Operation support

* EZ Wi-Fi antenna design

* Intel Killer Performance Suite support

Compatible networking equipment, operating system support, and regional availability may be required to access all Wi-Fi 7 features.

⚡ THUNDERBOLT AND USB CONNECTIVITY

* Rear Thunderbolt 4 USB-C port

* Thunderbolt transfer speeds up to 40Gbps

* USB4 device support

* Front USB 20Gbps Type-C header

* Rear USB 10Gbps Type-A and Type-C

* Multiple rear and internal USB 5Gbps connections

* Thunderbolt 5 add-in card connector

* Flash BIOS button

The Thunderbolt 4 port also supports compatible DisplayPort connections and display resolutions up to 8K, depending on the installed processor and display configuration.

❄️ POWER AND THERMAL DESIGN

Built for sustained gaming and productivity workloads, the Z890 GAMING PLUS WIFI uses MSI’s upgraded power and cooling design.

* 14+1+1+1 Duet Rail Power System

* 55A DrMOS power stages

* Dual 8-pin CPU power connectors

* Core Boost and Memory Boost

* Extended VRM heatsinks

* 6-layer server-grade PCB

* 2oz thickened copper

* 7W/mK MOSFET thermal pads

* Dedicated CPU, pump and system-fan headers

* MSI Frozr AI Cooling support

🔊 AUDIO AND DISPLAY CONNECTIONS

* Realtek ALC897 audio codec

* 7.1-channel high-definition audio

* MSI Audio Boost

* HDMI 2.1

* DisplayPort 1.4

* DisplayPort output through the Thunderbolt 4 USB-C port

Motherboard display outputs require an installed processor with supported integrated graphics. A dedicated graphics card is recommended for high-performance gaming.

🛠️ EZ DIY FEATURES

* Preinstalled rear I/O shield

* EZ M.2 Shield Frozr II

* EZ M.2 Clip II

* EZ PCIe Clip II

* EZ Wi-Fi antenna

* Four EZ Debug LEDs

* Flash BIOS button

* Addressable RGB and standard RGB headers

* MSI Center and Click BIOS support

📋 PRODUCT INFORMATION

* Brand: MSI

* Model: Z890 GAMING PLUS WIFI

* Chipset: Intel Z890

* Socket: LGA 1851

* Form Factor: ATX

* Memory Type: DDR5

* Maximum Memory: 256GB

* Wireless: Wi-Fi 7

* Bluetooth: Bluetooth 5.4

* Ethernet: Intel Killer 5Gb LAN

* Dimensions: Approximately 12 × 9.6 inches

* UPC: 824142381465

📦 CONDITION

Brand New

* Original MSI retail box

* Original manufacturer-supplied accessories

* Original documentation and internal packaging

The listing is for the motherboard only. Processor, memory, graphics card, storage, cooler, case, power supply, and operating system are not included.

⚠️ COMPATIBILITY NOTICE

This motherboard uses the Intel LGA 1851 socket and is intended for compatible Intel Core Ultra Series 2 processors.

Please confirm compatibility with your processor, memory, CPU cooler, computer case, storage devices, and other components before purchasing. This is not an LGA 1700 motherboard.
