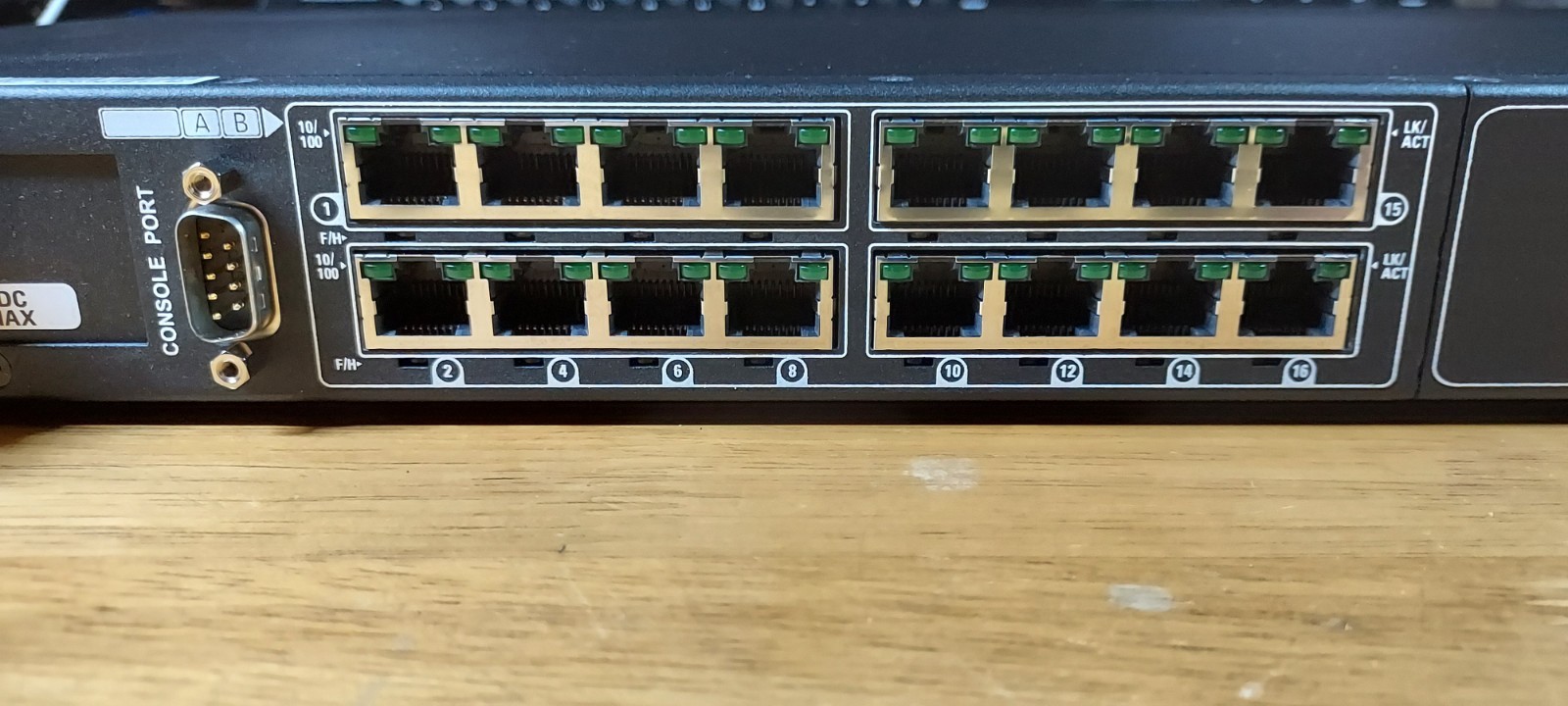

The Magnum 6K32TR is a high-density, managed Industrial Ethernet switch designed by GarrettCom (now a Belden brand). It is specifically engineered for "Carrier Class" and heavy-duty industrial environments, such as power utilities and telecommunications.

The "TR" designation indicates the "Reverse" model, where the ports and power supply connections are located on the rear of the unit, while the LED status indicators remain on the front for easy rack monitoring.

• Form Factor: 1U rack-mount with a rugged high-strength sheet metal enclosure.

• Scalability: Features a modular design that supports up to 32 ports total. It typically comes with 16 fixed 10/100 RJ-45 copper ports and two expansion slots for modular port upgrades.

• Durability: NEBS and ETSI rated, designed for extreme reliability with a non-blocking wire-speed Ideal for high-port density needs in rack spaces where dust, dirt, or extreme temperatures are present.Technical SpecificationsFeatureDetailsFixed Ports16 x 10/100 Mbps RJ-45 copper portsExpansion Slots2 slots for modular inserts (Fiber, Gigabit, or additional Copper)Throughput8.33 Mpps (aggregate forward and filter rate)Processing TypeStore and Forward with IEEE 802.3x full-duplex flow controlAddress Table4K nodes, self-learning with address agingPacket Buffers240KB for 10/100; 120KB for 1000MbLatency5 µs + packet time (100 to 100Mbps)Power OptionsAC (100-240V), DC (-48V, 24V, 125V, or 250V), or Dual Source DCPower Draw30W typical (copper only); 45W max (with fiber modules)CoolingInternal fan-cooled (@ 25cfm)Dimensions1.7" H x 17.0" W x 9.0" D (4.32cm x 43.2cm x 22.9cm)Weight5.0 lbs (2.3 kg)Configuration Flexibility

  The two modular slots allow for various combinations:

  • Fiber Ports: Up to 16 additional 100Mb fiber ports (SFF, SC, ST, or MTRJ).

  • Gigabit Ports: Up to 4 Gigabit ports using GBIC or SFP modules.

  • PoE: Support for Power over Ethernet modules if configured accordingly.

  Management & Software

  The switch utilizes MNS-6K (Managed Networks Software), which provides:

  • SNMP management and Secure Web Management.

  • 802.1p QoS Traffic Prioritization for VoIP and streaming applications.

  • Support for redundant ring topologies (S-Ring) and VLANs.
