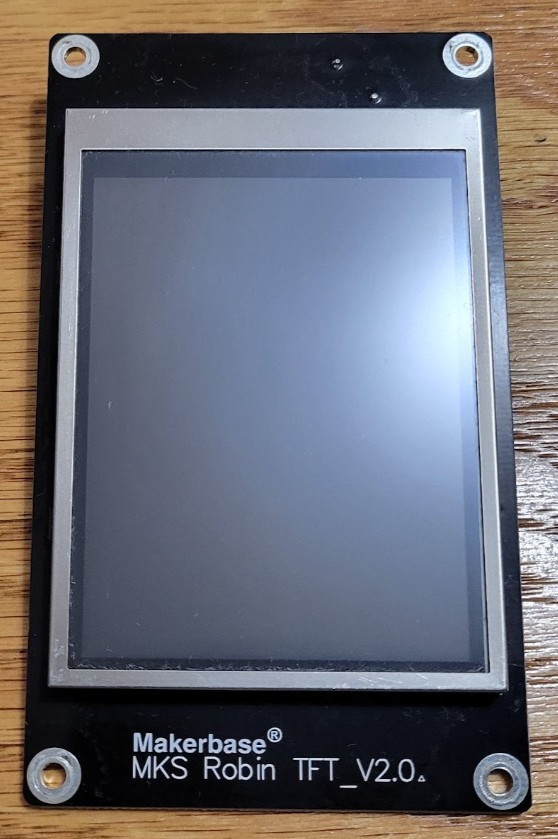

Makerbase MKS Robin TFT V2.0 Display Screen FLSUN QQ-S QQ-S Pro *Tested*
Price: US $29.99
The MKS Robin TFT_V2.0 is a color touchscreen display module developed by Makerbase for 3D printer control boards. It is most frequently paired with the MKS Robin series motherboards to provide a graphical user interface.Technical Profile
Display Interface: Uses a parallel FSMC or SPI data bus rather than basic serial connections.
Controller Hardware: Features an onboard driver chip, typically using an ST7789V or similar TFT controller.
Physical Variants: Available in different physical form factors, commonly including 2.8-inch and 3.2-inch panel configurations.
Touch Panel Integration: Built with a resistive touch overlay that handles menu navigation, system settings, and axis jogging directly.
Firmware Integration
Custom GUI Assets: The screen relies on custom graphics where icons, fonts, and interface configurations are stored directly on an external SD card or embedded in specific Makerbase firmware.
Marlin 2.0 Integration: When compiling Marlin, the board configuration requires defining the correct display layout macros so the motherboard can properly render images to the display.
Bootloader Mechanism: The display state can affect mainboard bootloader behavior, and successful asset flashing often requires a specific file naming convention on the SD card.
