🖱️ MelGeek × EVANGELION HORUSWireless Gaming Mouse

Semi‑Symmetric Ergo, TTC Optical 100 M, NullSync Wireless, Pyra‑Receiver, 300 mAh, 215 h

✅ Compatible Systems & Use Cases

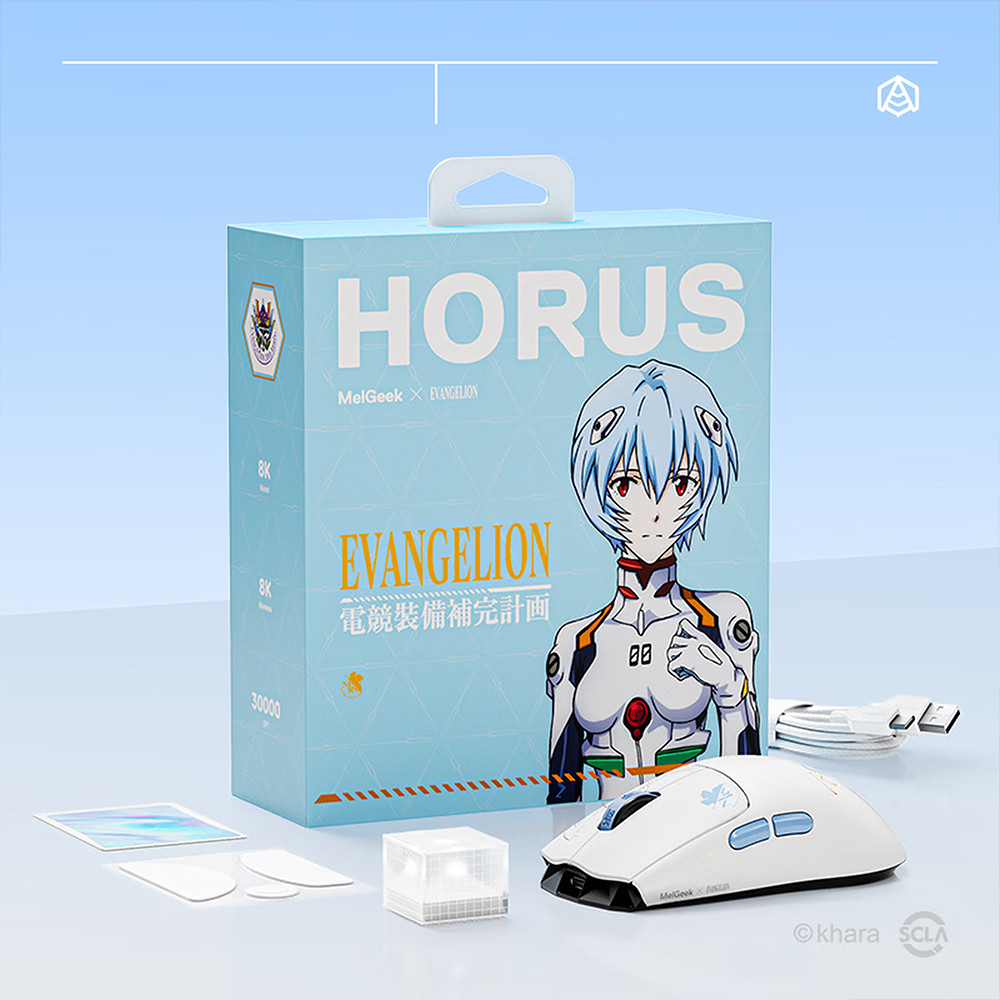

📦 In The Box

• 1 × MelGeek × EVANGELION HORUS Wireless Gaming Mouse

• 1 × Louvre Pyramid 8 K Wireless Receiver (illuminated, customizable LED)

• 1 × USB‑C Paracord Cable (data + charge)

• 1 × User Manual / Warranty Card

🔍 Product Overview

The MelGeek HORUS × EVANGELION is MelGeek's debut esports mouse — a 49 ± 2 g semi‑symmetrical ultralight co‑designed with Khara's EVA mecha aesthetic.

Built around a custom molded shell with a signature "Eye of Horus" under‑carriage cutout (weight‑relief + rigidity) and a wedge‑shaped front scoop, it houses the PixArt PAW3950 flagship sensor (30 000 DPI / 750 IPS / 50 G) + Nordic nRF54L (MCU) + NPM1300 (PMIC) dual‑chip wireless architecture. Both wired (0.20 ms) and 2.4 G wireless (0.25 ms) deliver true 8000 Hz polling via MelGeek's in‑house NullSync anti‑interference stack (stacked vertical antenna — 3.5× standard efficiency). TTC 100 M‑cycle optical switches + TTC Qinglong (Green Dragon) 24‑step encoder, 300 mAh cell (215 h@125 Hz / 155 h@1 K / 22 h@8 K), and the iconic illuminated pyramid receiver make it equally at home on a tournament desk or an EVA collector's shelf.

✨ Key Features 🎨 EVA × Horus Design Language

• Unit‑Specific Printing: Left‑click = character line‑art, palm rest = character handwritten signature, scroll wheel = EVA unit emblem.

• Side Badges: NERV logo + EVA unit crest etched on flank.

• "Eye of Horus" Undercut: Laser‑cut chassis vent — Egyptian mythology + 6 g weight shave.

• Mist‑Coat Skin‑Friendly Grip: Anti‑slip matte finish — oil/sweat resistant, no glossy wear.

• Pyramid Receiver: Louvre‑inspired semi‑translucent geometric dongle — glows per DPI/polling/battery state, click‑sync flash.

🎯 PAW3950 Flagship Sensor — 30 K Precision

• Native 30 000 DPI (50 DPI steps, 50–30 000 range) — glass‑pad compatible.

• 750 IPS Track Speed / 50 G Accel — zero spin‑out on fast flicks.

• LOD Adjustable (1–2 mm) via Hive driver — lift‑off tailored per pad.

• ≥20 K FPS Frame Scan — motion blur‑free tracking.

⚡ Nordic nRF54L + NPM1300 — Dual‑Chip Wireless

• nRF54L (22 nm): 128 MHz, 4 Mbps link, 2× bandwidth vs nRF53 — sub‑0.25 ms wireless.

• NPM1300 PMIC: Independent charge/discharge control, fast‑charge protocol, over‑/deep‑protect.

• NullSync Tech: 8000 hops/sec frequency hopping — immune to router/BT speaker congestion (viper‑V4‑class anti‑interference).

• Stacked Vertical Antenna: 70 %+ radiation efficiency — 3.5× standard PCB ceramic.

🖱️ True Dual 8 K — Wired + Wireless
🔘 TTC Optical + Qinglong Encoder

• TTC Optical Microswitches: 100 M clicks, hard‑crisp tactility, zero oxidation/double‑click.

• TTC Qinglong Encoder: 24‑step tactile scroll — weapon‑swap / zoom precise, quiet.

🔋 300 mAh Smart Cell — 3 Tier Endurance

⚖️ 49 g 50:50 Balance — Medium‑Large Ergo

• 124 × 66 × 39 mm — quasi‑symmetrical with raised rear hump.

• Front Wedge Scoop: Chassis stability + finger guide.

• 50:50 CG: No front‑drag / rear‑wobble — flick + micro‑adjust neutral.

• PTFE 3‑Point Skates: Front + center + rear — low‑friction, pad‑agnostic.

⚙️ Technical Specifications
💡 Usage / Optimization Tips

• 8 K Mode PC Spec: i7‑9700K / R7 3700X+, 240 Hz+ monitor, GTX 1080 / RX 5700+, 16 GB RAM — unlocks full 0.25 ms potential.

• LOD Tuning: Set 1 mm for low‑friction glass/cloth pads — reduces cursor drift on lift.

• Pyramid Receiver Placement: Use included USB extender / mobo rear port — avoid front‑panel USB for 8 K stability.

• Horus‑Eye Dust Cover: Use included bottom sticker if gaming in sandy/pet‑hair environment — prevents under‑carriage debris.

• Battery Habit: 1 K polling = 155 h — charge weekly; 8 K = 22 h — overnight top‑up after LAN day.

⚠️ Important Notes

• No Bluetooth: ❌ 2.4 G + Wired only — cannot pair to tablet/mobile via BT (wired USB‑C data works).

• No Weight Tuning: ❌ Fixed 49 g — no add‑on weights / compartments.

• Right‑Hand Bias: Quasi‑symmetrical but shaped for RH — left‑hand use possible but sub‑optimal.

• 8 K Requires Spec Floor: Below i7‑9700K/R7 3700X, 8 K may cause CPU scheduling jitter — drop to 4 K/2 K.

• Receiver LED Only: Mouse shell is non‑illuminated — RGB lives on pyramid dongle only.

• EVA Prints Are Delicate: Avoid alcohol/abrasive wipes on signature/line‑art zones — use microfiber dry.
