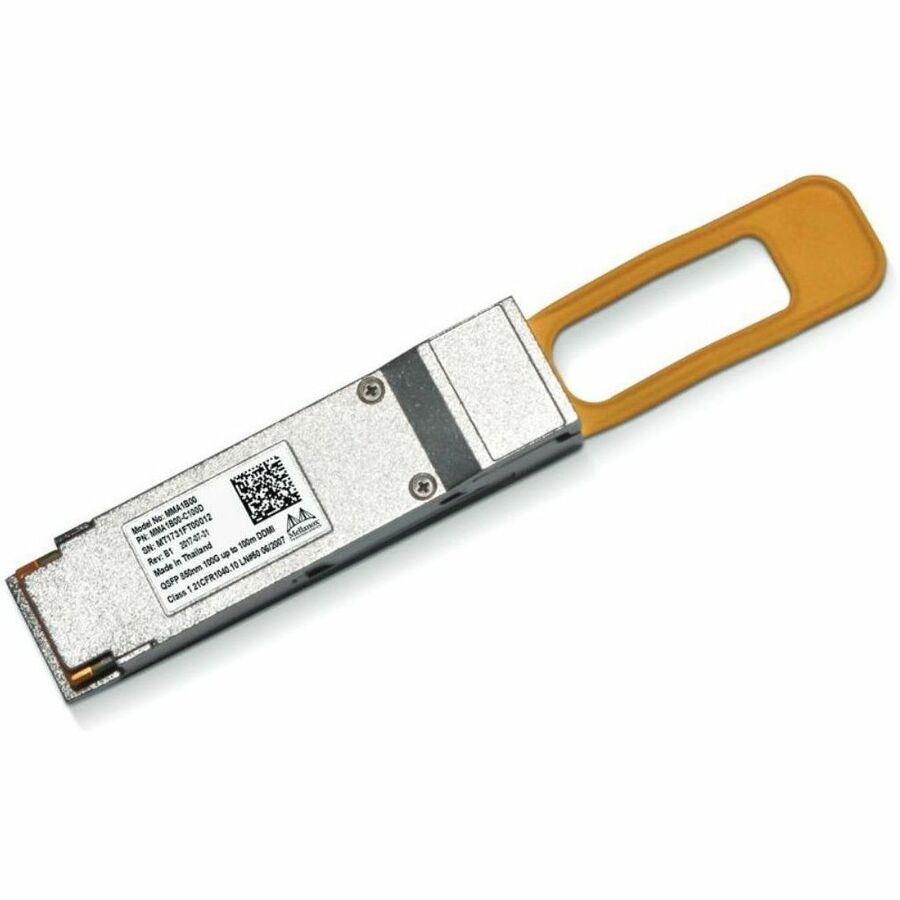

Mellanox MMA1B00-C100D 100Gb/s QSFP28 Optical Transceiver Brand: Mellanox Technologies UPC: 0783555115145 Mfr Part #: MMA1B00C100D
General InformationMellanox® MMA1B00-C100 is a 4-channel, pluggable, QSFP28 optical transceiver, designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant.
The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.
The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:
-Temperature with warning/alarm
-Supply voltage with warning/alarm
-Laser bias current
-Transmitted optical power with warning/alarm
-Received optical power with warning/alarm
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
Technical InformationApplication/Usage:Data NetworkingApplication/Usage:Optical Network
Media & PerformanceMedia Type Supported:Optical FiberFiber Mode Supported:Multi-modeEthernet Technology:100 Gigabit EthernetNetwork Technology:100GBase-SR4
Physical CharacteristicsForm Factor:Hot-pluggable
