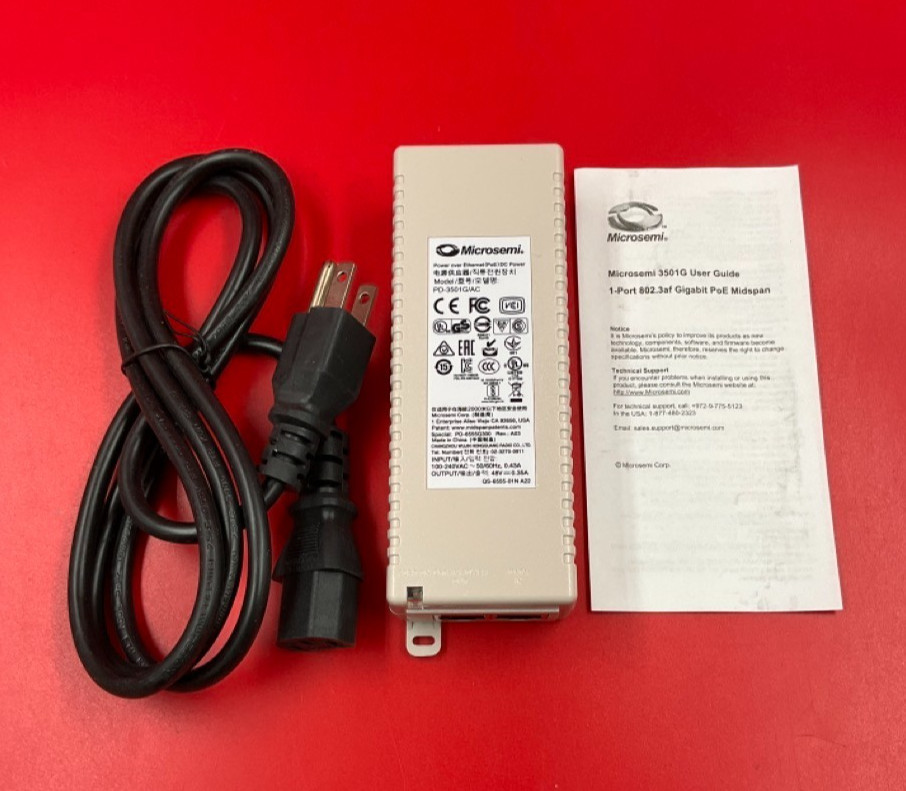

Microsemi PoE 1-Port 15.4W Gig Midspan (PD-3501G/AC)
New inside open box!Microsemi's PD-3501G Power over Ethernet (PoE) single port Midspan (PoE injector) offers a compact and cost effective, fully IEEE 802.3af compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations.
The PD-3501G PoE midspan offers compact, affordable and reliable power over standard Ethernet cables, leaving network infrastructure completely unaltered.
With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Features
- Safe & reliable power over existing Ethernet infrastructure
- Stackable and compact
- Cisco and legacy PoE support*
- Plug-and-play installation
- Guaranteed uptime
ParameterDescriptionNo. of Ports1Pass Through Data Rates10/100/1000 MbpsPower over Ethernet OutputPin Assignment and Polarity: 4/5 (+),7/8 (-)
Output Power Voltage: 48Vdc
User Port Power: 15.4W (Guaranteed)Input Power RequirementsAC Input Voltage: 110 to 240 Vac (+/- 10%)
AC Input Current: 0.43A @100-240 Vac
AC Frequency: 50 to 60 HzDimensions51.8 mm (W)x 34.8 mm (H)x 160.5 mm (L) +/- 0.5mm
2.04in. x 1.37in. x 6.31in +/- 0.02inWeight.44 lbs (200 g)IndicatorUser Indicator:
Channel Power (Green)ConnectorsShielded RJ-45,EIA 568A and 568BEnvironmental ConditionsOperating Ambient Temeprature: 32° to 104°F (0 to 40°C)
Operating Humidity: Maximum 90%, non-condensing
Storage Temperature: -4° to 158°F (-20° to 70°C) Storage Humidity: Maximum 95%, Non-condensing
Operating Altitude: -1000 to 10,000 ft.(-304.8 to 3048 m)ReliabilityMTBF: 100,000 hrs. @25°CThermal Rating13 BTU/Hr (@240VAC)Warranty1-yearRegulatoryIEEE 802.3af (PoE),RoHS Compliant,
WEEE Compliant, CEElectromagnetic Emission & ImmunityFCC Part 15, Class B
EN 55032 Class B (Emissions)
EN 55024 (Immunity),
VCCISafety ApprovalUL/EN/IEC 60950-1 (Ed.2)
