The new, completely waterproof, rugged, and super high powered RouterBOARD Metal. The serious outdoor wireless device!
Fully sealed, industrial design metal case, powered by RouterBOARD and RouterOS. high output power - to reach the last mile, in any conditions! It comes with L4 license, so you can attach your favorite 5Ghz antennna to use it as an AP, to make wireless point-to-point links or as a CPE- whatever you prefer!
It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

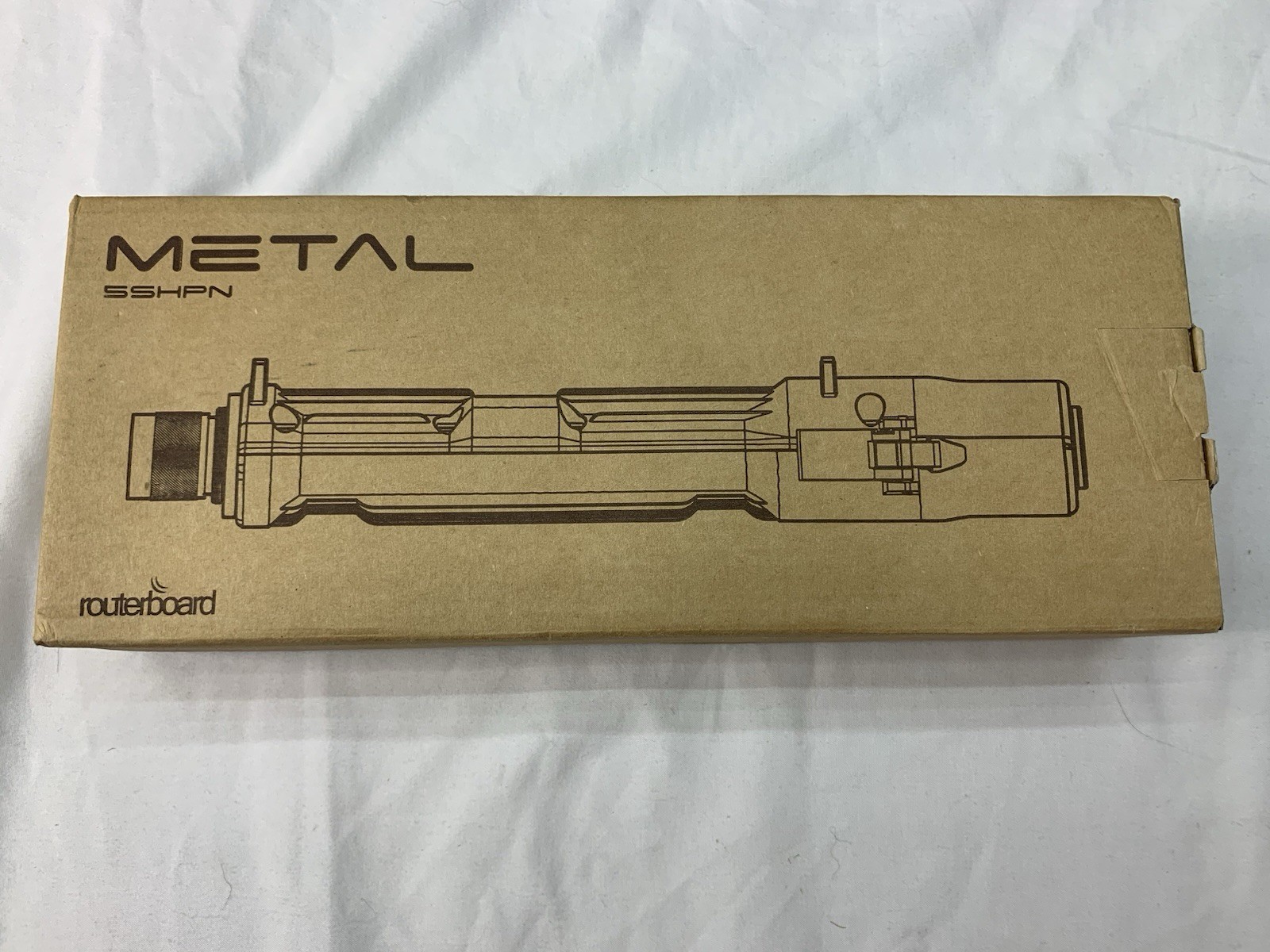

Package contains Metal-5SHPn, mounting loops, PoE injector, power adapter
- RBMetal5SHPn-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock cannot be removed.
Specifications
Details
Product code RBMetal5SHPn
Architecture MIPSBE
CPU AR7241
CPU core count 1
CPU nominal frequency 400 MHz
Dimensions 215x60x38mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $99.00
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 10.6 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 10-30 V
Wireless specifications
Details
Wireless 5 GHz Max data rate 150 Mbit/s
Wireless 5 GHz number of chains 1
Wireless 5 GHz standards 802.11a/n
Wireless 5 GHz chip model AR9280
Wireless 5 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 31 -93
54MBit/s 27 -77
MCS0 30 -92
MCS7 28 -71
