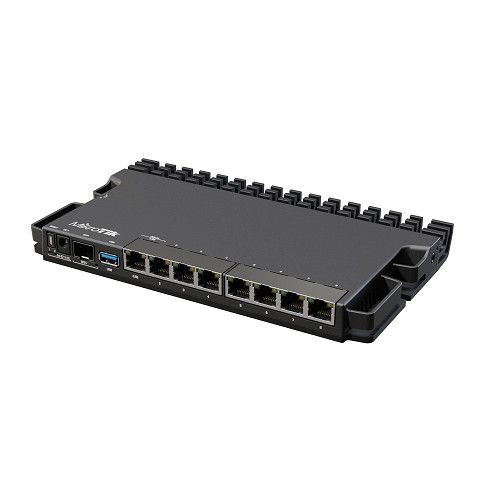

Double the usual performance: we took your response from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU.Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
SpecificationsDetailsProduct codeRB5009UG+S+INArchitectureARM 64bitCPU88F7040CPU core count4CPU nominal frequency350-1400 (auto) MHzSwitch chip model88E6393RouterOS license5Operating SystemRouterOS (v7 only)Size of RAM1 GBStorage size1 GBStorage typeNANDMTBFApproximately 200\'000 hours at 25CTested ambient temperature-40°C to 60°CIPsec hardware accelerationYesPoweringDetailsNumber of DC inputs3 (DC jack, 2-pin terminal, PoE-IN)DC jack input Voltage24-57 V2-pin terminal input Voltage24-57 VMax power consumption20 WMax power consumption without attachments14 WCooling typePassivePoE in802.3af/atPoE in input Voltage24-57 VEthernetDetails10/100/1000 Ethernet ports7Number of 2.5G Ethernet ports1FiberDetailsSFP+ ports1PeripheralsDetailsNumber of USB ports1USB Power ResetYesUSB slot typeUSB 3.0 type AMax USB current (A)1OtherDetailsCPU temperature monitorYesCertification & ApprovalsDetailsCertificationCE, EAC, ROHS
