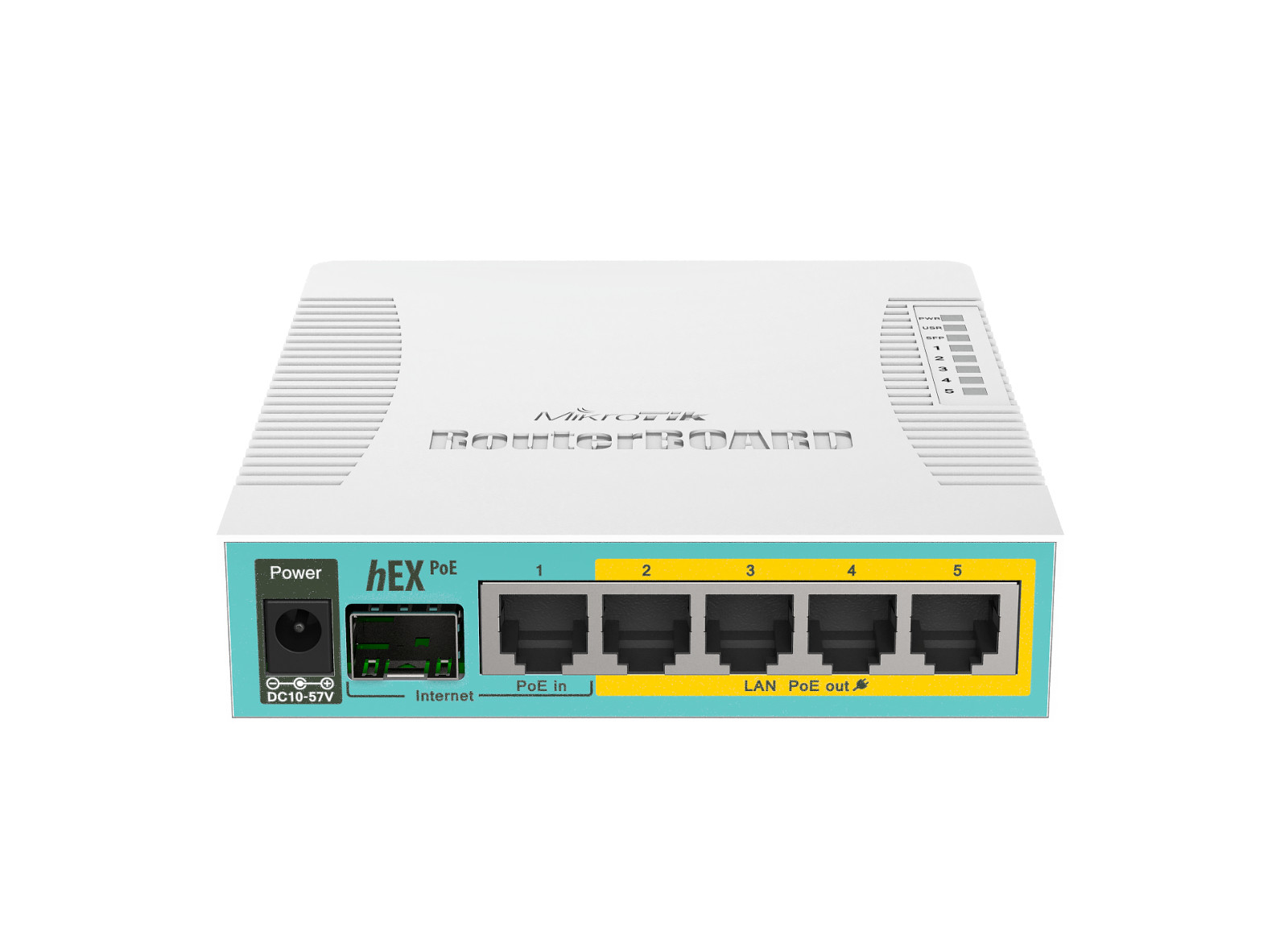

hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
SpecificationsDetailsProduct core count1CPU nominal frequency800 MHzSwitch chip modelQCA8337RouterOS license4Operating SystemRouterOSSize of RAM128 MBStorage size16 MBStorage typeFLASHMTBFApproximately 100'000 hours at 25CTested ambient temperature-40°C to 60°C
PoweringDetailsNumber of DC inputs2 (DC jack, PoE-IN)DC jack input Voltage12-57 VMax power consumption54 WMax power consumption without attachments6 WCooling typePassivePoE inPassive PoEPoE in input Voltage12-57 VPoE-outDetailsPoE-out portsEther2-Ether5PoE out802.3af/atMax out per port output (input 18-30 V)1 AMax out per port output (input 30-57 V)450 mAMax total out (A)2 AEthernetDetails10/100/1000 Ethernet ports5FiberDetailsSFP ports1PeripheralsDetailsNumber of USB ports1USB Power ResetYesUSB slot typeUSB type AMax USB current (A)1OtherDetailsPCB temperature monitorYesVoltage MonitorYesBeeperYesCertification & ApprovalsDetailsCertificationCE, EAC, ROHSIPIP20
