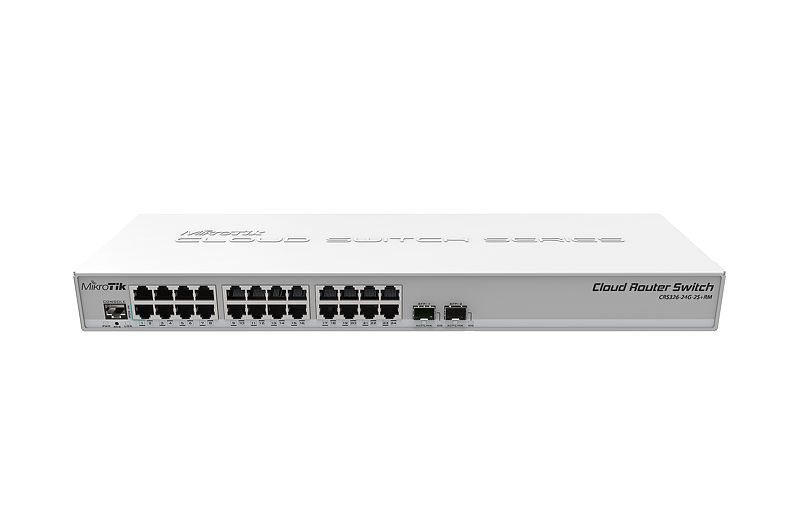

View more great itemsCRS326-24G-2S+RM
SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!
It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.
It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
GeneralDetailsProduct core count1CPU nominal frequency800 MHzDimensions440 x 144 x 44 mmLicense level5Operating SystemRouterOS / SwitchOSSize of RAM512 MBStorage size16 MBStorage typeFLASHTested ambient temperature-40°C .. +60°CPoweringDetailsMax Power consumption24WNumber of DC inputs2 (DC jack)PoE inPassive PoEDC jack input Voltage10-30 VEthernetDetails10/100/1000 Ethernet ports24FiberDetailsSFP+ ports2PeripheralsDetailsSerial portRJ45Switching byte512 byte1518 blocking Layer 2 blocking Layer 2 blocking Layer 1 blocking Layer 1 test resultsCRS326-24G-2S+RM98DX3236A1 all port testModeConfiguration1518 byte512 byte64 (fast bridge filter (fast simple ip filter rules59.8726.261.4251.559.530.5
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
