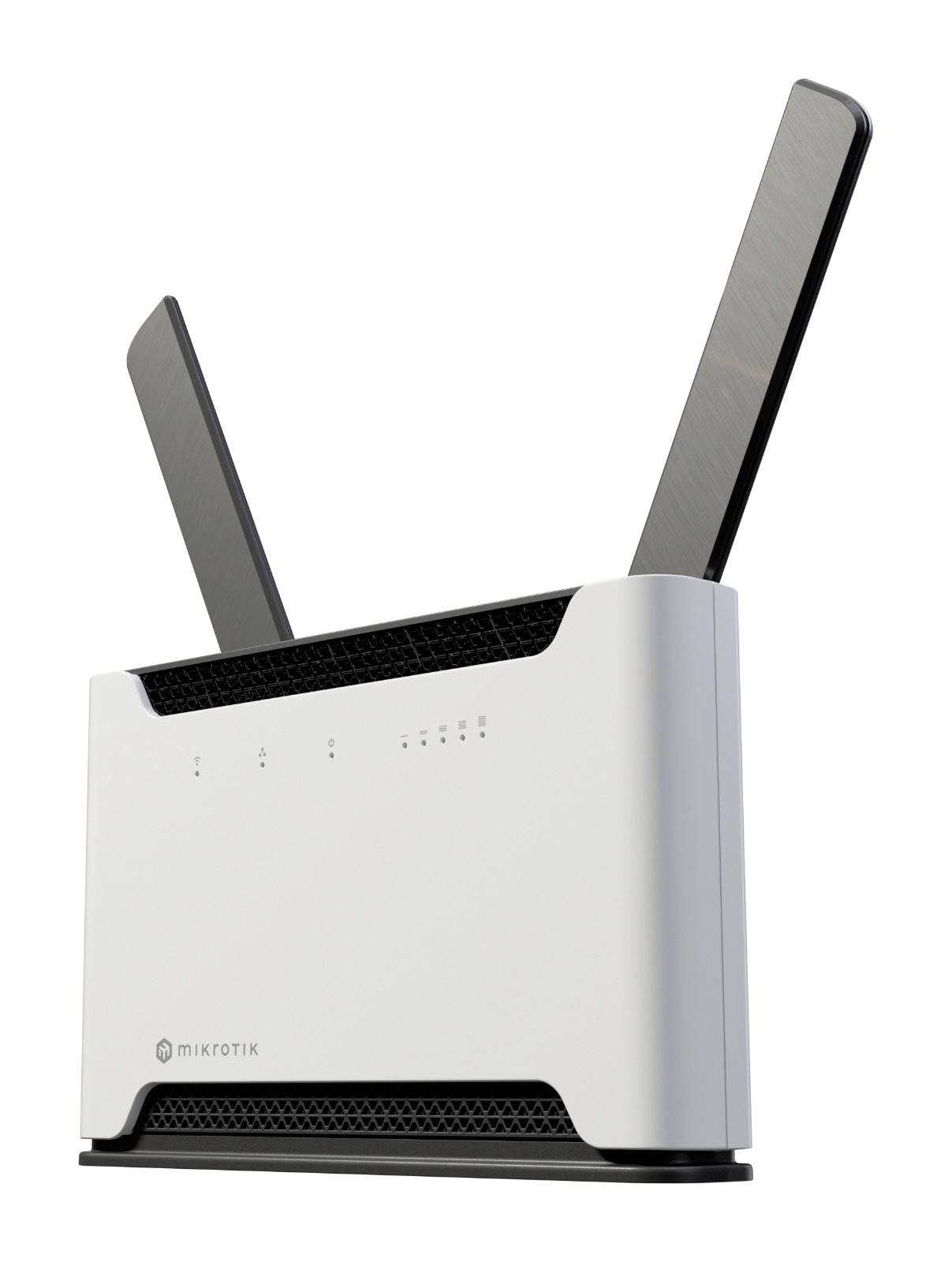

The Chateau PRO ax is a high-performance Wi-Fi 6 home access point designed for demanding network needs. Powered by a 2.2 GHz quad-core ARM CPU and advanced wireless technology, it supports 4 spatial streams for double the data rate of standard devices, ensuring fast and reliable connectivity.

Key Features:

• 5x Gigabit Ethernet Ports: High-speed wired connections.
• USB 3.0 Port: Supports SSD-based media servers or LTE modem backups.
• Enhanced Wireless Coverage: Advanced beamforming and increased transceivers improve range and performance.
• Optimized for Advanced Setups: Ideal for container configurations, bonding, and 4x4 MIMO Details
  • Product Code: H53UiG-5HaxQ2HaxQ
  • Architecture: ARM 64bit
  • CPU: IPQ-8072A, Quad-Core, 2208 MHz
  • Switch Chip Model: IPQ-8072
  • Operating System: RouterOS v7
  • License Level: RouterOS License 6
  • RAM: 1 GB
  • Storage: 128 MB NAND
  • MTBF: ~200,000 hours at 25°C
  • Tested Ambient Temperature: -40°C to 70°CWireless Capabilities

    • 2.4 GHz Band:

      • Max Data Rate: 1148 Mbps
      • Chains: 4
      • Standards: 802.11b/g/n/ax
      • Antenna Gain: 5 dBi
      • Chip Model: QCN-5024 (Wi-Fi 6)

    • 5 GHz Band:

      • Max Data Rate: 2400 Mbps
      • Chains: 4
      • Standards: 802.11a/n/ac/ax
      • Antenna Gain: 6 dBi
      • Chip Model: QCN-5054 (Wi-Fi 6)

    • WiFi Speed: Ports: 5

    • PoE-out Ports: 1 Ports: 1 x USB 3.0 Type-A
    • USB Power Reset: Yes
    • Max USB Current: 1.5 A

    Powering

    • DC Inputs: 1 (via DC Jack)
    • Input Voltage: 18–57 V
    • Max Power Consumption: 55 W (18 W without attachments)
    • Cooling Type: Passive PoE (up to 57 V)
    • Max Per Port Output:
      • 600 mA (18-30 V)
      • 500 mA (30-57 V)
    • Total Output Power: 22.8 W

    Certifications & Monitoring

    • Certifications: CE, FCC, IC, EAC, ROHS
    • IP Rating: IP20
    • Monitoring:
      • CPU Temperature
      • PCB Temperature
      • Voltage
