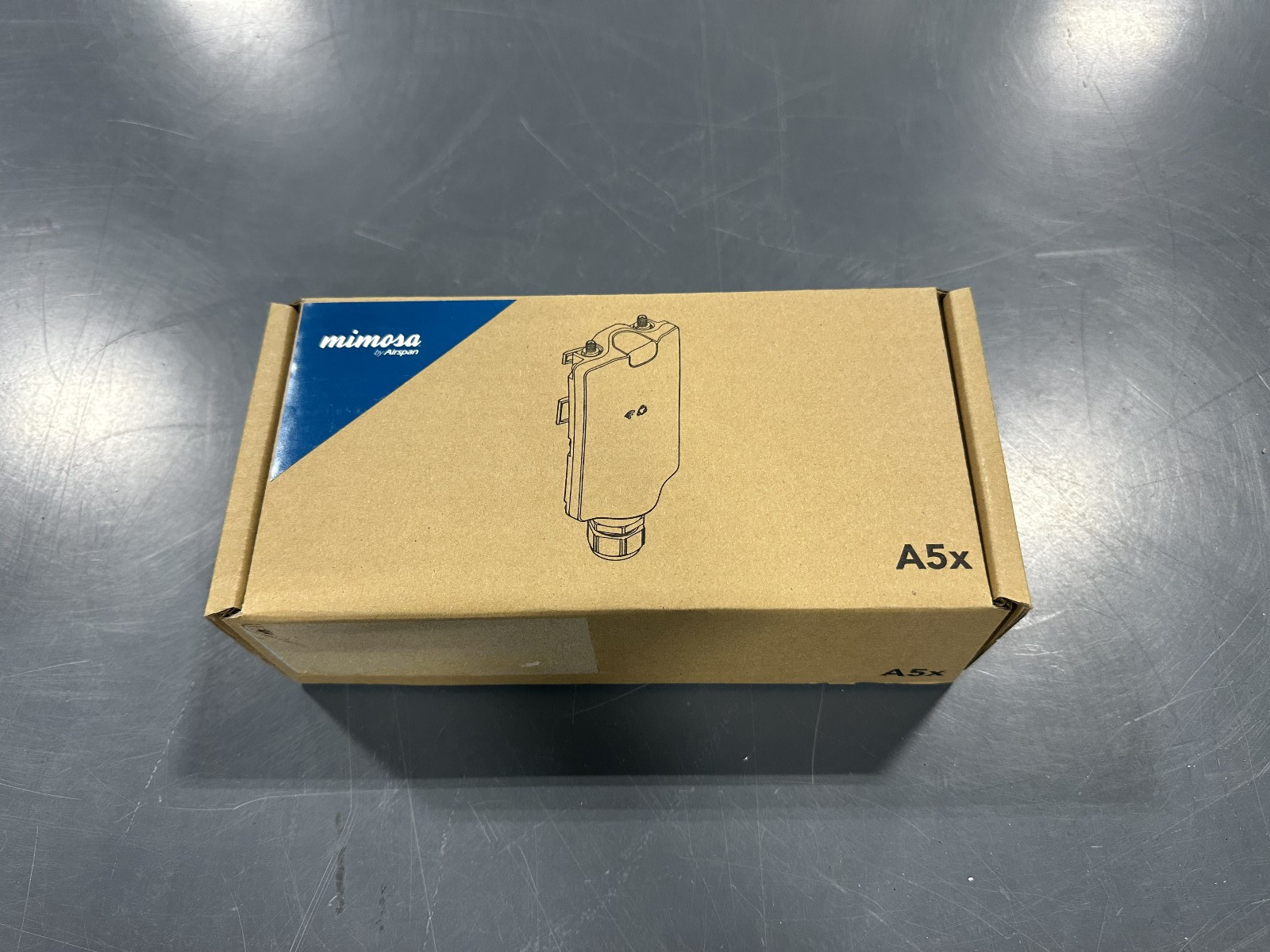

This listing is for a brand new, new-in-box (NIB) Mimosa A5x 5 GHz Connectorized 2x2 PTMP Access Point (Part Number: 100-00107) [1.1.1, 1.2.2]. The A5x is a compact, high-capacity sector access point designed for short to mid-range tower and pole deployments [1.2.4, 1.2.5]. Delivering fiber-fast wireless aggregate speeds up to 700 Mbps, it serves as an efficient distribution hub without the larger footprint or cost of a 4x4 system [1.1.1, 1.2.4].

Engineered with an ultra-rugged IP67 enclosure featuring a die-cast aluminum backing, this unit handles harsh outdoor elements while mitigating localized interference [1.2.4, 1.2.5]. It supports standard WiFi Interop alongside Mimosa's Spectrum Reuse Synchronization (SRS/GPS sync) to allow tight channel reuse and efficient multi-client sector scaling [1.1.1, 1.2.4].

• Condition: New in Box (NIB)

• Testing: Brand new factory sealed item. Individual functional testing has not been performed to preserve the sealed factory integrity of the hardware for the buyer.

• PoE Injector and Antenna Exclusions: Per the manufacturer's standard packaging, a Power over Ethernet (PoE) injector and external antennas are NOT included [1.1.1, 1.2.4]. This base radio unit features dual RP-SMA connectors to connect to your sector or horn antenna of choice [1.1.1, 1.2.5].

• Power Requirements: Requires a standard 24-56VDC Passive PoE power supply [1.1.1].

• Returns: Returns are allowed for any reason within 30 days of Networks (an Airspan company)ModelA5xPart Number100-00107 (FCC / US Version) [1.1.1, 1.1.5]Product TypeConnectorized 2x2 PTMP Access Point [1.1.1, 1.2.4]Max ThroughputUp to 700 Mbps IP aggregate [1.1.1]Frequency Range5150–5850 MHz (US/FCC)Client Capacity64 clients (WiFi Interop) / 44 clients (SRS/GPS sync) [1.1.1]RF Connectors2x RP-SMA Female [1.2.2, 1.2.3]MIMO & Modulation2x2:2 MIMO OFDM up to 256-QAM [1.1.1]Network Interface1x 10/100/1000-Base-T Gigabit Ethernet Port [1.2.2]GPS SynchronizationYes (1PPS GPS TX/RX synchronization) [1.2.2]Ingress ProtectionIP67 Outdoor Weatherproof Rating [1.1.1, 1.2.2]Dimensions7.42" x 2.56" x 3.35" (188.4 x 75 x 44 mm with gland) [1.1.1]Weight0.70 lbs (0.30 kg) [1.1.1]
