This listing is for Brand New in the box Mimosa A5C Access Point MU-MIMO 4x4 Gigabit AP IP67 5.15 - 6.2 GHz 500+ Mbps
Part # 100-00037-01 EF

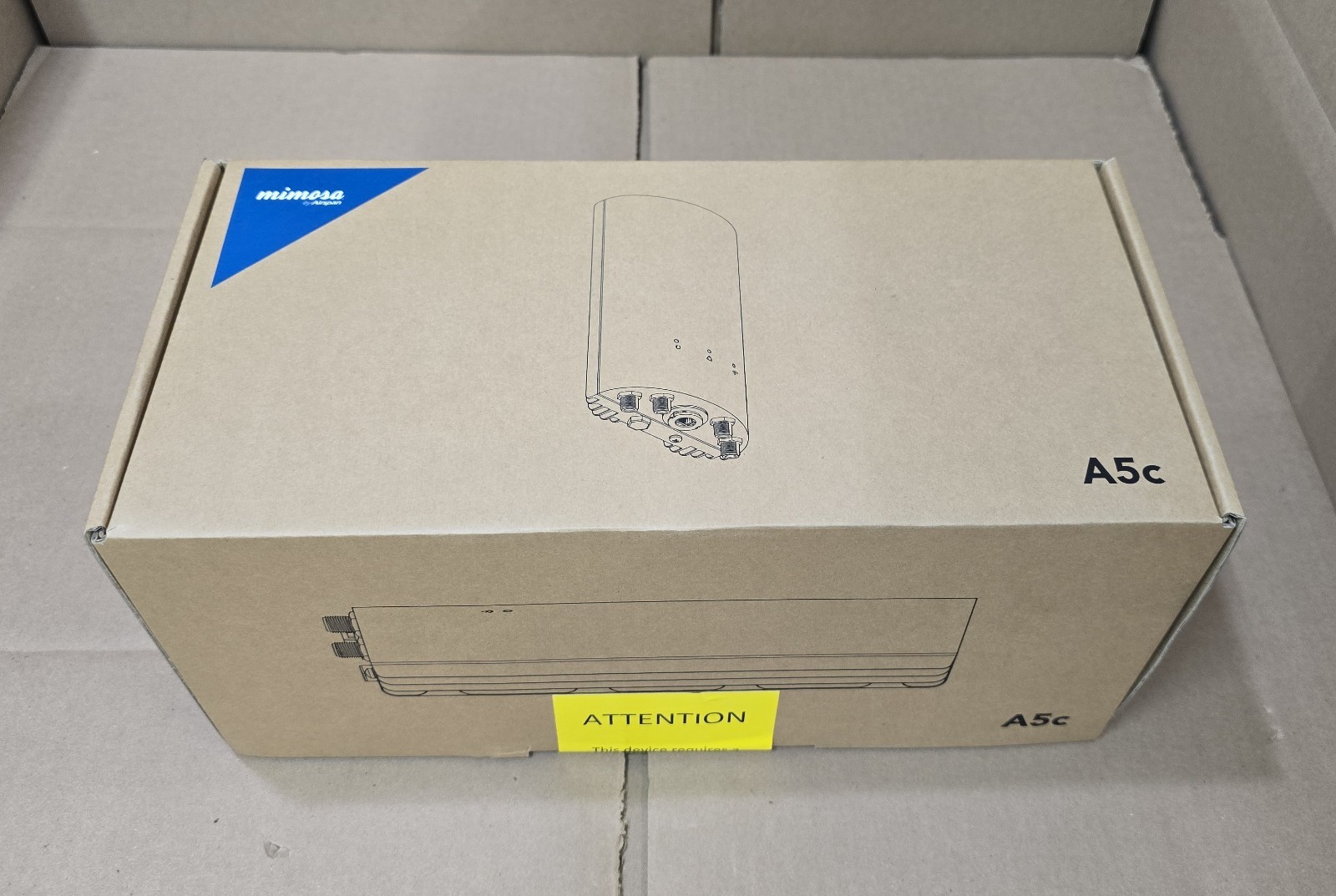

Purchases of six units will be shipped in the Ruckus Master case, as shown in the last two listing images.
Shipping is free in the 48 US states
Technical Specifications Performance • Max Throughput: Up to1.0 Gbps IP (1.7 Gbps PHY) • Client Capacity: 64 clients (WiFi Interop); 44clients (SRS) • Wireless Protocols: WiFi Interop, Spectrum ReuseSynchronization (SRS) Radio • MIMO & Modulation: 4x4:4 MIMO OFDM up to256-QAM • Bandwidth: 20/40/80 MHz channels; Tunable in 5 MHz increments for GPSSync; Tunable to standard WiFi channels for WiFi Interop • Frequency Range:5150–6400 MHz Restricted by country of operation • Max Output Power: 27 dBm •Sensitivity (MCS 0):-87 dBm @ 80 MHz-90 dBm @ 40 MHz-93 dBm @ 20 MHz Power •Max Power Consumption: 25 W • System Power Method: 802.3at compliant • PoEPower Supply: Passive POE compliant, 48-56 V Power over Ethernet supply withIEC61000-4-5 surge protection Physical • Dimensions: Height: 300 mm (11.81”)Width: 151 mm (5.94”) Depth: 85 mm (3.35”) • Weight: 1.75 kg (3.86 lbs) •Enclosure Characteristics: Outdoor UV-stabilized engineered polymer withintegrated mounting panel • Mounting: Dual-pole strap mount and slip on mountfor compatible antenna • Connector Type: Female Type N (x4) Environmental •Outdoor Ingress Protection Rating: IP67 • Operating Temperature: -40°C to +55°C(-40°F to 131°F) • Operating Humidity: 5 to 100% condensing • OperatingAltitude: 4,420 m (14,500’) max • Shock & Vibration: ETS 300-019-2-4 class4M5 Features • Gigabit Ethernet: 10/100/1000-BASE-T • CollocationSynchronization: 1PPS GPS TX/RX synchronization for collocated co channelradios; Adjustable up/downstream bandwidth ratio • Management Services: Cloudmonitoring and provisioning; SNMPv2c/v3; Syslog; HTTPS; HTML 5-based Web GUI;mDNS support; IPv4 and IPv6 • Smart Spectrum Management: Active scanmonitors/logs ongoing RF interference across channels (no service impact);Dynamic auto optimization of channel and bandwidth use • Security: WPA2; AES;RADIUS; 802.1x authorization • VLANs: Per subscriber VLAN; Management VLAN; CPEdata VLAN; Pass-through mode; Untagged traffic control; DSCP-COS mapping • QoS:Supports 3 user-configurable QoS levels for SRS (GPS Sync) (CBWFQ); BehaviorAggregate (BA) and CoS Classifier, with user configurable precedence • GPSLocation: GNSS1 (GPS + GLONASS) Regulatory + Compliance • Approvals: FCC Part15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502 • RoHS Compliance: Yes• Safety: UL/EC/EN/ 60950-1 + CSA-22.2 A5c Backplate
