Product description Features:

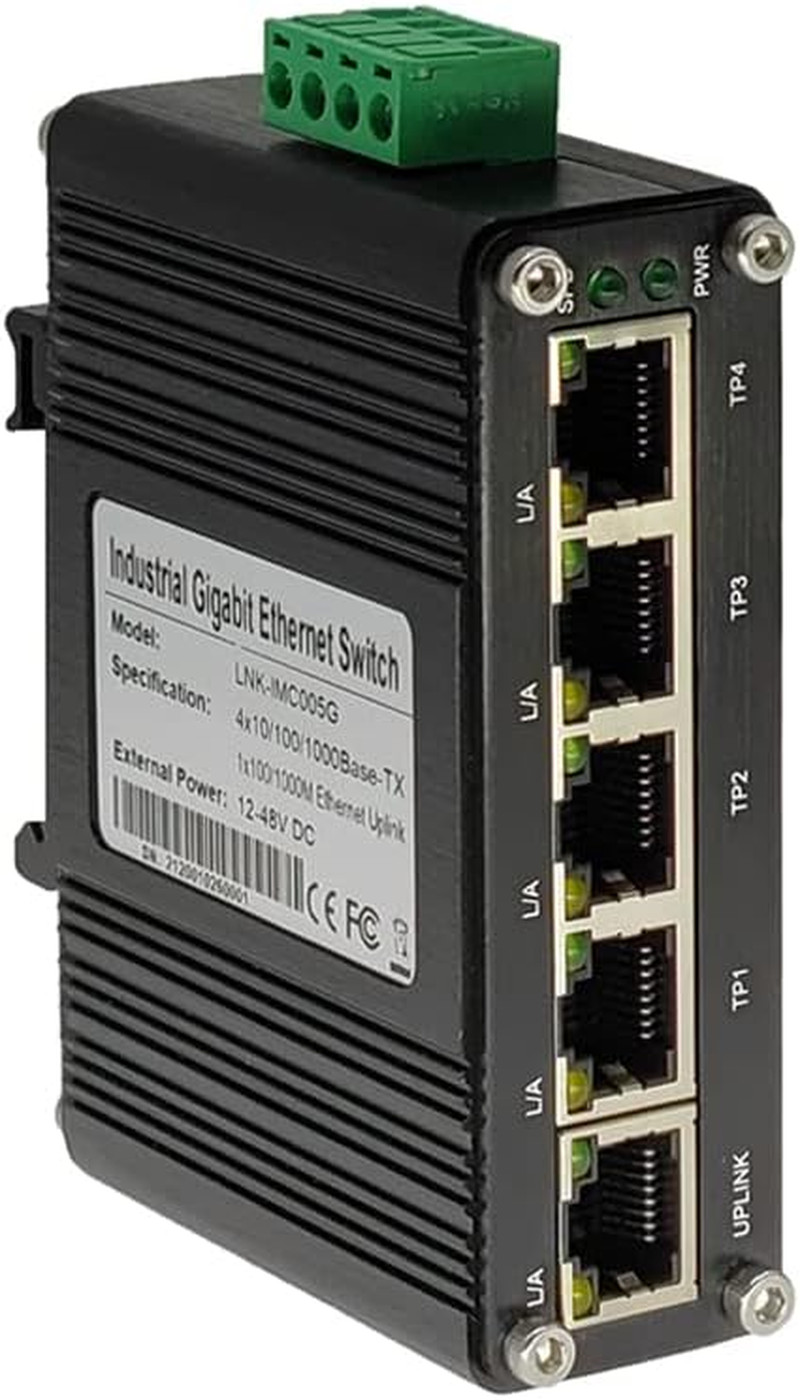

- 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
- Supports 802.3x Flow control
- Industry standard design, dustproof and close design IP40, rugged high-strength metal case
- Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE 802.3x flow control
Regarding the choice of power supply:
The wattage of the 5 ports switch during operation is relatively small, the power supply of 12V/0.5A and above can be selected within the input voltage range of 12~48V. However, for the stability of the work, 12V/1A power supply and above are recommended. Of course, we also have a listing of power supply , you can order directly.
Compact Size:
Mini switch is 20% smaller than other switches
Only need small space to install
Casing Material:
Industrial grade components and aluminum housing
(Waterproof grade: IP40)
Voltage Range:
12~48V DC power input
It's better to adapt unstable working voltage
Installation Method:
Din-Rail & Wall Mount
Easy to install switch on the din-rail rack mount and wall
Applications: Mini industrial 5 ports gigabit ethernet switch can be used in the field of video surveillance and network solution
Package:
- 5-Port Mini Industrial Ethernet Switch x1
- Wall Mounting Kit x1
- Gigabit Ethernet Switch User Manual
Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 3.8 out of 5 stars 29 4.2 out of 5 stars 103 5.0 out of 5 stars 1 2.6 out of 5 stars 2 5.0 out of 5 stars 1 4.3 out of 5 stars 5 Price — no data $145.00$145.00 $145.00$145.00 $105.00$105.00 $146.00$146.00 $192.72$192.72 Type USB 2K HD Microphone Webcam Magnetic levitating pen floating pen business gift 2 Ports industrial Gigabit PoE injector 30W 2 ports Ethernet Switch with 2 SFP ports 4 ports Ethernet Switch with 2 SFP ports Mini 3G SDI Video Fiber Optic Converter
- 10/100/1000Mbps Ethernet – The Industrial 5 ports Ethernet Switch have 5 RJ45 ports 10/100/1000Mbps half/full duplex.
- Small Size – The 5 ports Ethernet Switch size is 3.74x2.76x1.18in, it only need small space to install.
- ELECTRO MAGNETIC COMPLIANT & Surge Protection – Industrial DIN-rail switch complies with CE EN 55022 Class A standards, with surge protection design.
- Industrial Grade Quality – The Hardened Mini Gigabit Switch use industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.
- Din-Rail & Wall Mount –The media converter come with 35mm Din-rail Clip and Wall mount accessories.
