Product description
Ultra-compact Gigabit Fiber Media Converter 10/100/1000Base-Tx to 100/1000Base-FX SC 20km SM 1310nm
Ultra compact Fiber Media Converter Small Size Gigabit Media Converter SM 20km
Overview - Ultra Small Gigabit Ethernet Media Converter
LNK-M3011 series 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10/100/1000 Base-T, and 100/1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 100/1000 Base - SX/LX. It extends the transmission distance of network from 100m via copper cable to 20km (Up to 120km) via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber. This media converter is super mini in size, it's easy to install and integrated in other equipment. It supports both 100M and 1000M on fiber port, that makes it compatible with more devices.
IP Over Fiber Transceiver Copper to fiber converter Gigabit Converter SC 20km 1310nm
About this item:
Specification:
-- Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
-- Fiber Port: SC - 100/1000M adaptive
-- Wavelength: 850nm/1310nm/1550nm
-- Power supply: DC 5~15V
-- Power consumption: <3W
-- Weight: 46g(0.11lb)
Features:
Converts 10/100/1000Base-T to 100/1000Base-FX
Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
Build-in SC fiber module, support both gigabit and Fast Ethernet
Maintaining temperature: -20°C to 60°C (-4°F to 140°F)
Single-mode Duplex SC fiber port, up to 20km

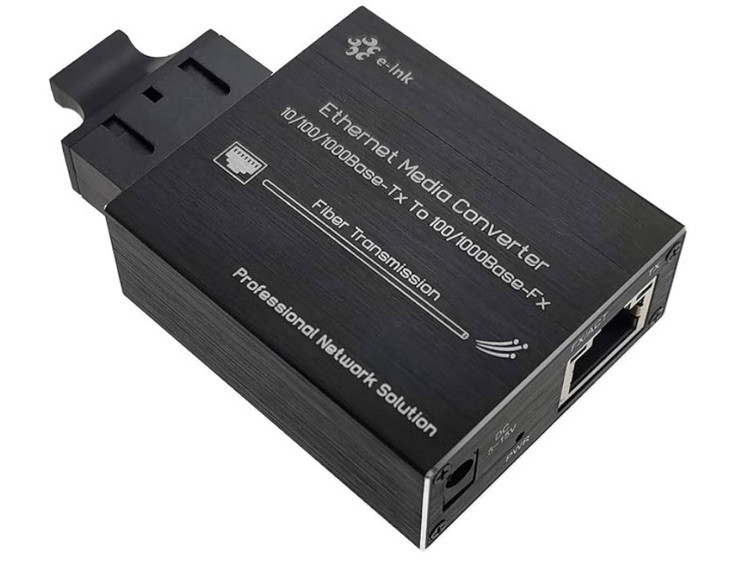

Ultra Compact Single Mode Gigabit Fiber Media Converter 20km SM 1310nm
This Mini Media Converter size is 62 x 44 x 18 mm(2.44x1.73x0.71inch), even smaller than other similar Ultra compact design. It’s easy to install or integrated in other equipment such as IP camera housing, wireless ap. You only need very small space to install this converter.
What's in the package:
LNK-M3011(SC fiber media converter) x1
Power Adapter x1
User Manual x1
Micro Mini 10/100/1000Mbps RJ45 Ethernet to Fiber Media Converter Duplex SC SM 20km 1310nm
Auto Sensing 100/1000Base-FX
The SC Fiber port Support 100/1000Base-FX, it’ll switch backwards to 100Mbps when it detect the optical port on other side is 100Mbps. So It can connect to both Fast Ethernet media converter and Gigabit media converter.
