Please select the product you need based on the parameter table in the picture
10 RJ45 PoE (48-57V Input)
►10 x 10/100/1000BASE-T ports►10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-8)►48~57VDC redundant power input ►Supports 802.3x Flow control►Supports DIN-Rail installation►Up to 240-watt PoE budget►Industry standard design, dustproof and close design IP40, rugged high-strength metal case ►-40°C to 80°C (-40°F to 176°F) operating temperature

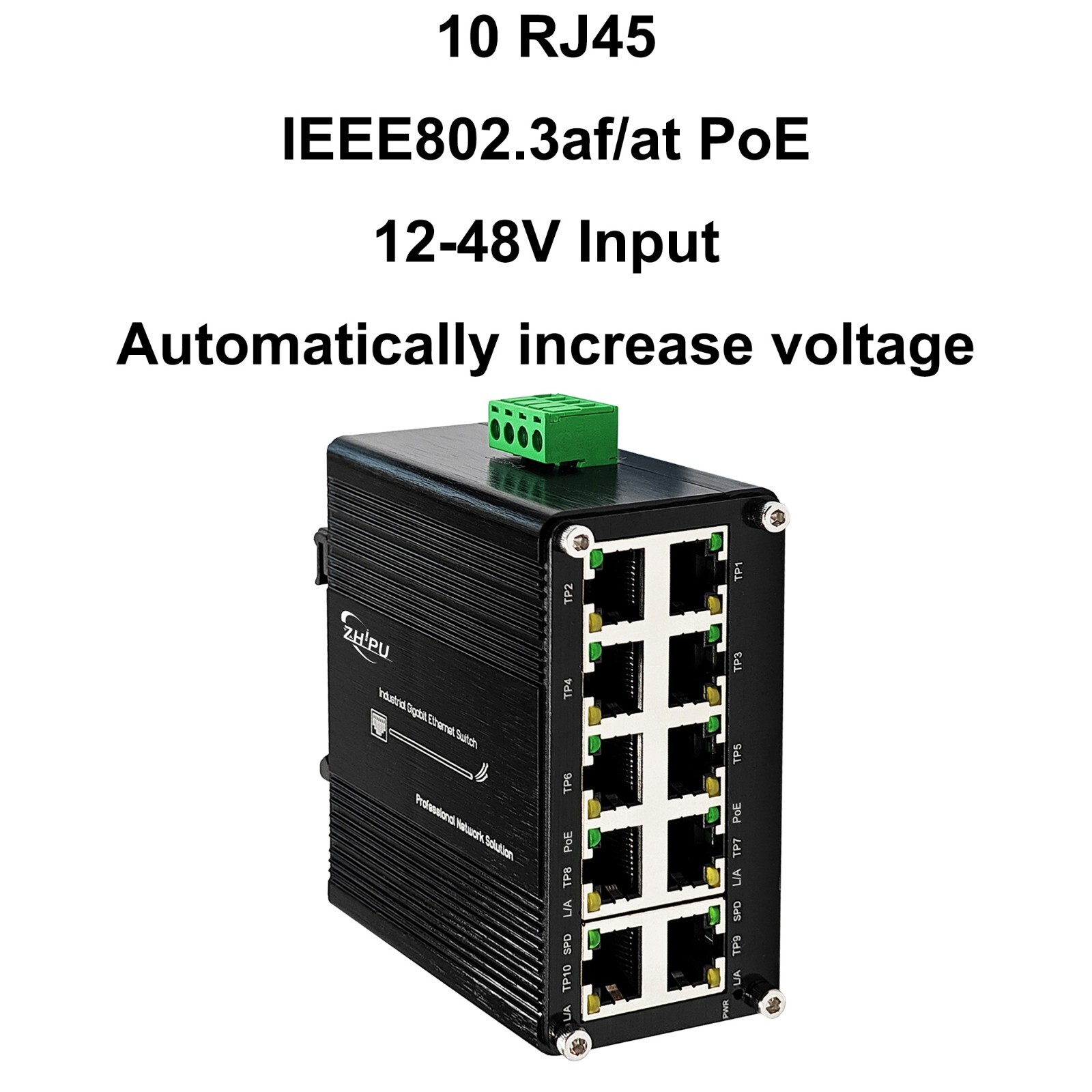

10 RJ45 PoE (12-48V Input)
Automatic voltage increase
►10 x 10/100/1000BASE-T ports
►10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-8)
►12~48VDC redundant power input, PoE output power increases as the input voltage rises. For a 12V input, the output is 60W; for a 24V input, it is 120W; and for a 48V input, it is 240W.
►Supports 802.3x Flow control
►Supports DIN-Rail installation
►Up to 240-watt PoE budget
►Industry standard design, dustproof and close design IP40, rugged high-strength metal case
►-40°C to 80°C (-40°F to 176°F) operating temperature
