Use :
Mounts on the mini PCI EXPRESS port of laptop PCs (52 pins).
Compatibility:
Drivers for Windows 11, 10, 8.1, 8, Windows 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or higher.
Specifications:
PCIe 2.0.
MiniPCIe “full” or “Mini” compatible.
Compatible with “PCI-E Mini Card Electromechanical specification revision 1.2” specifications.
EXAR 17V354 CHIPSET.
RS232 INTERFACE:
4 RS232 COM ports,
Standard UART,
256-bit FIFO,
Maximum transfer per port 230.4Kbps,
Voltage adjustment on the DB9 plugs by jumper on the card: 5V, 12V or RI signal,
Compatible with 7 and 8 "data bit" formats,
Compatible with parities "Even", "Odd", "None", "Space", "Mark",
Compatible with 1 or 2 “Stop Bit”,
15KV ESD protection on each port.
Supports sleeping.

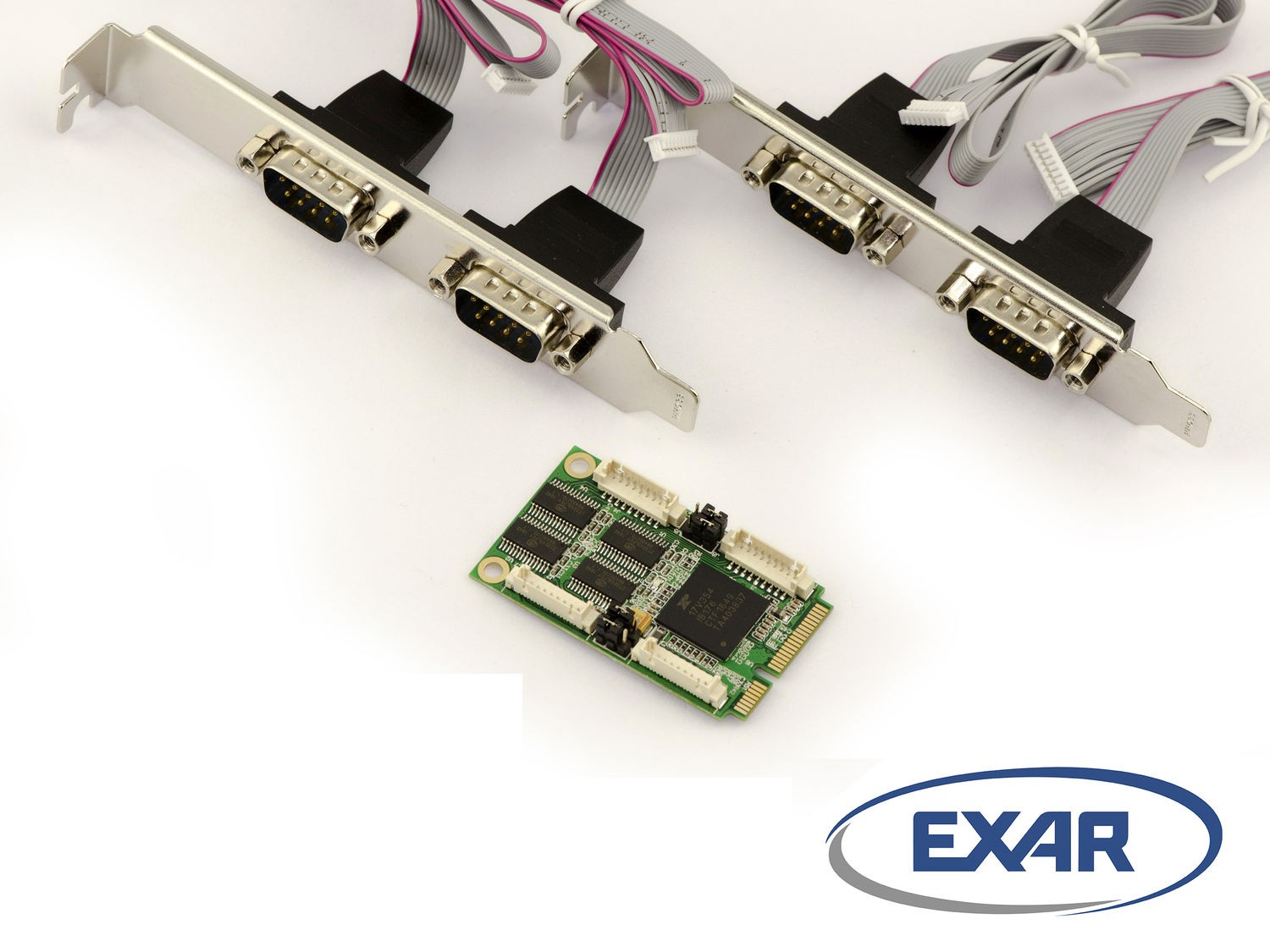

Card supplied with 2 extension brackets each supporting 2 COM ports (male DB9 plugs).
