Use :
Mounts on the mini PCI EXPRESS port of laptop PCs (52 pins)
Compatibility:
Drivers for Windows 11, 10, 8, Windows 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or higher.
Specifications:
PCIe 2.0 (backward compatible 1.0a).
Single lane PCIe, bandwidth 5.0/2.5Gbps.
MiniPCIe “full” or “Mini” compatible.
Compatible with “PCI-E Mini Card Electromechanical specification revision 1.2” specifications.
NEC RENESAS D720202 CHIPSET.
USB 3.0 SUPERSPEED, 5 GBps full duplex.
USB 2.0 High Speed (480Mbps) and USB 1.0 Full Speed (12 MBps) compatible.
Compatible with power saving devices (PCI-Bus Power Management Interface specification revision 1.2).
The card has two 19-point connectors supporting two USB3.0 ports, we provide 19-point cords to "classic" USB A female plugs.
XHCI 1.0 (Intel Extensible Host Controller Interface) compliant.
Maximum power supply of USB3.0 ports: 900mA at 5V.
A Molex plug on the card will allow you, if you wish, to connect an external power supply (optional) for more power supply.

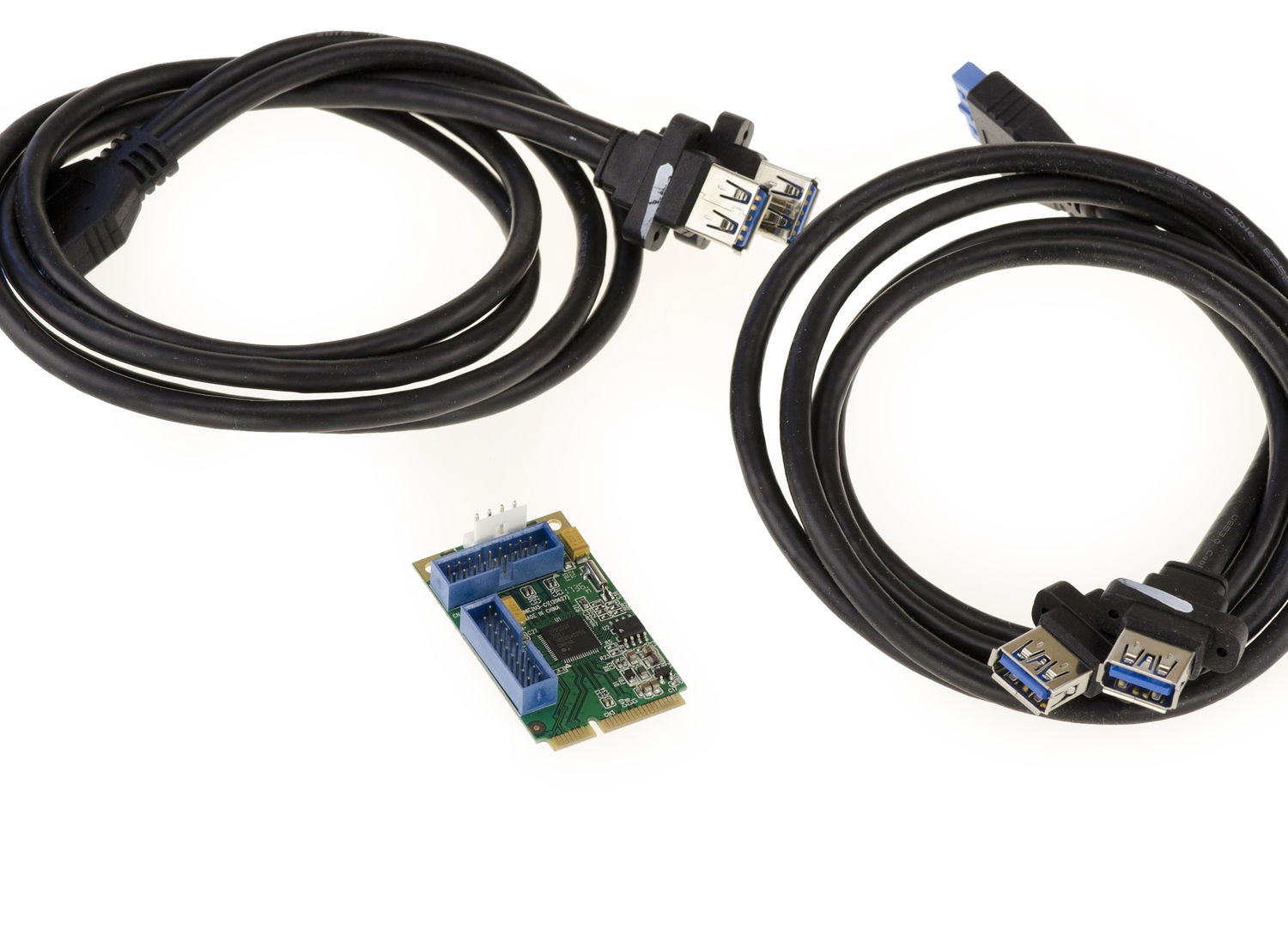

The MiniPCIe card is sold with two USB3 brackets which connect to the 19-point ports and provide two "classic" female USB3 A plugs (per bracket) to easily connect any USB3 device.
