Single 250µm fiber. 1.4mm diameter after shrinkage, Length 40mm (35mm/30mm/25mm/15mm is optional)

Premium Quality, Competitive price, support wholesale

Overview:

PMD Series Micro type are high quality, long-term reliability Fibre Optic Fusion Splice Protection Sleeves. Designed to restore the mechanical strength, environmental protection and optical performance of single optical fiber after fusion splicing.

The product tested and positively evaluated by many customers. Stiffness of connection and quickness of assembly are the basic advantages of this solution.

We offer a good product in very good price on this sale the sleeve. Don't hesitate to order one pack, We guarantee, next time you order more.

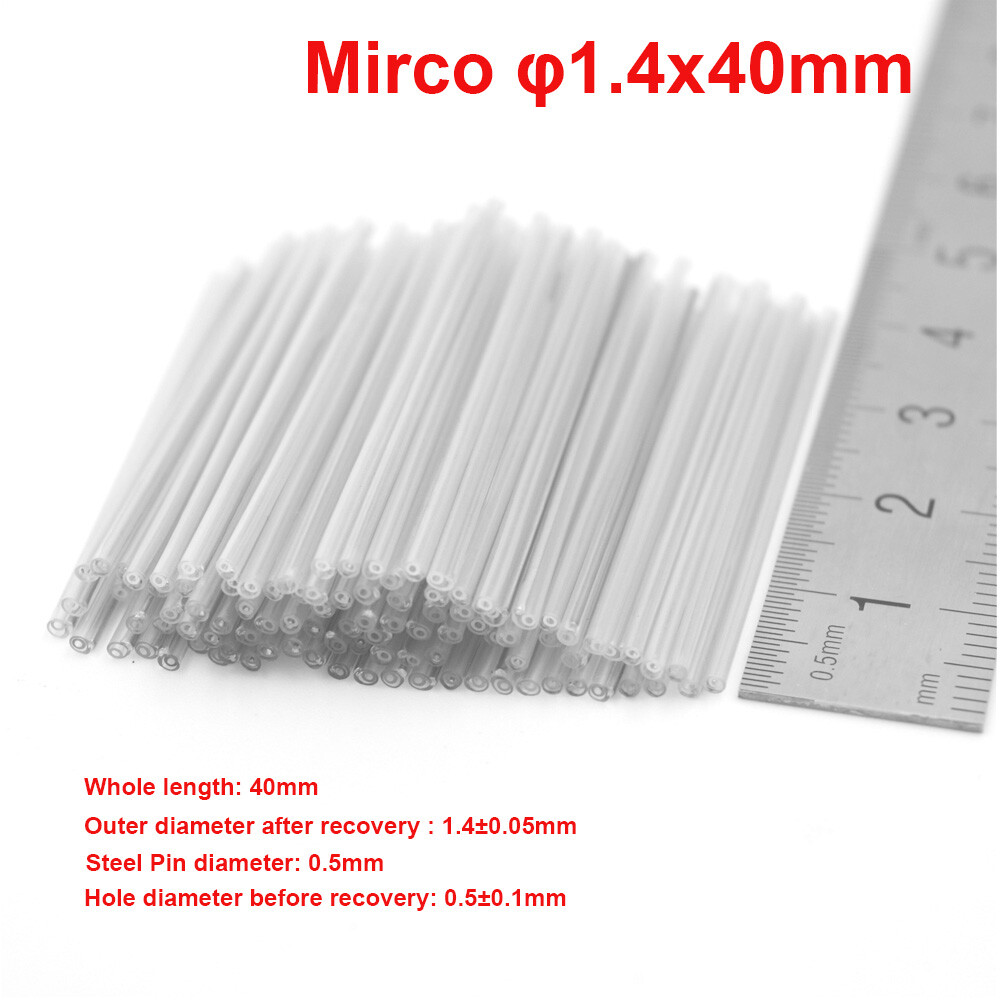

Product specifications

1. Whole length: 40mm
2. Outer diameter after recovery: OD1.4 mm +/- 0,1mm
3. Hole diameter before recovery: OD0.35 mm
4. Stainless steel needles diameter: OD0.5 mm
5. Minimum installation(shrinking) temperature: 110°C
6. Max installation time: 60 seconds
7. Standard color: Clear
8. Low Temperature property: No crackle at -55°C lasting 4 hours
9. RoHS compliant
10. Packing: 100 pcs per bag (Others for special order)

Description:

1. High quality and reliability with Industry Standard

2. Specialist Manufacturer with 15 years proven reliability

3. Single fiber entry hole for faster installation

4. Encapsulated reinforcing pin

5. UL Approved high quality materials

6. Compatible with most fibers, splice trays and ovens

7. Over one Million GT/PMD series held in stock

Key Features:

1. Clear sleeve make it easy to detect splice before shrinkage

2. Airproof structure keeping the splice point's good resistance of humidity and temperature

3. Strength member is made from "Full hard" stainless steel of 304 grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 grade gives better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing

4. Easily use and avoid any damages to the optical fiber during installation

MATERIAL SPECIFICATION

1. Application Type: Single Fiber 250µm

2. Compatibility: Most splice trays, ovens and coated fibers

3. Outer Material: Cross-linked Polyolefin Heat Shrinkable Tubing +135°C MIL Spec.

4. Inner Material: Hot-melt adhesive Ethylene Vinyl Acetate (EVA) Copolymer

5. Reinforcing Pin: Stainless Steel 304 with polished and rounded edges

6. Colours: Clear for easy visual inspection

7. Splice Operating Temperature: -40°C to +70°C (Heat shrink outer rated at -55°C to +135°C)

8. Storage Temperature: -40°C to +70°C

9. Package Quantity: Bags of 100pcs.

Packing Contents

• 1000pcs x Mrico fiber splice protection sleeve
