Mitac X-145C 145W Switching Power Supply Compaq Presario 7470 124848-001

This is a switching power supply unit rated at 145W maximum output. It was designed for the Compaq Presario 7470 desktop computer and converts AC mains power to regulated DC voltages for internal components.

Specifications & What's Included

• Model: Mitac X-145C; MPN: 124848-001 / 127999-001


• Power Output: 145W max


• AC Input: 100-127V / 200-240V AC, 50-60Hz


• DC Outputs: +5V (14.0A), +12V (3.5A), +3.3V (8.0A), -5V, -12V, +5VSB (0.72A)


• Combined +5V & +3.3V max: 90W


• Form Factor: Desktop; all output cables attached


• Certifications: UL, CE, FI, HIPOT, CONT OK, supply type was standard in mid-1990s Compaq Presario systems and similar desktop computers of that era. It provides the multiple regulated voltage rails required by motherboards, drives, and expansion cards. The unit is compatible with Compaq Presario 7470 systems and similar form-factor industrial/commercial desktop platforms that use this connector standard.

  Condition: Used

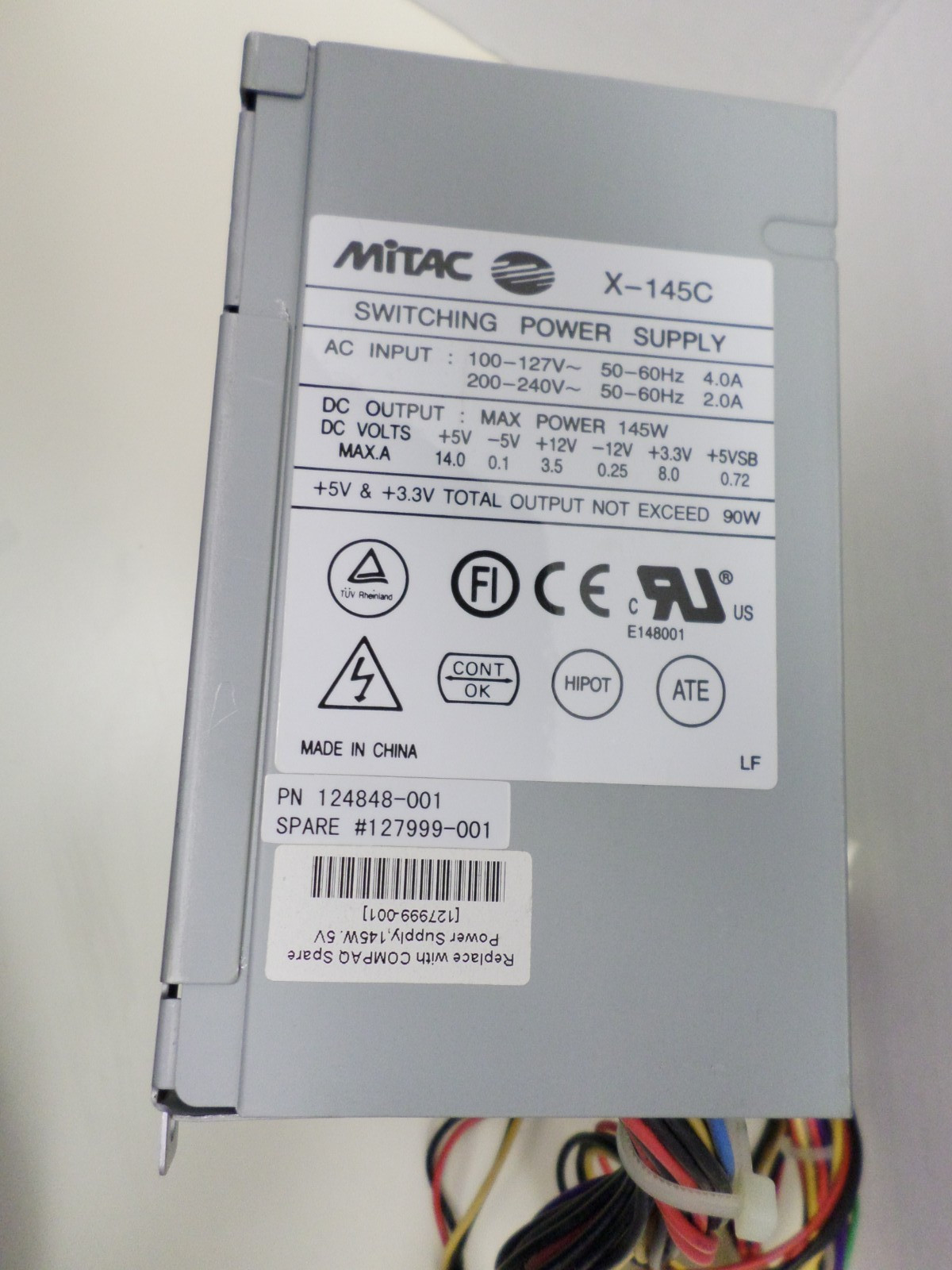

  This MiTIC X-145C 145W switching power supply has been tested at our facility and is in good working order. The unit is cosmetically consistent with normal used service life — the housing shows light surface scuffs and minor wear typical of a desktop power supply pulled from active use. All output cables and connectors are present and intact, as shown in the photos. The label is clean and fully legible, displaying the model number, part numbers, and all electrical ratings clearly. Please view our photo set and contact us if you have any questions.
