SpecificationELECTRICAL SPECIFICATIONS
Frequency dBi
V.S.W.R<1.5Input Impedance50ΩHPBW (3dB)
360°H-planeMaximum Power ProtectionDirect GroundMECHANICAL SPECIFICATIONSConnector TypeN male
Net Weight0.3kgRadome ColorWhiteRadome Material
FiberglassHold Pole Diameter

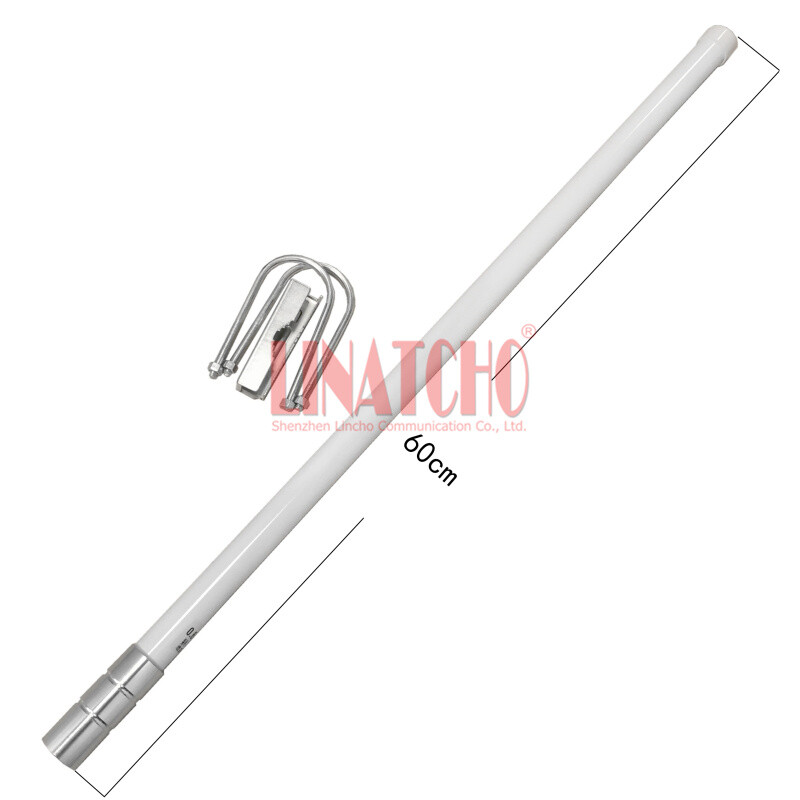

φ25 (mm)Length60cmProducts DescriptionOperating on all 2G 3G and 4G frequencies most countries in the world, this high grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network.This is the ideal antenna for mobile phone repeater indoor and outdoor systems. The Omni Antenna will provide the perfect solution for voice and data applications. Perfect for repeater applications that require a 360° beamwidth for complete internal coverage.FeaturesSuitable for all mobile carriersOffers a 360° beam width for complete coverageN male connector, It can be used with a magnetic base on the roof of carsFiberglass and brass constructionIdeal for mobile phone repeater applications for marine and caravan
