Multi-Tech Systems MTCDP-EV2-GP N3-1.0 Deployment Models (includes GPS receiver) – NEW

Manufacturer: Multi-Tech

Model: MTCDP-EV2-GP

Antenna P/N: ANGSM-GPS-1MM
Description: EV-DO Programmable Gateway w/o Accessories (Verizon) – Dual-band800/1900MHz

TheMultiConnect® OCG-Dopen communications gateways comprise an open Linux development environment anda fully certified hardware offering that includes multiple interfaces (serial,USB, Ethernet and SD card) and internal peripherals (including a cellular modemand a GPS receiver) in one application-ready end user solution.
Applications that require device networking capability can now be embeddeddirectly onto select Multi-Tech hardware. The MultiConnect OCG-D bringstogether a cellular hardware development kit and Multi-Tech’s CoreCDP, adistribution version of the Linux operating system and complete Linux buildenvironment, to create custom applications in a very short period of time. TheMulti-Tech MultiConnect OCG-D provides a flexible, quick and cost-effective wayto bring your solution to market.

MTCDP-EV2-GP-N3-1.0:

3G EV-DO Deployment Model for Verizon Wireless (includes GPS receiver)

HardwareSpecifications

Processor& Memory

400MHz ARM9 CPU

256MBNAND flash

64MBSDRAM

2GBindustrial grade SD Flash Card (included)

InternalPeripherals

RTC(Real Time Clock)

DedicatedGPS receiver

Cellularmodem

Debug3 pin serial console port

Temperaturesensor

Connections

LAN:RJ-45, 10/100BaseT

RS-232Data: DB-9 female, 921.6K bps max serial speed

GSM/GPSAntenna: 50 ohm SMA female

Power:2.5mm miniature screw

SIM:Standard 1.8V & 3V SIM receptacle

USBHost: USB 2.0 Full Speed (12 Mbps)

Hostconnector USB Device: USB 2.0 Full Speed (12 Mbps)

mini-Bdevice connector

GPIO:36-pin Molex connection

SD Memory Flash Card: SD memory card slot

Item is new, in original open packaging,antenna is sin sealed box as shown on the images.
Accessories are included: power supply and documentation as shown on theimages.

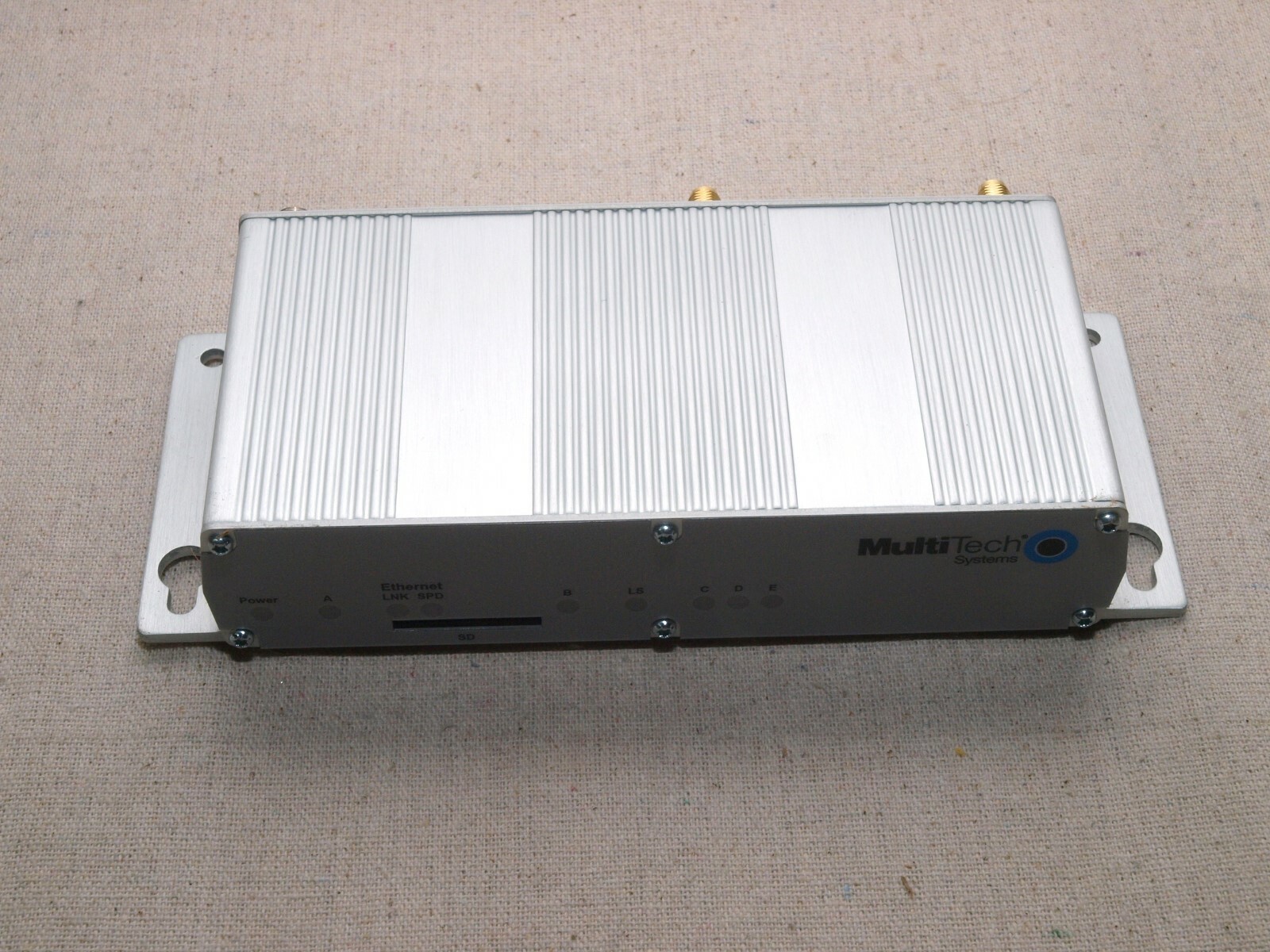

The pictures are showing the actualproduct the buyer is getting.
