Multimode ST Gigabit Fiber Media Converter - Built-In ST Fiber Module 550 M (0.3 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

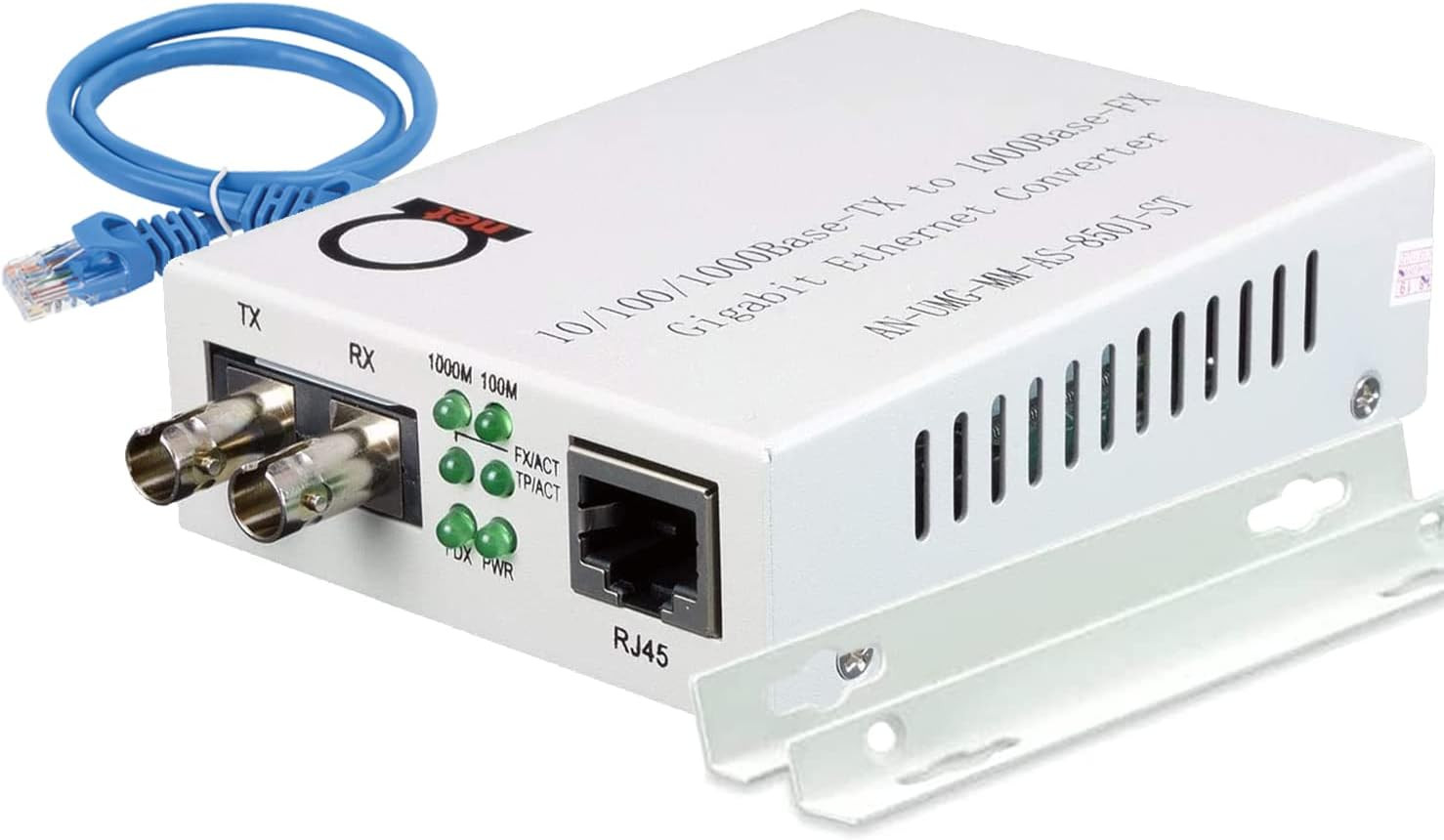

Multimode ST Gigabit Fiber Media Converter - Built-In ST Fiber Module 550 M (0.3

Price: US $114.59

Multimode ST Gigabit Fiber Media Converter - Built-In ST Fiber Module 550 M (0.34 Miles) 850 Nm - to UTP Cat5E 10/100/1000 RJ-45 – Auto Sensing Gigabit or Fast Ethernet - Jumbo Frame - LLF Support

AUTOMATICALLY adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed And Extends in over Multi Mode Fiber to up to 550 m – 0.34 miles - (Transmission Wavelength -– 850 nm, ST connector)
Supports Dual Speed Fiber Mode (configurable by dip switch) – Select 1000Base-SX or 100Base-SX – interconnecting with existing fiber nodes is easy with this media converter. Wavelength – 850nm, Use it with Multimode Fiber Only.
SUPPORTS Jumbo Frame & LLF feature - for increased end-to-end TCP performance
PLUG & PLAY - Simply plug in an ST optical port and UTP RJ-45 port, and it will work immediately
FREE UTP Cat5e Patch Cable (1m - 39in) Comes In The Set With Every Unit! - Colors May Vary Depending on Stock;

Product description Plug-n-Play Solution to Extend Ethernet over Multimode Cables up to 550m (0.34 miles) – High Performance 850 nm Wavelength SFP module pre-installed ST Multimode Gigabit 550m (0.34 mi) Built-In Fiber Module Media Converter

Extend your Gigabit or Fast Ethernet Network Over Multi Mode Fiber Up to 550 m (0.34 miles) using 850 nm ST transceiver Based Media Converter With Ease

AN-UMG-MM-AS-850J-ST Multimode Fiber Media Converter Will Automatically Detect 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port

You just need plug in the cables and it will work right away!

Powering it up?

Easy, it will come with an AC power adapter in the set, just plug it in!

Sturdy, Stable, and Easy To Use

Supports Jumbo Ethernet Frames up to 9000 bytes (if needed, configurable by dip switches);
Supports QinQ and VLAN's - MTU size big enough to pass them through;
One 1000Base-SX Multi Mode Dual Fiber port Port with ST type connector - up to 550m (0.34 miles) distance using 850 nm wavelength
One 10/100/1000Base-T RJ-45 port Autosensing featured - adapts to all 3 speeds!
Compliant with IEEE 10/100/1000Base-T and 1000Base-SX
Connect it to Gigabit or Fast Ethernet ports
When used standalone (paired with other devices), be sure to check that wavelengths match - 850 nm used in these converters.

Versatile Protocol & Features Support

Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-SX
Transmission Wavelength – 850 nm, Fiber Connector Type: ST
Power supply: 100 to 240VAC 50 to 60Hz
Dimensions: 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H)
Environment: Relative humidity; 5% to 90%
Operating temperature: 0 to 70 degree Celsius (32 - 158 F)
Supports LLF feature - Link Loss Feature - (if needed, configurable by dip switches)

Technical Specifications Fiber Port ST Connector, Multimode Cables Supported, OM1/OM2/OM3/OM4 & other Fiber Transmission Wavelength 850nm Ethernet Port RJ-45 10/100/1000Base-T RJ-45 port autosensing featured or set to 100M by dip switch, default gigabit MTU size Supports Jumbo Ethernet frames up to 9000 bytes Broadcast Storm Control Additional Dip Switch to turn the feature on/off Link Loss Feature Supported (Turn it on/off via dip switch) Standards Supported IEEE802.3z/ab 100/1000/1000Base-T 1000/1000Base-SX 850nm Environment Relative humidity; 5% to 90% Power supply 100 to 240VAC 50 to 60Hz (you get AC/DC US Plug power adapter in set) Operating temperature 0 to 70 degree celsius Dimensions 70.5mm(L)X94mm(W)X26.5mm(H) MTU size Supports Jumbo Ethernet frames up to 9000 bytes Fiber Port Dual Speed Feeature Supported, use Dip Switch to toggle between 100MB and 1000MB Optional Dip Switch Settings - Even More Flexibility!

Broadcast Storm Control On/Off
Ethernet Speed on RJ-45 port forced to 100M or Autosensing 10/100/1000M
Fiber Port Speed 1000SX (Gigabit) or 100SX Fast Ethernet
LFP (LLF) feature On/Off

By default, all DIP switches are set to 'off,' accommodating 99% of applications seamlessly. Unsure about adjusting settings? Our support team is eager to assist you, ensuring a hassle-free setup.

All Universe of Ethernet Devices Supported

While in most cases, you will have LAN switches, WiFi routers, or regular PCs connected to a media converter UTP port - this versatile converter will still work with any standard Ethernet port device!

Scale Up Your Network as You Grow!

Autosensing 10/100/1000 Gigabit Ethernet port auto adapts to Fast Ethernet speed device as well.

+ you get free wall mount ears. desktop use rubber buttons and RJ-45 Cat6 Patchcord in set

Item Weight 14.1 ounces Item model number AN-UMG-MM-AS-850J-ST Product Dimensions 3.7 x 2.76 x 1.04 inches Is Discontinued By Manufacturer No
