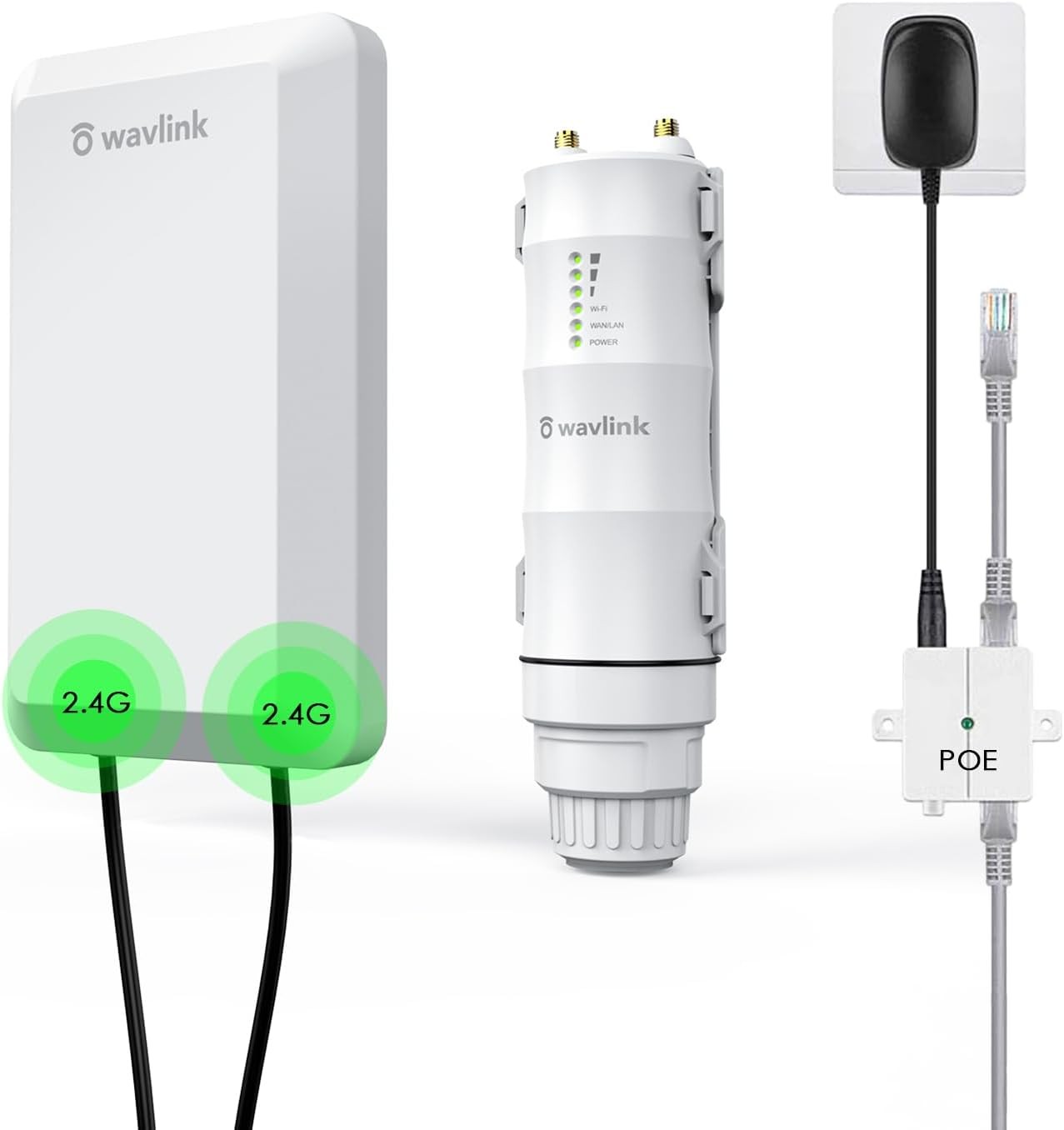

N300, 2.4Ghz, 11dBi Antennas(Built-in), PtP up to 1.5KM Wavlink Wireless 2.4GHz 300Mbps Long Range Outdoor AP/Repeater CPE Kit for PtP and PtMP Transmission |
Point to Point WiFi Bridge | 2*2 MIMO 11dBi Antenna, 1.5km | Passive PoE Powered | Extend WiFi Network | Weatherproof Enclosure
★1.5km Wireless Data Transmission: Specially designed for outdoor uses, ideal for long distance wireless data transmission over
1.5km(only for paired PtP or PtMP transmission), tested in the barrier-free field. Built-in 11dBi directional antennas can
significantly improve the transmission and reception performance of wireless signal.
★ Excellent WiFi Access "Helper": It supports up to 64 devices and provides 300Mbps high speed with 100M Ethernet port and
2*2 MIMO antenna. Point to Point/Multi-Point connection (1-4) can be used for elevator monitor/surveillance networks.
Simple settings can achieve wireless optimization, and improve the quality and effectiveness of link transmission.
★Built for Outdoor Wi-Fi Coverage: IP65-rated waterproof housing that ensures continued operation on harsh outdoor environments or
in climates of extreme cold, heat or continuous moisture. Lightning protection and weatheproof design ensure stable connection in harsh
outdoor conditions. Note: The PoE part of the router is not waterproof.
★Flexible Deployment：24V passive PoE adapter supports up to 80 meter (262 feet) deployment, for easier installation and lower cost.
And it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
★Multi-Working Modes Accessible: Supports AP/Router/Repeater Mode, which can meet your network requirements in different environment.
200 meters wireless data transmission range specifically determined by the environment and the antenna gain and power of the client.
What You Get:
1x Outdoor Wi-Fi range extender;
1x Directional antenna panel;
1x Main body holder;
1x PoE converter;
1x RJ-45 network cable;
1x Screw/Bracket fitting kit;
1x Power adapter;
2x Cable ties;
1x Quick start guide;
1xInstallation instruction.
Installation Instruction
Installation Height: Keep the height of the flat antenna 2-3 meters above the ground without obstruction,
and 1-2 meters horizontal drop from the network terminal (mobile phone, surveillance camera).
Installation Direction: The signal facing the front of the panel antenna is much stronger, please pay attention to
whether the front and back of the antenna panel are facing correctly when installing.
Installation Steps: Support flexible deployment on the wall or on the round pole. For detailed steps,
please refer to our step-by-step diagrams in this page or installation instructions in the package.
Please Note:
* The real performance of the product may vary in accordance with different environmental conditions.
* If your device is damaged or defective, please contact our customer service for more details.
* All pictures shown on the package are for illustration purpose only.
* The PoE part of the router is not waterproof.
AX3000 WiFi 6, 2.4Ghz, 12dBi Antennas(Built-in), PtP up to 3KM
WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi6 Anytime & Anywhere
WN573HP3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use:
Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under
harsh outdoor conditions; 4 x built-in 12dBi high gain antennas provide better wireless performance and
super fast transmission rates; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet
speeds of 3000Mbps (2.4GHz 573Mbps+5GHz 2402Mbps); Supports MU-MIMO and Beamforming technology,
allowing up to 256 devices to be connected simultaneously in a wider range.
How to install the Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
Note: The PoE converter is not waterproof, please install it indoors.
Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
How to install the product on a column?
①Stick two silicone pads on the bracket and post respectively.
②Thread the cable ties through the fixing point of the bracket.
③Fix the product to the post with cable ties.
573Mbps on 2.4G & 2402Mbps on 5G
Dual band AX3000 provides smoother online surfing experience and stronger anti-interference capability.
2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.
Access More Devices
Connect up to 256 devices simultaneously, making it ideal for large spaces such as factories, communities, streets, and more.
Specification
- Model: WL-WN573HP3
- Product Size: 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 1050g/37oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 12dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- Seamless and stable WiFi Mesh makes you enioy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Supports Fat AP Mode.
- Supports Fit AP Mode with WAVLINK AC controller.
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤The real performance of the product may vary in accordance with different environmental conditions.
In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 1 × 54V Power Adapter
- 4 × Cable Ties
- 1 × PoE Converter
- 2 × Silicone Pads
- 1 × Ethernet Cable
- 1 × Main Body Holder
- 1 × PWM M4×8×8MM Screw
- 1 × Wrench
- 6 × KA M4×25×6MM Screws
- 1 × Quick Start Guide
- 6 × Φ8x25MM Screw Plugs
