Original NASA Apollo Saturn Rocket, Instrument Unit (IU), Telemetry Oscillator Assembly,Sub-Carrier Oscillator (SCO)
Historical Context:This is an exceptionally rare Sub-Carrier Oscillator from a unique "First Article" configuration of the Instrument Unit. The IU is the control center, functioning as the "brain and digital nervous system" of the Saturn Rocket.That unique IU configuration is the Telemetry Oscillator Assembly, specifically described in the NASA Apollo MSFC technical manual shown in the reference photos.This individual oscillator originates from the top level of the Telemetry Oscillator Assembly,Model A, Serial Number 001.The top level of this flight box assembly contains the Oscillator Array (also shown in the reference photos).
While standard Saturn Instrument Unit configurations required the Sub-Carrier Oscillators and the Data Multiplexer to be housed in separate flight boxes, this specific architecture was a rare, high-density variant. It uniquely integrated the multiplexer logic and the 18-channel oscillator array into a single, dual-stacked flight box to manage the rocket's F6 telemetry link. The assembly this component was removed from represents the baseline prototype for the integrated design and bore a Kennedy Space Center (KSC) Display marker, confirming its historical significance and preservation by NASA.
Flight Hardware Functional Significance:This Sub-Carrier Oscillator and the SCO Array were designed to operate as the final stage in translating the Saturn rocket's physical state into a transmittable radio signal. In this rare, integrated configuration, the SCOs worked in direct tandem with the Model 270 Multiplexer below them. While the multiplexer organized low-speed data (including propellant levels, battery voltages, and engine temperatures) into a pulsed sequence, the Oscillators converted that sequence, along with high-speed analog data like structural vibrations, into specific Frequency Modulated (FM) signals. This "stack" acted like a private radio station for the rocket, ensuring that hundreds of critical data streams could be broadcast simultaneously to Mission Control without overlapping or interference throughout the entire flight mission.This oscillator stands as a highly specialized piece of the Huntsville engineering legacy that successfully guided humanity to the Moon.
NASA Hardware (Flight Box Assembly) Data PlateProvenance:
NASA George C. Marshall Space Flight Center US
Telemeter Ass'y F6 802A459
Assembly Number 50M10679
Model Number A Serial Number 001Manufactured By Brown Engineering Co.Sub-Carrier Oscillator:

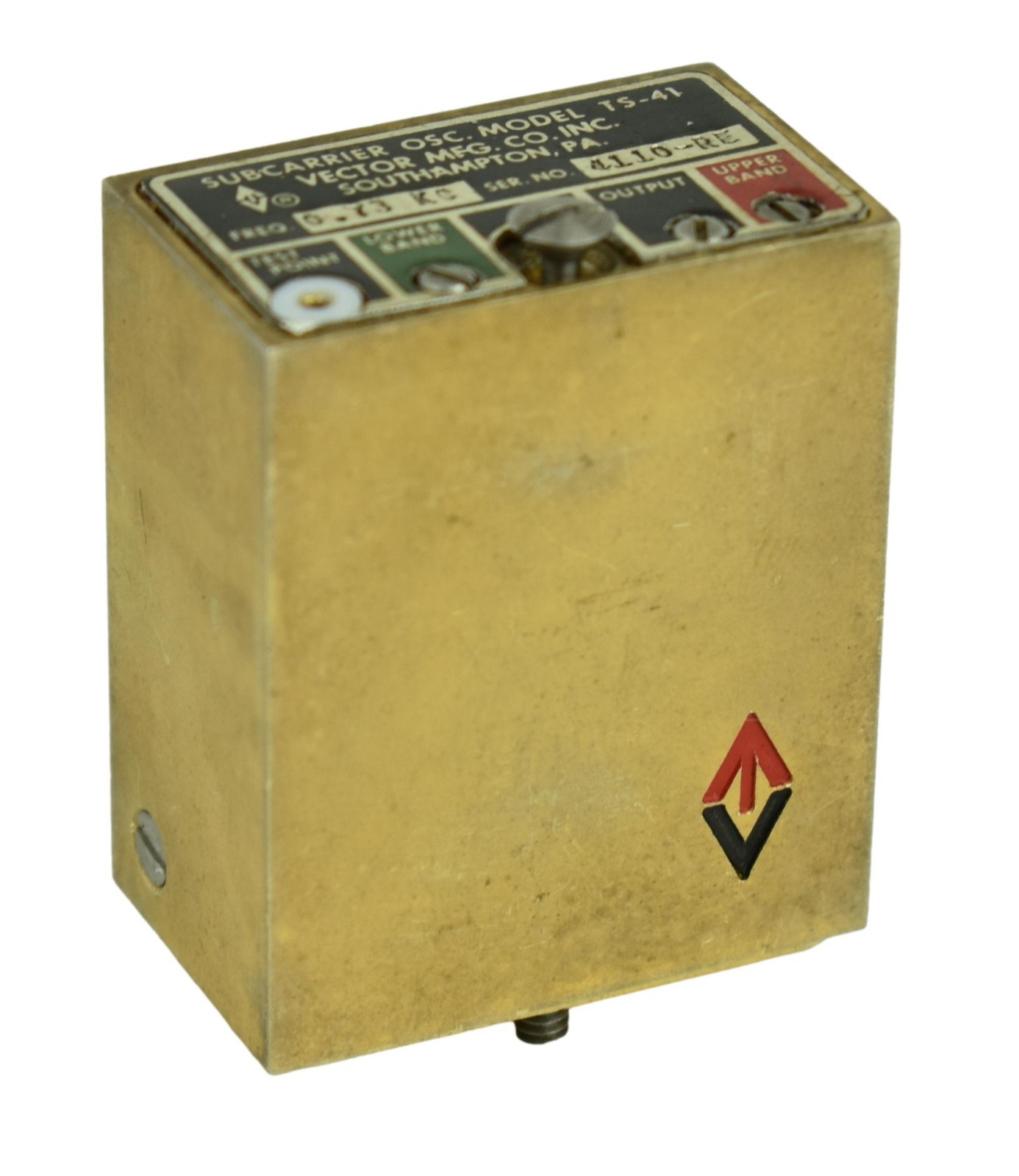

Sub-Carrier Oscillator Model TS-41
Vector Manufacturing Company Inc.
Southampton, Pennsylvania
Frequency 0.73 Kilocycles Serial Number 4110-RE
Test Point, Lower Band, Output, Upper BandApproximate artifact dimensions: 1.75 inches x 1.5 inches x 1 inch.
NASA Apollo engineer, Charles H. Bell, originally obtained this artifact from the Kennedy Space Center.
Please Note Regarding This Sale:This listing is for ONE (1) individual Sub-Carrier Oscillator only. The last 10 photos showing the complete black dual-stacked flight box, the interior levels, and the NASA technical manual pages are provided for historical provenance and reference only. The flight box that this circuit board originated from and the manual shown in the photos are not included in this sale. Everything included in this sale is shown in the first 6 photos of this listing.We require that all potential buyers read our 'FAQ and Terms of Sale' section, at the bottom of each listing, prior to purchase, offer or offer placement and inquiries.
