Description:
M1EVO is a remaster of the Small Form Factor (SFF) icon M1 Classic.
With significant improvements in compatibility, thermal ceiling, build quality, space efficiency, and value, M1EVO represents a material upgrade from the M1 Classic.
Combining three popular computer layouts into a single product, M1EVO represent the intersection of space optimization, thermal optimization, and premium build quality.
M1EVO V1.0 and V1.1 are made by FormD supply chain.
Item Specs:
Materials 3-15mm Aluminum, CNC Machined and Anodized1.0mm Steel, Powder Coated
Dimension (cm) 16 x 25.6 x 36.6
Foot Print (cm^2) 585.6 (less than A4 paper)
Volume (L) 14.99
Weight (KG) 3.5
Shipment Weight (KG) 3.5
Shipment Dimensions (cm) 8 x 30 x 40
Motherboard Mini-ITX, Deep-ITX, Mini-DTX, Micro-ATX
CPU Cooler Support
1. M1 Config: up to 135mm max height with 4-Slot GPU
2. M1 Flipped Config: up to 135mm max height with 4-Slot GPU
3. M1 Vertical GPU Config: up to 50mm max height with 4-Slot GPUPCIe Riser
1. M1 Config: Not Applicable
2. M1 Flipped Config: Not Applicable
3. M1 Vertical GPU Config: PCIe X16 4.0
Graphics Card Support
1. M1 Config: up to 142 x 359mm, 4-Slot thick (while Nvidia FE4090, FE4080 / FE4080 Super will fit with a 180 degree adapter, we don't recommend this combination in this Config)
2. M1 Flipped Config: up to 142 x 359mm, 4-Slot thick (while Nvidia FE4090, FE4080 / FE4080 Super will fit with a 180 degree adapter, we don't recommend this combination in this Config)
3. M1 Vertical GPU Config: up to 165 x 359mm, 4-Slot thick (requires a separate kit)
Drive Support Up to 9 x 2.5" or 3 x 3.5" drives based on components
Up to 15 x 2.5" or 5 x 3.5" drives based on components (requires a separate kit)
Fan Support Up to 8 x 120mm + 1 x 92mm based on components
Up to 6 x 140mm + 2 x 120mm + 1 x 92mm based on components
Liquid Cooling Support 1 x 120 Radiator / AIO
1 x 140 Radiator / AIO
1 x 240 Radiator / AIO
1 x 280 Radiator / AIO
2 x 240 Radiator combo (Top and Side combination will require a separate kit)
2 x 280 Radiator combo (Top and Side combination will require a separate kit)
3 x 240 Radiator combo (requires a separate kit)
2 x 280 + 1 x 240 Radiator combo (requires a separate kit)
Power Supply SFX Power Supply
SFX-L Power Supply
ATX Power Supply (requires a separate kit, and limited to 140mm deep ATX PSU for GPUs longer than 270mm)
Front I/O Power Button
2x USB-A
1x USB-C
1x USB-C passthrough adapter (supports USB 4.0)
Item Condition: Used - Excellent Condition
Inspection Report: Light Scratches - Installed Once - Version 1.0 Power Supply Bracket is designed for Corsair SF Series Power Plug Placement - Shipped Flatpack/Not Assembled

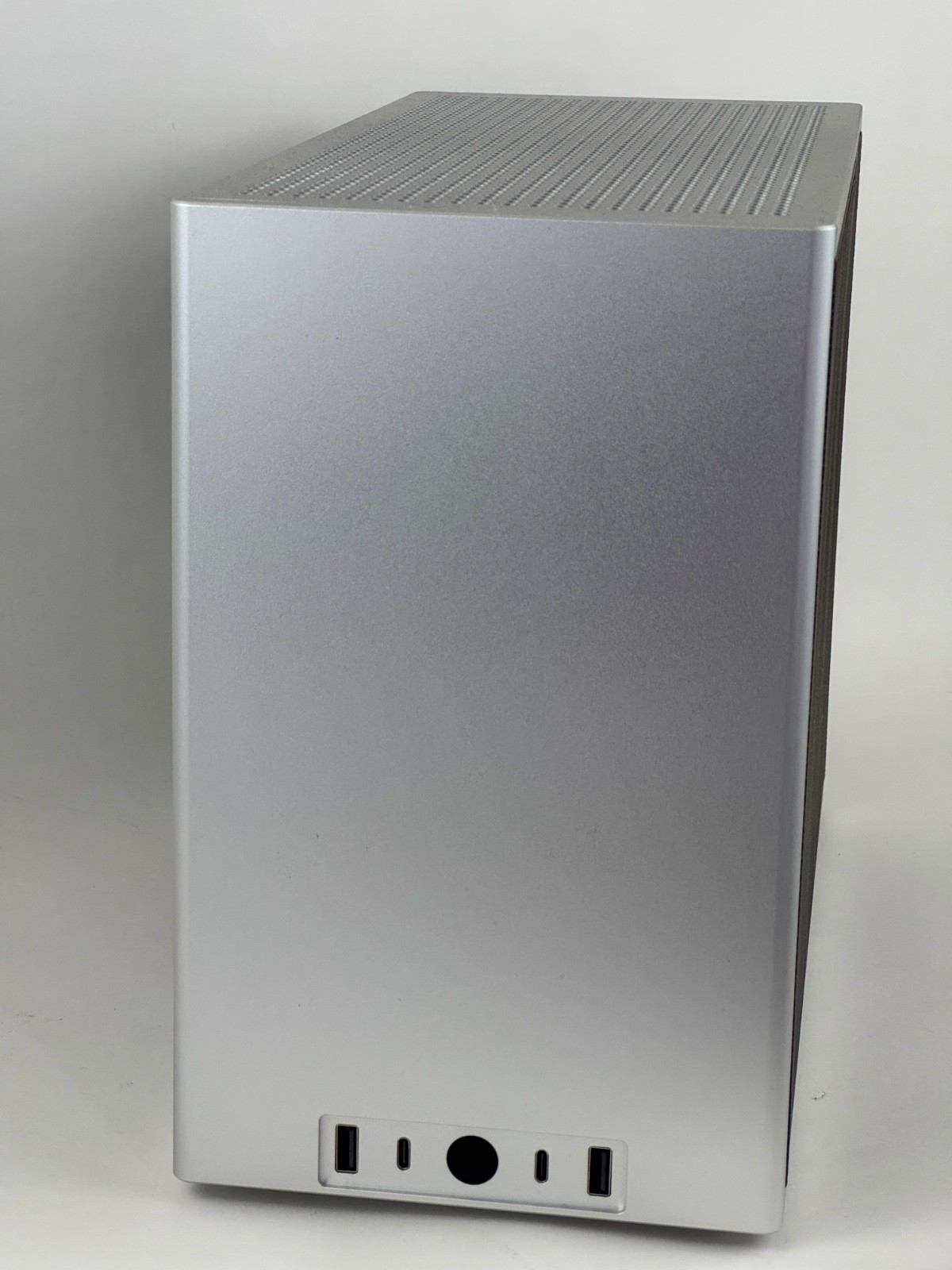

Included: NCASE M1EVO PC Case with All Screws and Accessories
Shipping: USPS Ground Advantage -Shipped Flatpack/Not Assembled
