NES-RGB Utlimate Modification (KIT) for Nintendo Front Loader
NES-RGB Ultimate is a hardware FPGA-based video solution designed for Nintendo Entertainment System consoles. The module replaces the original video generation path with a modern programmable logic implementation while preserving authentic hardware operation.
Unlike traditional RGB modifications that rely on stacking an additional board directly above the original PPU, NES-RGB Ultimate replaces the video generation stage with a modern FPGA-based solution, eliminating many of the analog limitations and artifacts inherent to the original hardware design.
WARNING
Installation requires soldering skills and basic electronic repair experience. Improper installation may result in damage to the console or the NES-RGB Ultimate module.
FEATURES
Clean RGB video output, no vertical jailbars, banding, or color interference commonly associated with the original PPU architecture.
True hardware implementation — not software emulation
The video subsystem is recreated in dedicated FPGA logic hardware, providing deterministic timing and authentic console behavior without emulation layers or software rendering.
FPGA video processing
Modern Lattice FPGA implementation recreates the video output path with exceptional signal integrity and stability.
Improved Audio Output
The sound is used from the console's main processor, with a filter applied to reduce noise from the digital logic.
Multiple selectable palettes
Instant palette switching support with carefully tuned color profiles inspired by classic CRT displays and studio monitors. One-button switching, default palette selection using jumpers. On screen OSD display.
Minimalist integrated design
No bulky daughterboards mounted above the PPU.
No fragile flying wires across the motherboard.
No case drilling, only original holes used.
Simple installation
The module installs directly in place of the original chip and requires only connection to a dedicated clean power source.
The original case is preserved, easy to return the original chip for authentic video.
Optimized power architecture
Custom filtered power section with low-noise regulation for improved image stability and reduced interference.
Can use any power supply with any polarity, voltage from 10 to 24 volts
Designed for modern displays
Built specifically for today’s RGB monitors, scalers, OSSC/RetroTINK setups, and professional video equipment where original composite artifacts become highly visible.
Go to retro-spektro site to download installation manual.

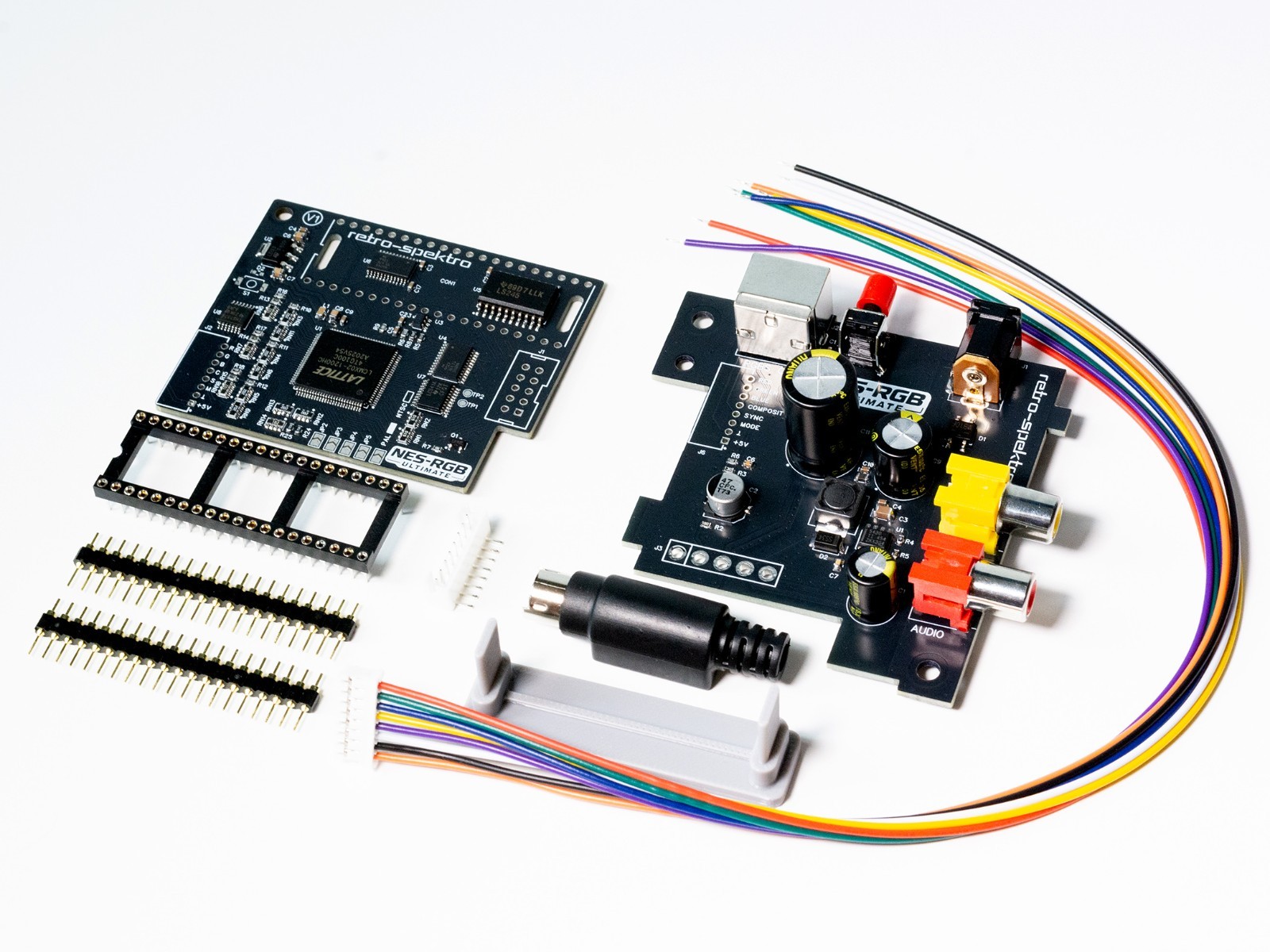

LOT: NES-RGB Ultimate module, NES-RGB Power Supply module, Wires Kit, 8 pin JST 2.0 connector, Pin Header 2x20 pin 2.54 mm, 8 pin miniDIN connector, DIP 40 collet socket, PCB Ectractor.ATTENTION - Nintendo Front Loader console,Nintendo Front Loader PCBnot uncluded !!!
