Neu CiscoCS-KITPRO-PTZ4K-K9
Room Kit Pro with PTZ 4K Camera

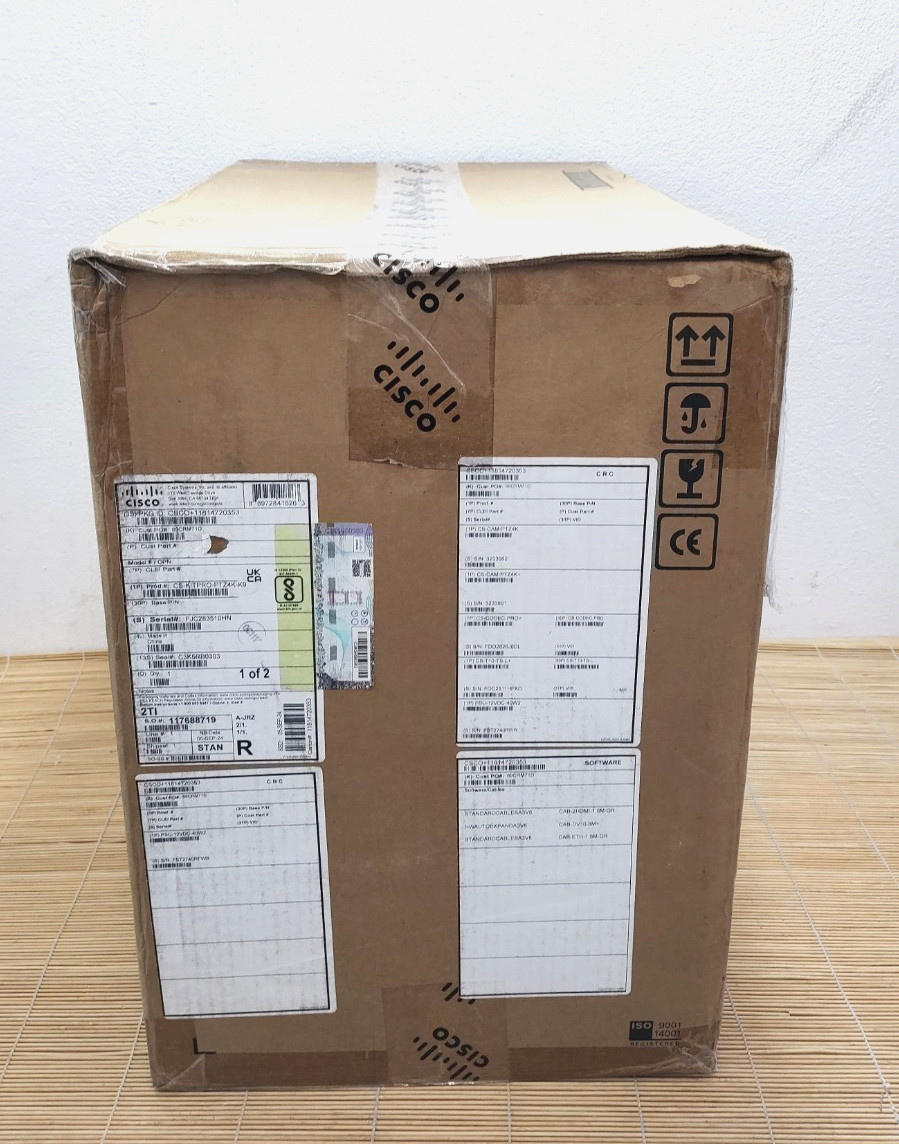

New Sealed Box
/DE/ Auf Anfrage ist die Gewährung eines 7-tägigen Zahlungszieles für gewerbliche EU-Käufer möglich (Kreditwürdigkeit vorausgesetzt).
/EN/ After a creditworthiness check EU-commercial purchaser can pay for this item within 7 days from date of invoice.
WIR GEBEN 2 JAHRE GARANTIE!
Dieses Angebot unterliegt der Differenzbesteuerung nach § 25a UStG., daher ist die Mehrwertsteuer im Preis inkludiert. Die Umsatzsteuer wird aber in der Rechnung nicht ausgewiesen und kann nicht in Abzug gebracht werden.
Wenn Sie auf einer Rechnung mit ausgewiesener Umsatzsteuer bestehen, informieren Sie uns bitte, damit wir ein entsprechendes -Angebot speziell für Sie erstellen können.
Das Angebot richtet sich ausschließlich an Personen außerhalb Österreichs und an gewerbliche Käufer in der EU, ist daher UmsatzsteuerFREI!
Privatpersonen, wenn die zufällig den Artikel ersteigert haben, erhalten eine Rechnung gemäß § 24 UStG 1994 (Differenzbesteuerung) - UmsatzsteuerFREI!
Bitte mailen Sie uns sofort nach Auktionsende/Kauf Ihre UID (Umsatzsteuer-Identifikationsnummer), damit wir für Sie eine
Netto-Rechnung erstellen können. Sollten Sie als Unternehmer noch keine UID haben, beantragen Sie diese bitte beim Finanzamt oder kontaktieren Sie uns.
Cisco Room Kit Pro PTZ 4K integrator package with Codec Pro, the Cisco PTZ 4K Camera and Cisco Room Navigator.
Cisco PTZ 4K Camera class="CellBullet2" style="margin: 1px 0px 0.5em 38px; padding: 0px 0px 0px 15px; border: 0px; font-style: inherit; font-variant: inherit; font-stretch: inherit; line-height: 1.7; vertical-align: baseline; text-indent: -21px; overflow: visible;">◦20xopticalzoom
◦HDMI2.0
●Power
◦12V/3A
◦PoE+(IEEE802.3at compatible)
Product specifications
Specification
Description
Software compatibility
●RoomOS 10.x or later for native Webex meetings and video Google Meet class="pChart_bodyCMT" style="margin: 3pt; padding: 0px; border: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: inherit; line-height: 1.7; vertical-align: baseline; text-indent: 0pt; overflow: visible;">
Default components in Room Kit Pro PTZ 4K integrator bundle
●Cisco CodecPro●CiscoPTZ 4K Camera●CiscoRoom Navigator
Optional hardware Pro, Cisco Ceiling Microphone, wall mount for Codec Pro, rack mount for Codec Pro, Cisco PTZ 4K Camera, Cisco Precision 60 Camera, Cisco SpeakerTrack 60 Camera, various cable and peripheral options (consult the Ordering information)
Bandwidth
●Upto20 MbpsWebexrate
Minimum bandwidth for resolution/frame rate
●720p30 from 768 kbps●720p60 from 1152 kbps●1080p30 from 1472 kbps●1080p60 from 2560 kbps
Firewall traversal
●Cisco Expressway™technology H.460.18, H.460.19 firewall traversal
Video standards
●H.264, H.265, H.263
Video inputs (6)
●2x HDMI inputs support formats up to maximum 1080p60●3x HDMI inputs support formats up to maximum UHD (3840 x 2160) @ 30 fps including HD1080p60●1x 3G-SDI/HD-SDI input supports formats up to maximum 1080p60●Extended Display Identification Data (EDID)●Consumer Electronics Control (CEC) 2.0
Video outputs (3)
●2x HDMI outputs support formats up to 3840 x 2160@60 fps (4Kp60)●1x HDMI output supports formats up to 3840 x 2160@30 fps (4Kp30)●CEC 2.0
Encode and decode
●Video stream: Full HD 1080p60●Content stream: 4K 2160p15
Audio standards
●G.711, G.722, G.722.1, G.729AB, AAC-LD mono and stereo, Opus Stereo
Audio features
●High quality 20 kHz audio●8x separate acoustic echo cancelers●8-port audio mixer●8 assignable equalizers●Acoustic Echo Cancellation (AEC)●Active Lip Synchronization●AI-Powered, Adaptive Noise Removal●Automatic Gain Control (AGC)●Full Duplex●Full-Band Audio●Self-Hear●Ultrasound Technology
Audio inputs
●8x microphones, 48V phantom powered, Euroblock connector, each with separate echo cancelers and noise reduction; all microphones can be set for balanced line level●3x HDMI, digital: stereo PC/DVD input●Up to 4x digital Cisco Table Microphone Pro units via PoE (Audio over IP) for directional voice pickup (may require an external PoE switch)●2x USB-A, digital: stereo input for USB microphone connectivity
Audio outputs
●6x balanced line level outputs, Euroblock connector●3x HDMI outputs●HDMI input #1 supports Audio Return Channel (ARC) audio output to Quad Camera●1x RCA output for subwoofer (Quad Camera)
Loudspeakers (Quad Camera)
●High-quality loudspeaker system with a single full-range driver and dual low-frequency drivers●Frequency response 100 Hz to 20 kHz●Max output level SPL 90 dB
Video stream layouts
●Supporting available Webex video stream layouts and meeting features, including focus, grid, prominent, stack, and overlay. For more information, please consult the.●People Focus helps create an optimized view of every participant in Webex meetings via smart cropping to remove excess real estate
PresenterTrack (PTZ 4K Camera, Precision 60 Camera)
●AI-powered face and upper body detection capability●Camera automatically follows the active presenter within a defined zone and helps ensure optimized view
Content stream
●H.239 (H.323) dual stream●BFCP Session Initiation Protocol (SIP) dual stream●Supports resolutions up to 3840 x 2160p15 fps and 1080p60
Wireless sharing
●Webex App (up to 3840 x 2160 at 7.5 fps)●Cisco Intelligent Proximity client (up to 1920 x 1080 at 3 fps)●Miracast (1920 x 1080 at 30 fps) – Not available on non-radio version.●Apple AirPlay wireless sharing:
◦Screen mirroring up to 1920 x 1080 at 60 fps
◦Extended desktop (Mac only) - up to 1920 x 1080 at 60 fps
◦Video streaming up to 3840 x 2160 at 30 fps
Multipoint support
●5-way embedded SIP/H.323**conferencing capability with MultiSite option
MultiSite features (embedded multipoint) (optional upgrade)
●Adaptive SIP/H.323**MultiSite:
◦3-way resolution up to 1080p30 plus content up to 4Kp15
◦4-way resolution up to 720p30 plus content up to 4Kp15
◦5-way resolution up to 720p30 plus content up to 4Kp15
●Full individual audio and video transcoding●H.323**, SIP, and VoIP in the same conference●Support for presentation (H.239, BFCP) from any participant at resolutions up to 3840 x 2160p15●Best impression (automatic continuous presence layouts)●Encryption and dual stream from any site
Embedded encryption
●H.323**and SIP point-to-point●Standards-based: H.235 v3 and Advanced Encryption Standard (AES)●Automatic key generation and exchange
IP network features
●DNS lookup for service configuration●Differentiated Services (DiffServ) (Quality of Service [QoS])●IP-adaptive bandwidth management (including flow control)●Automatic gatekeeper discovery●Dynamic playout and lip-sync buffering●H.245 Dual-Tone Multifrequency (DTMF) tones in H.323●DTMF tones in SIP, RFC 4733●Date and time support using Network Time Protocol (NTP)●Packet loss-based down speeding●Uniform Resource Identifier (URI) dialing●TCP/IP●Dynamic Host Configuration Protocol (DHCP)●802.1X network authentication●802.1Q Virtual LAN●802.1p QoS and class of service●Cisco Media Assure and ClearPath, including packet loss-based downspeeding
Call control
●Cisco Collaboration Cloud/Webex●Native registration with Cisco Unified Communications Manager (CUCM) - requires CUCM Version 10.5.2 or later with device pack for Room Kit Pro●Native registration with Cisco Expressway●Third-party H.323 gatekeepers and standards-based SIP proxies
IPv6 network support
●Single call stack support for both H323 and SIP●Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ●Support for static IP address assignment, stateless auto-configuration, and DHCP v6
Security features
●Secure management using HTTPS and SSH protocols●End-to-end encryption for calls and meetings on Webex●Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)●WPA3TM and WPA3-Enterprise with CCMP128 Wi-Fi®security●Password protection to access administration (Room Navigator)●Network settings protection
Certificate management
●Certificate Authority Proxy Function (CAPF) support for additional security●Manufacturer-Installed Certificates (MIC)●Locally Significant Certificates (LSC)●X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported
Network interfaces Codec Pro
●1x Ethernet (RJ-45) 10/100/1000 for LAN●2x Ethernet (RJ-45) 10/100/1000 for direct pairing with camera (camera control)●2x Ethernet (RJ-45) 10/100/1000 with PoE, 1 dedicated for device controls via Room Navigator and connectivity with room peripherals, including the multi-directional Cisco Table Microphone Pro.●Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz for LAN - not available in non-radio versions●2x2 Multiple Input and Multiple Output (MIMO)
Note:Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz – 5875 MHz.
Using a Wifi connection is a flexible option, however an Ethernet connection is always preferred for high performance.
Other interfaces
●2x USB A port, USB-B, micro USB port, factory reset pinhole●Bluetooth®and Bluetooth®Low Energy*
Operating temperature and humidity
●0° to 35°C (32° to 95°F) ambient temperature●10% to 90% Relative Humidity (RH)
Storage and transport temperature
●-20° to 60°C (-4° to 140°F) at RH 10% to 90% (noncondensing)
Language support
●Arabic, Czech, Danish, German, US English, UK English, Catalonian, Spanish, Latin-American Spanish, Finnish, French, Canadian French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Brazilian Portuguese, Portuguese, Russian, Swedish, Turkish, Chinese (Simplified), Traditional Chinese, Ukrainian
