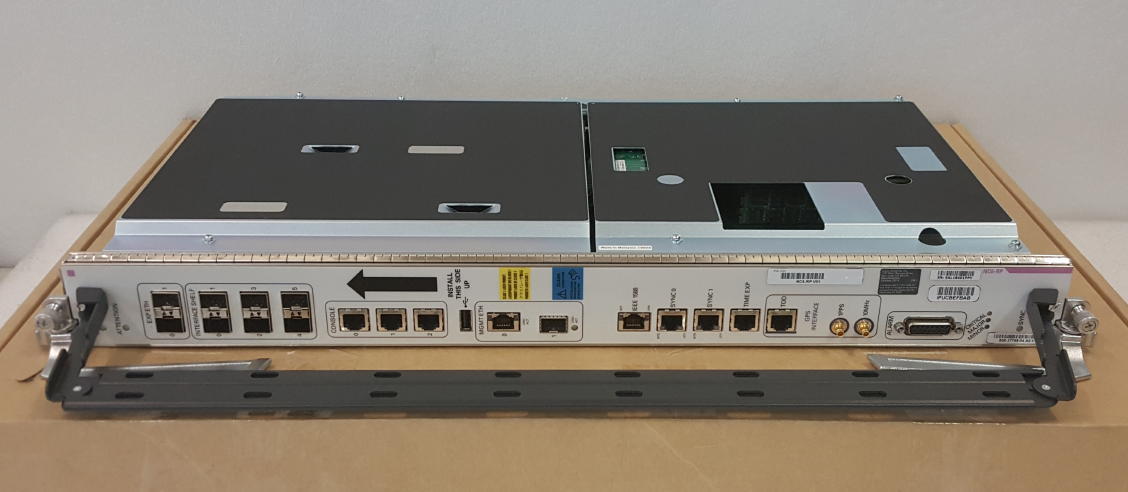

Cisco NCS-6000 Route Processor (48 GB) NC6-RP
48GB of ECC protected DDR3 route memory (not upgradable)• 32GB SSD (internal)• 200GB SSD (internal)Connectivity
• Console Ports (EIA232 serial)• Management Ethernet ports (10/100/1000/1000M and 1/10GE)• Interface Shelf Ethernet ports (10GE SFP+)• Control Ethernet Expansion ports (10GE SFP+)• BITs frequency reference port (input and output)• J.211(DTI) time reference input or output• GPS time reference port• Cisco Time-Reference Input/Output• Dedicated 10/100M copper Ethernet for IEEE1588 time/clock synchronization• USB 2.0 port for external storage of a boot image• Alarm port for relay contacts
Features and Benefits
The Cisco Network Convergence System Route Processor is the most advanced route processor in the industry and was specially developed for the Cisco NCS-6000 system platform scale and performance. The NCS-6000 Route Processor features high-end performance of the Intel Sandy Bridge 8-Core processor. With 48 GB of fast double data rate 3 (DDR3) error correcting code (ECC) memory, the NCS-6000 Route Processor provides extremely fast routing performance at exceptional scale for the largest core, peering and other applications. TheRoute Processor includes a pair of Solid State Drives (SSDs) for fast software installation and bootup.
The NCS-6000 Route Processor runs the award-winning Virtualized Cisco IOS® XR. IOS-XR is a mature, fully modular, fully distributed internetwork operating system that includes a highly-scalable IP and MPLS control-plane implementations. The multicore design and speed allows achieving high levels scale for Virtualized IOS-XR applications such as Border Gateway Protocol (BGP) and Interior Gateway Protocols (IGP), Multiprotocol Label Switch Traffic Engineering (MPLS-TE), NetFlow, Lawful Intercept, SNMP or XML monitoring and others without adversely affecting routing performance.
For more information about the Cisco NCS Family visit: [link removed by ].
Features and Benefits
This NCS-6000 Route Processor offers many advantages:
● Powered by Cisco Virtualized IOS-XR Software, the Route Processor is designed for always-on operation while growing the system capacity from single chassis to multi chassis scale
● High-performance 8-Core Intel Sandy Bridge CPU for fast multithreaded software processing allows for high-speed convergence and processing
● Fast SSD storage system are used for the high-speed logging and operating system storage capabilities
● High scale control-plane technology including IP/Multiprotocol Label Switching (IP/MPLS) routing, IP over Dense Wavelength-Division Multiplexing (IPoDWDM), network virtualization with Secure Domain Routers (SDRs), NetFlow accounting to provide outstanding quality of experience (QoE) at the lowest possible total cost of ownership (TCO)
● Wide range of synchronization services for supporting Synchronous Ethernet and accurate hardware-assisted time stamping support for OAM & SLA protocols such as IEEE 1588v2
● As for all other NCS-6000 subsystems, the Route Processors achieve industry-leading performance in terms of efficiency at lower power and weight profile
2 Year Warranty for End User's, 90 Days for Reseller's
