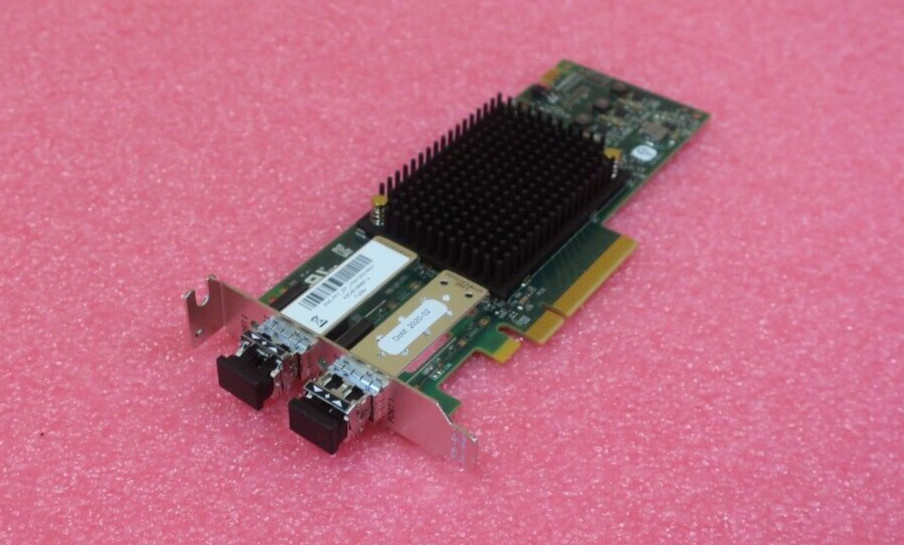

NEW Fujitsu LPe31002 Dual Port 16Gb FC Host Bus Adapter HBA
Model: LPe31002Fujitsu P/N:S26461-F5596-L202Material No:38063068New Pull From New Server3 Year WarrantyLow Profile Card With Half Height Bracket
Includes:

• 1 xNEW Fujitsu LPe31002 Dual Port 16Gb FC Host Bus Adapter HBA S26461-F5596-L202
• 2 x 16Gb/s FC SFP+ Transceiver Silicon: Emulex XE501
• Controller type: Fibre Channel Host Bus Adapter
• Connector type: LC-style
• Number of ports: 2
• Auto Negotiation support: Yes
• Bus interface: PCIe 3.0 x8
• Bus transfer rate: 8GT/s
• LEDs: 2 LEDs per port (yellow and ANSI/IETF Standards: FC-PI-4; FC-PI-5; FC-PI-6; FC-FS-3; FC-LS-2; FC-GS-6; FC-DA; FC-DA2: FCP-4; SPC-4; SBC-3; SSC-3; SSC-4
• Legacy ANSI/IETF standards: FC-PH; FC-PH-2; FC-PH-3; FC-PI; FC-PI-2; FC-FS; FC-GS-2/3/4/5; FCP-2/3; FC-HBA; FC-TAPE; FC-MI; SPC-3; SBC-2; SSC-2; SSC-3
• PCIe base spec 3.0
• PCIe card electromechanical spec 3.0
• Fibre Channel Class 3
• PHP hot plug-hot swap

Technology Optics: 16 Gb/s short wave lasers with LC type connectors. Data rates: 14.025 Gb/s (16GFC); 8.5 Gb/s (8GFC); 4.25 Gb/s (4GFC) automatically negotiated

Supported cable length:

• Operating at 16Gb
• OM4 (Multi-Mode 50/125μm, 4700 MHz*km) 125m
• OM3 (Multi-Mode 50/125μm, 2000 MHz*km) 100m
• OM2 (Multi-Mode 50/125μm, 500 MHz*km) 35m
• Operating at 8Gb
• OM4 (Multi-Mode 50/125μm, 4700 MHz*km) 190m
• OM3 (Multi-Mode 50/125μm, 2000 MHz*km) 150m
• OM2 (Multi-Mode 50/125μm, 500 MHz*km) 50m

FC Controller notes: the controller is equivalent to the original Emulex HBA LPe31000-Series

Fibre Channel interface: MMF
