Intel PRO/1000 PT Single Port PCIe x1 Server Network Adapter — EXPI9400PT FH HH
The Intel PRO/1000 PT Single Port Server Adapter (EXPI9400PT) delivers reliable Gigabit Ethernet connectivity via a PCIe x1 slot, compatible with x1, x4, x8, and x16 full-height and low-profile PCIe slots. Powered by the Intel 82572GI Gigabit Controller — Intel's fifth-generation Gigabit adapter — it provides 10/100/1000 Mbps auto-sensing connectivity over Category-5 UTP cabling. Designed for server and workstation environments, it supports advanced features including TCP/UDP/IP checksum offload, large send offload, Receive-Side Scaling (RSS), Wake on LAN, PXE 2.0 boot, and IEEE 802.3ad link aggregation. Managed via the Intel PROSet Utility for Microsoft Device Manager, this card is well-suited for legacy server deployments requiring a single dedicated Gigabit uplink.
Key Specifications
Part NumberEXPI9400PTProduct LineIntel PRO/1000 PT Server Adapter SeriesControllerIntel 82572GI Gigabit ControllerPort Count1 × RJ-45 (Copper)Interface / BusPCIe 1.0a, x1 lane (operable in x1, x4, x8, x16 slots)Bus Speed2.5 Gbps uni-directional / 5 Gbps bi-directionalData Rates10 / 100 / 1000 Mbps (auto-negotiation, full-duplex)IEEE Standards10BASE-T, 100BASE-TX, 1000BASE-T (IEEE 802.3ab)CablingCategory-5 UTP, 4-pair; max 100 m (100/1000 Mbps), Cat-3 for 10 MbpsConnector1 × RJ-45BracketFull-height, Low-profile, or pc bracket (configuration dependent)Card Length12.9 cm (5.1 in)Full-Height Bracket Height12.0 cm (4.725 in)Low-Profile Bracket Height7.9 cm (3.1 in)Typical Power Consumption3.3 W (3.3 V @ 1 A)Operating Temperature0–55 °CLEDs2 × (Link / Speed — solid and blinking)CertificationsFCC B, UL, CE, VCCI, BSMI, CTICK, MIC; RoHS compliant, lead-freeBrandIntelProduct StatusDiscontinued / Legacy (EOL)
Features & Protocols
- ✓ 10/100/1000 Mbps auto-sensing — compatible with mixed-speed network devices
- ✓ Intel 82572GI Gigabit Controller — 5th-generation Intel Gigabit architecture
- ✓ PCIe x1 physical slot (operable in x1, x4, x8, x16 PCIe slots)
- ✓ TCP / UDP / IP checksum offload
- ✓ Large send offload (LSO)
- ✓ Interrupt moderation — reduces CPU utilization at high throughput
- ✓ Receive-Side Scaling (RSS) — load balancing across multiple CPU cores
- ✓ IEEE 802.3ad LACP (link aggregation) — requires capable switch
- ✓ IEEE 802.1Q VLANs
- ✓ IEEE 802.1p QoS
- ✓ IEEE 802.3 (z, ab, u, x) flow control
- ✓ Adapter fault tolerance (AFT) & Switch fault tolerance (SFT)
- ✓ Adaptive load balancing (ALB)
- ✓ Fast EtherChannel (FEC) & Gigabit EtherChannel (GEC) — requires capable switch
- ✓ Teaming: up to 4 connections, 2 separate teams
- ✓ PCIe Hot Plug / Active PCI support
- ✓ Wake on LAN (WoL) over PCIe
- ✓ PXE 2.0 boot ROM support
- ✓ Advanced cable diagnostics (error rate, cable length, auto-compensation)
- ✓ ACPI 1.0 power management
- ✓ DMI 2.0, WMI, SNMP management
- ✓ Remote Installation Services (RIS) support
- ✓ Intel PROSet Utility for Microsoft Device Manager
- ✓ Wired for Management (WfM) 2.0 enabled
OS & Platform Compatibility
- ✓ Microsoft Windows Server 2003 Enterprise / Datacenter (32-bit & 64-bit)
- ✓ Microsoft Windows 2000
- ✓ Red Hat Linux 2.4x or later (32-bit & 64-bit)
- ✓ FreeBSD 4.x or later
- ✓ Novell NetWare 5.x, 6.x
- ✓ Sun Solaris x86 (OS 8 and later)
- ✓ SCO Open Server 5, OpenUNIX 8
- ✓ Compatible with PCIe-equipped servers and workstations (x1 / x4 / x8 / x16 slots)
What's Included

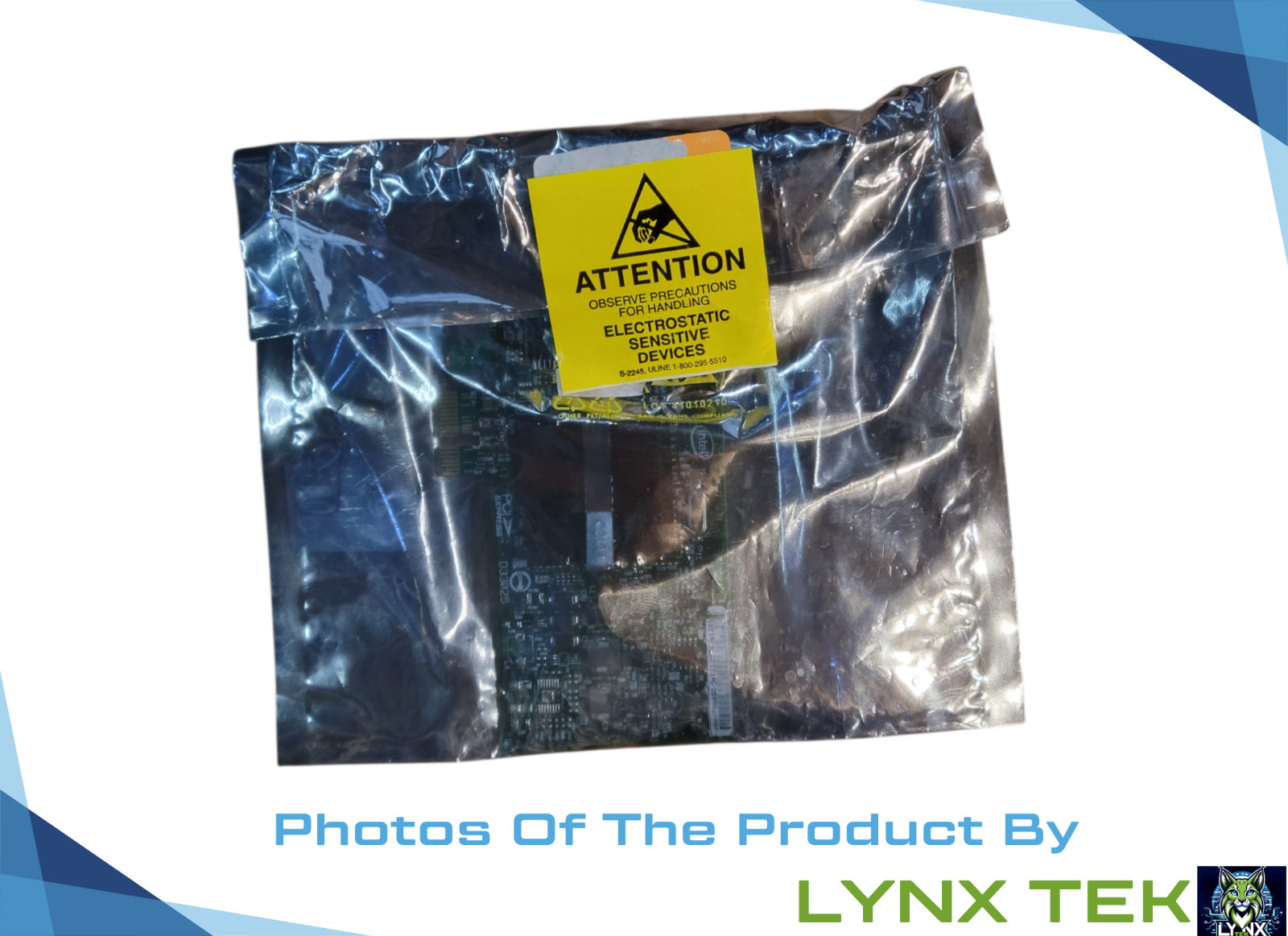

- ✓ 1 × Intel PRO/1000 PT Single Port PCIe Server Adapter (EXPI9400PT) in antistatic packaging
- ✓ Bracket — full-height, low-profile, or pc (configuration dependent; confirm before purchasing)
No cables, driver media, or manuals are included
