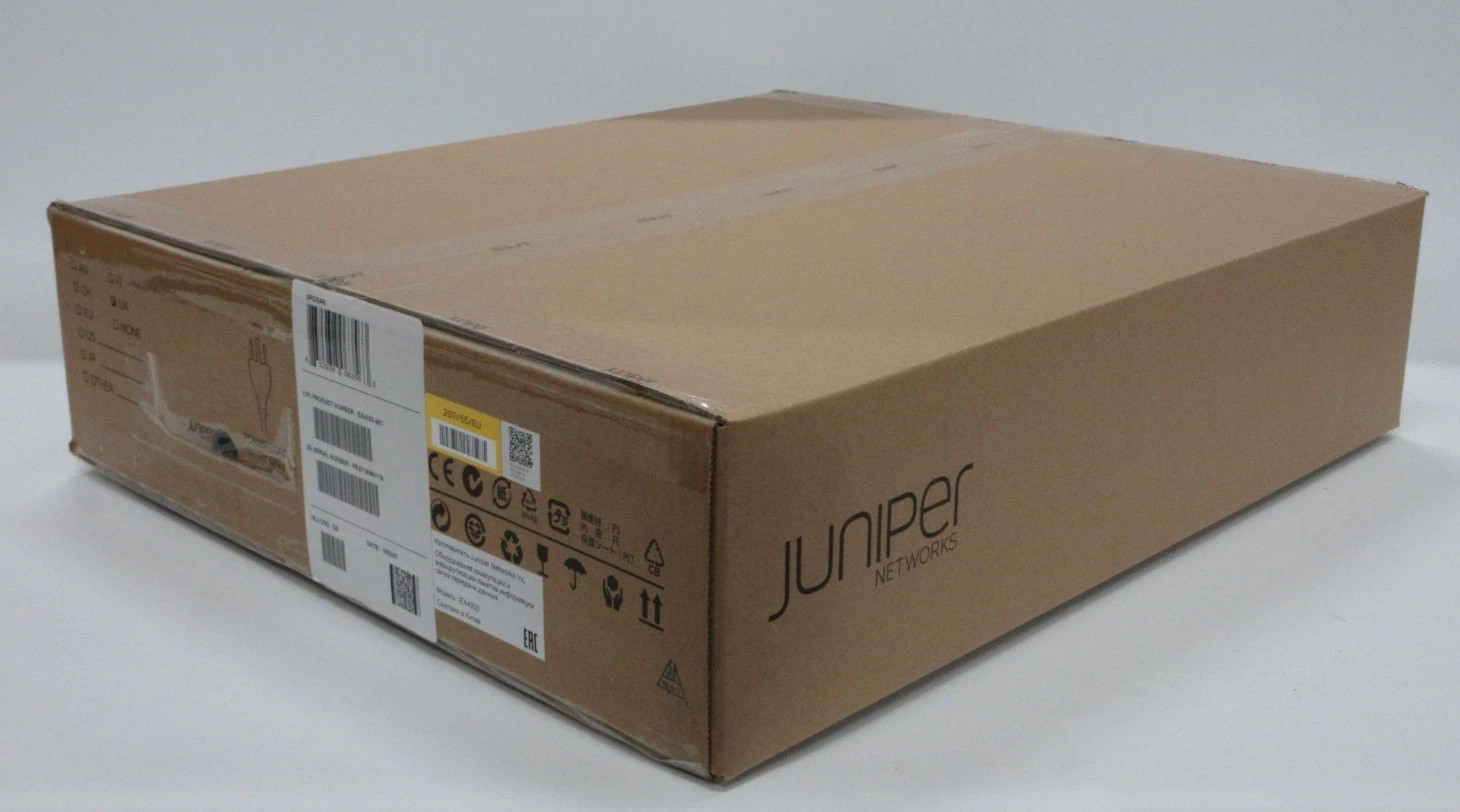

NEW Juniper Networks EX4300-48T 48x 1GbE RJ45 4x 40Gb QSFP+ Rack Mount 1U SwitchModel x NEWJuniper Networks EX4300-48T 48x 1GbE RJ45 4x 40Gb QSFP+ Rack Mount 1U Switch

• 1 xJuniper 350W AC Power Supply PSU

Overview:The EX4300 line of Ethernet switches delivers the performance, flexibility, and scale required for both campus and data center Gigabit Ethernet (GbE) access switch environments. When deployed in a Virtual Chassis configuration, the EX4300 delivers the operational simplicity and higher logical scale that businesses demand. Combining compact, pay-as-you-grow economics and low power and cooling with the performance, availability, and port densities of chassis-based platforms, the EX4300 enables businesses to deploy with speed and agility to increase revenue and improve productivity.
The EX4300 is onboarded, provisioned, and managed in the Juniper Mist Cloud Architecture. Mist Wired Assurance delivers better experiences for connected devices through AI-powered automation and service levels.
Description:EX4300-48T is a Juniper EX4300 switch with 48-port 10/100/1000BASE-T + 350 W AC PS (QSFP+ DAC for Virtual Chassis ordered separately). EX4300 1 Gigabit Ethernet (1GbE) switches are compact, fixed-configuration platforms that can be deployed as standalone systems or as part of a Virtual Chassis, Virtual Chassis Fabric, or Junos Fusion switching architecture, satisfying a variety of high-performance campus and data center access Juniper EX4300 switch with 48-port 10/100/1000BASE-T + 350 W AC PS

Form factor: Fixed platform, Virtual Chassis configuration consisting of 10 switches

Dimensions (W x H x D): 17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm),1 rack unit

Backplane speed 320 Gbps (Virtual Chassis)

Data rate 496 Gbps

Throughput 369 Mpps (wire speed)

40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities: 4 per switch Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis)

100GBASE C form-factor pluggable transceiver (CFP) port densities N/A

Resiliency: Internal, hot-swappable redundant power supply; field-replaceable fans; graceful Routing Engine switchover (GRES) in Virtual Chassis configuration

Operating system: Junos OS

Traffic monitoring: sFlow

Quality-of-service (QoS) queues/port: 12

MAC addresses: 64,000

Jumbo frames: 9216 bytes

IPv4 unicast/multicast routes: 32,000/8000

IPv6 unicast/multicast routes: 18,000/4000

Number of VLANs: 4093

ARP entries: 64,000
