NEW Lenovo ThinkSystem 9350-8i 2GB PCIe 12G SAS RAID Controller +Battery 03GX083
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
NEW Lenovo ThinkSystem 9350-8i 2GB PCIe 12G SAS RAID Controller +Battery 03GX083
Price: GB $520.00
NEW Lenovo ThinkSystem 9350-8i 2GB PCIe 12G SAS RAID Controller + Battery 03GX083Model:ThinkSystem 9350-8iP/N:03GX083 /4Y37A72483
New Pull From New ServersTested2 Year Warranty
Included:

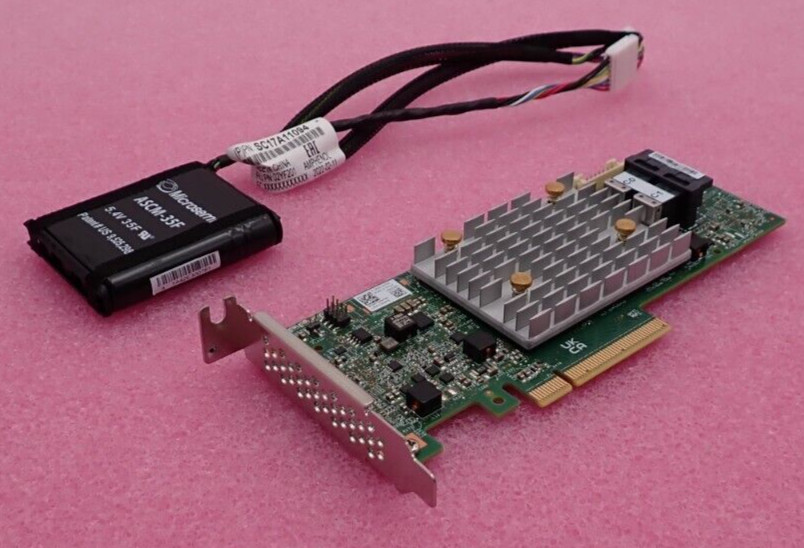

  • 1 xNew Lenovo ThinkSystem 9350-8i 2GB PCIe 12G SAS RAID Controller 03GX083
  • 1 x New Battery - 03GX255
  • 1 x New Cable - 3.0 x8 host interface
  • Two connectors to the drive backplanes
  • Low-profile PCIe adapter with broad server compatibility
  • 12 Gbps SAS/SATA RAID controllers, based on the Adaptec SmartRAID 3152-8i
  • 2GB of integrated flash-backed cache
  • Connectivity for up to 8 internal SAS or SATA drives
  • Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported.
  • Support for intermixing of 24 Gb/s, 12 Gb/s, and 6 Gb/s drives; 24 Gb/s drives operate at 12 Gb/s
  • Standard support for RAID 0, 1, 10, 5, 50, 6, 60, RAID 1 Triple, and RAID 10 Triple
  • Support for JBOD (non-RAID, called “raw” or “HBA mode” in Adaptec parlance) drive state
  • Support for up to 64 arrays and 64 logical drives (virtual drives)
  • Support for logical drive sizes greater than 2 TB.
  • Configurable stripe size from 16 KB up to 1 MB
  • Supports 512e, 512n and 4K sector formatted drives
  • RAID ADM through triple mirroring, move array, and split mirroring
  • Quick initialization
  • Online capacity expansion
  • Copyback hot spare
  • Dynamic caching algorithm
  • Native command queuing (NCQ)
  • Background initialization
  • Hot-plug drive support
  • RAID level migration
  • Hot spares—global, dedicated, and pooled
  • Automatic/manual rebuild of hot spares
  • S.M.A.R.T. support
  • Dynamic sector repair
  • Staggered drive spin-up
  • Bootable array support
  • Smart PQI driver with multiple queue and MSI-X support for all device drivers for all supported operating systems
  • Secure boot RAID 9350-8i Internal
  • Form factor: Low profile
  • Controller: Microchip Luxor ROC PM8204
  • Adaptec equivalent: Adaptec SmartRAID 3152-8i
  • Host interface: PCIe 3.0 x8
  • Port interface: 12 Gb SAS
  • Number of ports: 8
  • Port connectors: 2x Mini-SAS HD x4 (SFF-8643)
  • Drive interface: SAS, SATA
  • Drive type: HDD, SSD
  • Hot-swap drives: Yes
  • Max devices: 8
  • RAID levels: 0, 1, 10, 5, 50, 6, 60, 1 Triple, 10 Triple
  • JBOD drive state (HBA mode / Raw): Yes
  • Cache: 2GB (Standard)
  • Supercap cache protection with flash: Yes
  • SED support: Yes
Compatible With:
AMD V3SR635 V3 (7D9H / 7D9G)SR655 V3 (7D9F / 7D9E)SR645 V3 (7D9D / 7D9C)SR665 V3 (7D9B / 7D9A)
2S Intel V3/V4ST650 V3 (7D7B / 7D7A)SR630 V3 (7D72 / 7D73)SR650 V3 (7D75 / 7D76)
4S 8S Intel V3SR850 V3 (7D97 / 7D96)SR860 V3 (7D94 / 7D93)
1S V3ST250 V3 (7DCF / 7DCE)SR250 V3 (7DCM / 7DCL)
GPU RichSR670 V2 (7Z22 / 7Z23)SR675 V3 (7D9Q / 7D9R)
1S Intel V2ST250 V2 (7D8G / 7D8F)SR250 V2 (7D7R / 7D7Q)
2S Intel V2ST650 V2 (7Z75 / 7Z74)SR630 V2 (7Z70 / 7Z71)SR650 V2 (7Z72 / 7Z73)
AMD V1 -Only with an EPYC 7003 "Milan" processor. Not supported with an EPYC 7002 "Rome" processor.SR645 (7D2Y / 7D2X)SR665 (7D2W / 7D2V
4S V2SR850 V2 (7D31 / 7D32)SR860 V2 (7Z59 / 7Z60)
2S Intel V1ST550 (7X09 / 7X10)SR530 (7X07 / 7X08)SR550 (7X03 / 7X04)SR570 (7Y02 / 7Y03)SR590 (7X98 / 7X99)SR630 (7X01 / 7X02)SR650 (7X05 / 7X06)CS315949 315950 315951 315952 315953 315954 315955 315956 315957 315958 315959 315944 315945 315946 315947 315948 315960 315961 315962 315963 315964 315965 315966 315967 315968 315969 315970 315971 315972 315973 315974 315975dup dup .co.uk
