Mellanox Model:SX6710
P/N:MSX6710-FS2F2

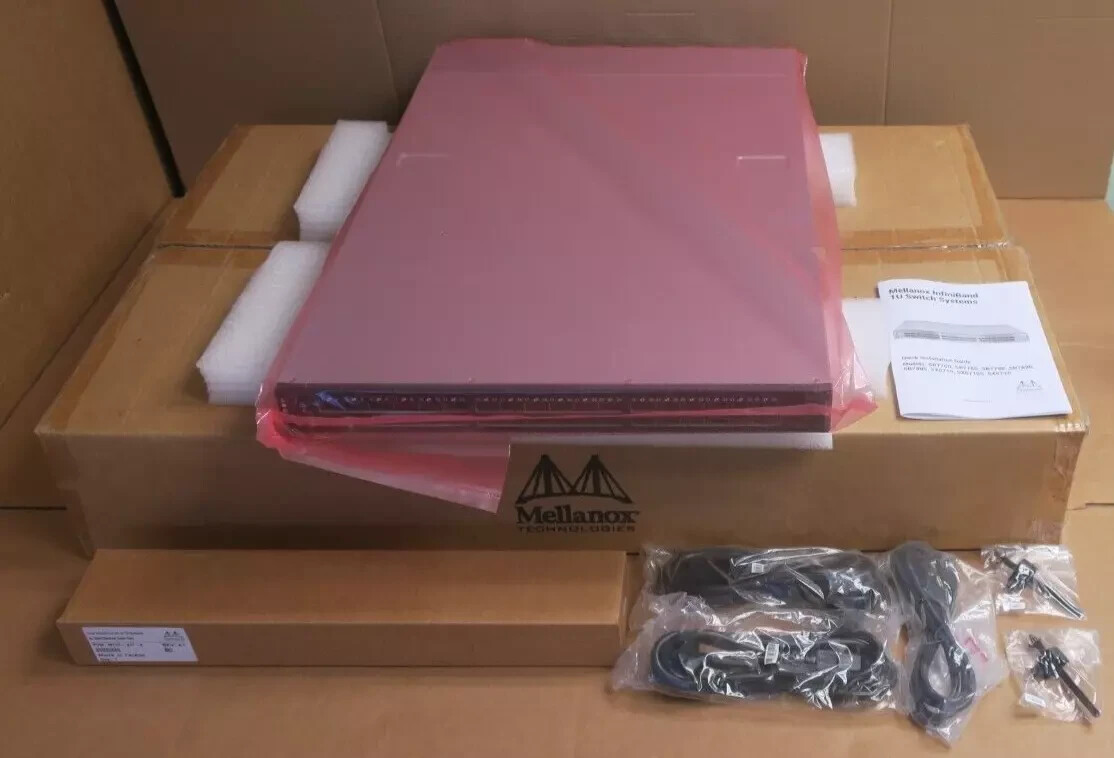

ONE OPENED FOR PHOTO - THE ONE YOU WILL RECEIVE WILL BE NEW FACTORY SEALED
Rear to Front Airflow

Included:

• 1 xNEW Mellanox SwitchX-2 SX6710 36x QSFP+ Port FDR Infiniband Switch MSX6710-FS2F2
• 4 x Fan Module MTEF-FANF-A
• 2 x 460W Power Supplies MTEF-PSF-AC-A
• 1 x Rail Kit MTEF-KIT-A
• 1 x Mellanox Serial Cable DB9-RJ45HAR000631
• 2 xPower Cord Type C13-C14ACC000501
• 2 x Power Cord Clips SX67X0 systems provide the highest performing fabric solution in a 1U form factor bydelivering up to 4Tb/s of non-blocking bandwidth with 200ns port-to-port latency.
  These systems are the industry's most cost-effective building blocks for embedded systems andstorage with a need for low port density systems. Whether looking at price-to-performance orenergy-to-performance, these systems offer superior performance, power and space, reducingcapital and operating expenses and providing the best return-on-investment. The systems are anideal choice for smaller departmental or back-end clustering uses with high-performance needs,such as storage, data base and GPGPU clusters.
  Powerful servers combined with high-performance storage and applications that use increasinglycomplex computations are causing data bandwidth requirements to spiral upward. As servers aredeployed with next generation processors, High-Performance Computing (HPC) environmentsand Enterprise Data Centers (EDC) need every last bit of bandwidth delivered with Mellanox’sFDR InfiniBand systems.
  Built with Mellanox’s sixth generation SwitchX-2 InfiniBand FDR 56Gb/s system device,these standalone systems are an ideal choice for top-of-rack leaf connectivity or for buildingsmall to extremely large sized clusters.
  These systems enable efficient computing with features such as static routing, adaptive routing,and advanced congestion management. These features ensure the maximum effective fabricbandwidth by eliminating congestion.
  The managed systems comes with an onboard subnet manager, enabling simple, out-of-the-boxfabric bring-up for up to 648 nodes. MLNX-OS software delivers complete chassis management of firmware, power supplies, fans, ports and other interfaces.
  Mellanox’s edge systems can also be coupled with Mellanox’s Unified Fabric Manager (UFM)software for managing scale-out InfiniBand computing environments. UFM enables data centeroperators to efficiently provision, monitor and operate the modern data center fabric. UFMboosts application performance and ensures that the fabric is up and running at all times.
  InfiniBand systems come as internally or externally managed. Internally managed systems comewith a CPU that runs the management software (MLNX-OS) and management ports which areused to transfer management traffic into the system. Externally managed systems come withoutthe CPU and management ports and are managed using firmware tools.
  Mellanox's InfiniBand to Ethernet gateway, built with Mellanox's SwitchX-2 based systems,provides the most cost-effective, high-performance solution for data center unified connectivitysolutions. Mellanox's gateways enable data centers to operate at up to 56Gb/s network speedswhile seamlessly connecting to 1, 10 and 40GbE networks with low latency (400ns). ExistingLAN infrastructures and management practices can be preserved, easing deployment and providing significant return based FDR InfiniBand 1U Switch, 36 QSFP+ ports, 2
  Power Supplies (AC), x86 dual core, standard depth, rear to front airflow, Rail Kit, RoHS6
