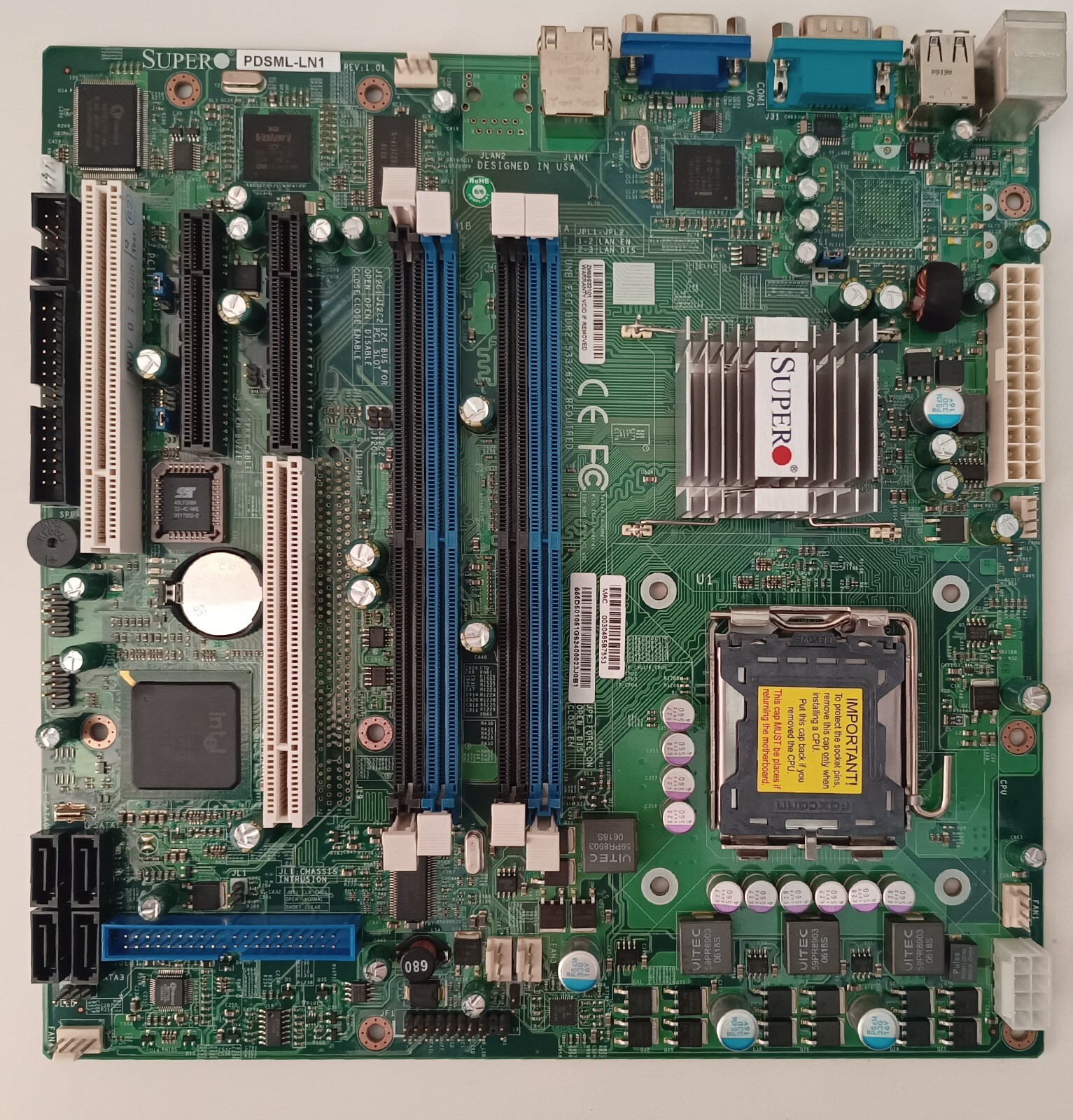

This is a brand newSuper PDSML-LN1 Supermicro Motherboard with Intel E7525 (Tumwater) Chipset. This offer is for a singlePDSML-LN1 motherboard only.
Key Features
1. Intel® Pentium® D, Pentium® 4
Extreme Edition, Pentium 4, Pentium
Extreme Edition & Celeron D
in LGA775 Package(FSB 1066/800/533)2. Intel® E7230 (Mukilteo) Chipset3. Up to 8GB unbuffered ECC / non-ECC
DDR2 667/533 SDRAM4. Single Intel® 82573L PCI-e Gigabit
LAN Port5. Built-in SATA ICH7R Controller
4x SATA (3 Gbps) Drive with
RAID 0, 1, 5, 10 Support6. 1 (x4) PCI-Express,
1 Universal [1 (x8) PCI-Express, or
1x 32-bit 33MHz PCI] slot,
1x 32-bit 33MHz PCI7. On board XGI XG20 Graphics with
DDR 16MB video memory
MBD-PDSML-LN1-B

• PDSML-LN1 (Bulk Pack)

Physical StatsForm Factor

• MicroATX (uATX)

Dimensions

• 9.6" width x 9.6 " length , (24.4cm x 24.4cm), 6 layers

Processor/CacheCPU

• Single LGA775 ZIF Socket
• Supports anIntel® Pentium® D (Smithfield Dual Core)processor
• Supports anIntel® Pentium® Extreme Editionprocessor
• Supports anIntel® Pentium® 4processor up to 3.8GHz
• Supports anIntel® Pentium® 4 Extreme Editionprocessor up to 3.73GHz
• Supports anIntel® Celeron® Dprocessor with 256KB L2 Cache up to 3.06GHz
• Hyper-Threading (HT) capable
• 2MB / 1MB L2 Cache
• Will not support E2000 processors

System Bus

• 1066 / 800 / 533 MHz system bus

System MemoryMemory Capacity

• Four 240-pin DIMM sockets
• Supports up to 8 GB of unbuffered ECC / non-ECC 533/667MHz memory

Memory Type

• DDR2 667/533MHz unbuffered ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1 GB, 2GB

Memory Voltage

• 1.8V only

On-Board DevicesChipset

• Intel E7230 (Mukilteo) Smithfield chipset
• ICH7R + Intel® 82573L

Serial ATA

• Intel® ICH7R SATA2 (3 Gbps) controller built-in
• Intel:
  RAID 0, 1, 5, 10 support (Windows Only)
• Adaptec:
  RAID 0 (Two, three, four drives only)
  RAID 1 (Two hard drives only)

Network Controllers

• Single-port Intel® 82573V Gigabit PCI-Express Ethernet (Vidalia)
• Supports 10Base-T, 100Base-TX, 1000BASE-TX, RJ45 output

VGA

• On-board XGI XG20 graphics, 16MB DDR video memory

Super I/O

• Winbond 83627HG chip

Clock Generator

• CK410

Input / OutputSerial ATA

• Four Serial ATA ports (3 Gbps performance)
• Four SATA hard drives supported

IDE

• One EIDE channel supports up to two UDMA IDE devices

Floppy

• 1 Floppy controller; 1.44 MB

LAN

• 1x RJ45 LAN port

USB

• 6x USB 2.0 compliant / 1.1 compatible
• 4x internal USB headers
• 2x rear ports

VGA

• 1x VGA Port

Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Ports

• 1x Fast UART 16550 serial port
• 1x Header
