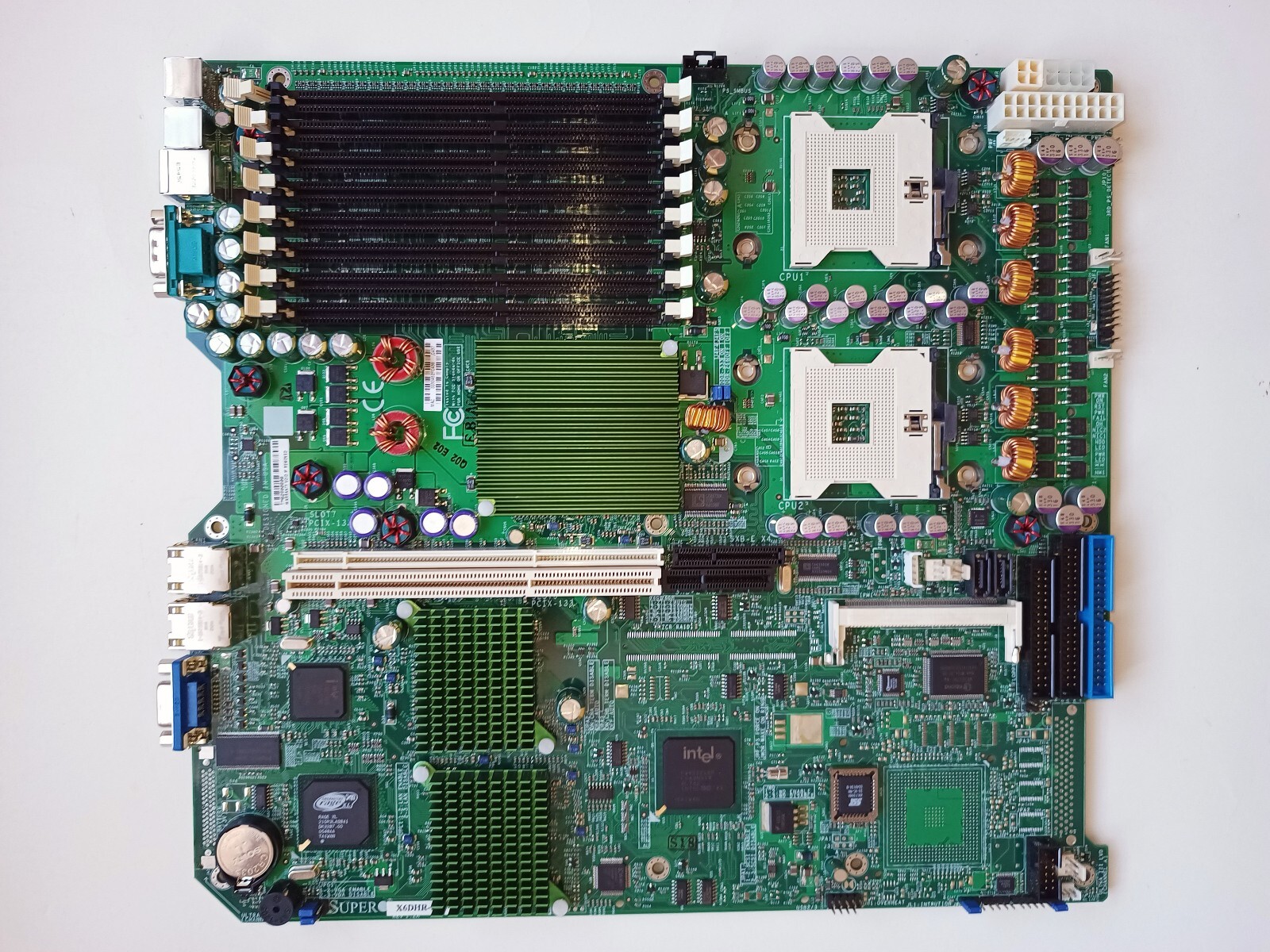

NEW Super X6DHR-IG Supermicro 64-bit Xeon Motherboard only Intel E7520 Chipset This is a brand new Super X6DHR-IG Supermicro Motherboard with Intel E7525 (Tumwater) Chipset. This offer is for a single motherboard only.Key Features:1. Dual Intel® 64-bit Xeon® Support, up to 3.80 GHz, 800 MHz FSB2. Intel® E7520 (Lindenhurst) Chipset3. Up to 16GB DDR 333 SDRAM (or) Up to 32GB DDR 266 SDRAM4. Intel® 82546GB dual-port Gigabit Ethernet Controller5. 2x SATA Ports via ICH5R SATA Controller6. 1 (x8) & 1 (x4) PCI-Express, 2x 64-bit 133MHz PCI-X7. IPMI 2.0 Socket8. ATI RageXL 8MB GraphicsSpecification: Physical Stats Form Factor Dimensions - 12" x 13.05" (30.5cm x 33.2cm)
Processor/Cache CPU - Dual 604-pin FC-mPGA4 Sockets
- Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
- Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz
- Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz
- Xeon LV (Low Voltage) CPU, up to 2.8 GHz
System Bus Operating System Software - Supports 64-bit Operating Systems
- Supports 32-bit Operating Systems
- OS Compatibility Chart
System Memory Memory Capacity - Eight 184-pin DIMM sockets
- Supports up to 16 GB DDR 333 MHz memory or
- Supports up to 32 GB DDR 266 MHz memory
- Dual-channel memory bus
- Memory must be populated in pairs
- Single-rank modules are recommended for 6+ DIMM support
Memory Type - DDR333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes - 256 MB, 512 MB, 1GB, 2GB, 4GB**
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
- Supports Intel® x4 Single Device Data Correction (SDDC)
On-Board Devices Chipset - Intel® E7520 chipset
- MCH + ICH5R + PXH +82546GB
SATA - ICH5R SATA Controller
- RAID 0, 1, JBOD support
IPMI - Support for Intelligent Platform Management Interface v.2.0
- (Optional: AOC-IPMI20-E)
Network Controllers - Intel® 82546GB Dual Port Gigabit Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics - ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Super I/O Input / Output Serial ATA - Two Serial ATA ports
- Two SATA hard drives supported
IDE - Dual EIDE channels support up to four UDMA IDE devices
- Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy - 1 Floppy controller; 1.44 MB, 2.88 MB
LAN USB - 2x USB rear ports
- 2x USB internal headers
- USB 2.0 Compliant / 1.1 Compliant
VGA Keyboard / Mouse - PS/2 keyboard and mouse ports
Serial Ports - 2 Fast UART 16550 serial ports
Chassis ( Optimized for X6DHR-iG ) 1U Chassis Important Chassis Notes - To ensure system stability, a 420W (minimum) ATX power supply
[4-pin (+12V), 8-pin (+12V) and 20-pin are required] - Chassis must have CPU mounting holes required for 800MHz FSB CPUs with this serverboard.
Expansion Slots PCI-Express / PCI-X - 2 x Universal (SXB-E) slots
[1 (x8) and 1 (x4) using (x8 slots)] OR
[2x 64-bit PCI-X 133MHz slot] System BIOS BIOS Type - 8Mb Flash EEPROM with Phoenix® BIOS
BIOS Features - Plug and Play (PnP)
- SMBIOS 2.3
- DMI 2.1
- ACPI 1.0
- Fan Speed Control
Management Software - Optional IPMI (Intelligent Platform Management Interface) 2.0
- SuperDoctor® III
- Watch Dog
- NMI
Power Configurations - ACPI/APM Power Management
- Main Switch Override Mechanism
- Wake-On-Ring (WOR) header
- Wake-On-LAN (WOL) header
- CPU Fan auto-off in sleep mode
- Power-on mode control for AC power loss recovery
- Internal/External modem remote ring-on
PC Health Monitoring Voltage - Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
- CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6V
FAN - Total of five 3-pin fan headers
- 5x fans with status monitoring
- Status monitor with firmware/software on/off control
- Fan speed control
Temperature - Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Monitor 2 support
LED - CPU Overheat LED
- System Overheat LED
Other Features - Chassis intrusion detection
- Chassis intrusion header
- SDDC support
OS Compatibility • Please see our OS Compatibility Chart  |
|
