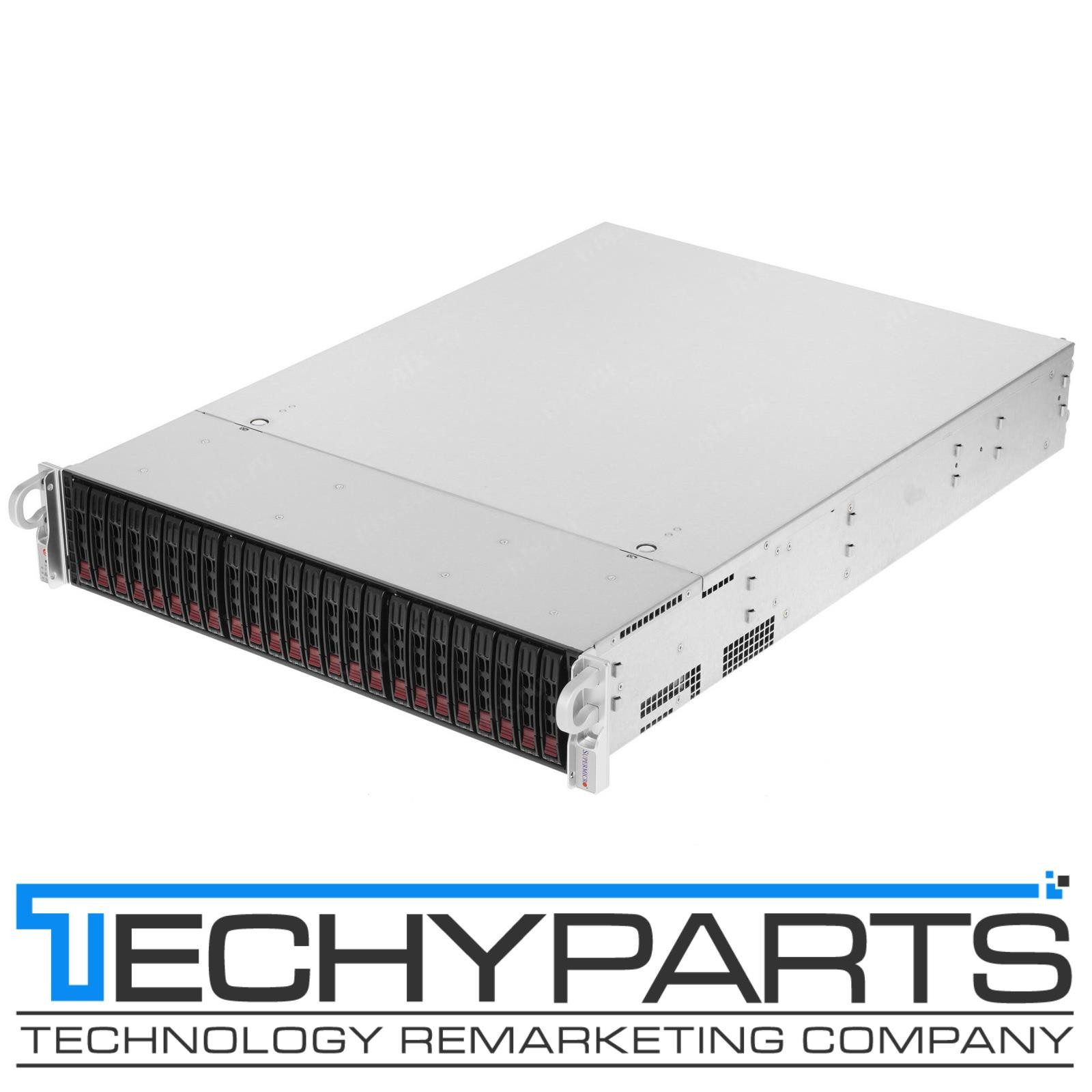

SIGN UP NEW Supermicro CSE-216BE1C4-R1K23LPB 24x2.5" SAS3/4x NVMe 2x1200W 2U Chassis Product Description NEW Supermicro CSE-216BE1C4-R1K23LPB 2U Server Chassis - 24x 2.5" SAS3 Hot-Swap Bays + 4x NVMe Support, Dual 1200W Titanium PSU

Model: CSE-216BE1C4-R1K23LPB

Key Features

• 2U chassis supports max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Supports up to ATX 12" x 13" MB with rear 2.5" HDD option installed
• 24 x 2.5" hot-swap SAS/SATA drive bays, optional 2 x 2.5" hot-swap drive bay (not included)
• 24-port 2U SAS3 12Gbps single-expander backplane, supports up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
• Dual 1U 1200W/1000W Titanium Power Supplies with PMBus (W76 x L336 x H40mm)
• 7 low-profile expansion slots
• 3 x 8cm high-performance PWM fans. Optional 5 x 6cm 4-pin high performance fans

Item Condition

Brand New in original box. All original standard parts and rackmount rail kit are included as listed below.

Warranty

90-Day Warranty!

This Supermicro 2U chassis delivers high-density storage with 24 hot-swap 2.5" bays and hybrid NVMe support. It is an excellent choice for building powerful enterprise storage servers, virtualization hosts, or database systems that require maximum drive capacity and performance in a compact 2U form factor.

Manufacturer's description and specifications:

Detailed Specifications Category Specification Product SKU CSE-216BE1C4-R1K23LPB Form Factor 2U Rackmount Chassis
Supports ATX (12" x 10"), E-ATX (12" x 13"), EE-ATX (13" x 13.68")
Supports up to ATX 12" x 13" with optional rear 2.5" HDD kit installed Processor Support Dual and Single Intel and AMD processors Dimensions Height: 3.5" (89 mm)
Width: 17.2" (437 mm)
Depth: 24.8" (630 mm)
Gross Weight: 53 lbs (24.04 kg)
Packaging (W x H x L): 25.8" (655 mm) x 10.1" (257 mm) x 37.8" (960 mm)
Available Color: Black Expansion Slots 7 low-profile PCI-E slots Drive Bays 24 x 2.5" hot-swap SAS/SATA bays
Optional 2 x 2.5" rear hot-swap bays (not included) Backplane 24-port 2U SAS3 12Gb/s single-expander hybrid backplane
Supports up to 20x SAS3/SATA3 HDD/SSD + 4x NVMe/SAS3/SATA3 devices Front Panel Buttons: Power On/Off button, System Reset button
LEDs: Power status LED, HDD activity LED, 2 Network Activity LEDs, Unit Identification (UID) LED, Fan Fail/System Over Heat LED Systems Cooling 3 x 8cm high-performance PWM fans (standard)
Optional 5 x 6cm 4-pin high-performance fans System Monitoring Chassis intrusion switch Operating Environment Operating Temperature: 5C - 35C (41F - 95F)
Non-Operating Temperature: -40C - 70C (-40F - 158F)
Operating Relative Humidity: 8% - 90% (non-condensing)
Non-Operating Relative Humidity: 5% - 95% (non-condensing) Power Supply Dual 1U 1200W/1000W Titanium redundant PSUs with PMBus
Dimensions: 336 x 76 x 40 mm
Power Efficiency: 96% (Titanium Certified)
Total Output: 1200W (200-240Vac / 200-240Vdc), 1000W (100-127Vac)
AC Input Frequency: 50-60Hz
Output Type: Backplanes (gold finger)
+12V: Max 100A (200-240V), Max 83A (100-127V)
+5Vsb: Max 4A
Power Distributor: PDB-PT216-2824 (12V/100, +5V 30A, +3.3V 24A, -12V 0.6A) Regulatory (Power Supply) BSMI, CCC, CE/EMC, FCC Class A, UL/CB, UL/CUL Standard Parts Included Category Part Number Qty Description Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9/X8 air shroud 13.68x13/12x13 Bracket MCP-320-82601-0N 1 Middle fan bracket for 826B/216B with 3 x 8cm fan Cable(s) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF Cable(s) CBL-0088 3 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM) Cable(s) CBL-0160L 2 US POWER CORD 16AWG, PB FREE Cable(s) CBL-0182L 1 PWR EXTENSION HDD TO RIGHT ANGLE HDD, PBF Part(s) MCP-290-00088-0N 1 SC119 Intrusion assembly Part(s) MCP-290-21604-0V 1 Silver chassis handle set for SC216 / 216B, RoHS Part(s) MCP-230-82602-0N 1 Top cover for SC826B/216B/825B Fan(s) FAN-0203L4 3 80x80x38 mm, 10.5K RPM, Middle Cooling Fan w/ New Plastic Ma Front Panel FPB-FP826-D 1 Front control board Dual color LED (FP826-D) for SC826,213,216 Front Panel FPB-TB826 1 16 pin Cable Adaptor Board for SC826 Drive Tray(s) MCP-220-00047-0B 24 Black gen 3rd hot-swap 2.5inch HDD tray Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5" HDD cage, RoHS Power Distributor PDB-PT216-2824 1 PDB with 23 pairs input connectors for SC216B Power Supply & Accessory PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm, HF, RoHS/REACH Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W Mounting Rail(s) MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack Rear Window MCP-240-82608-0N 1 216B/826B LP rear window, RoHS/REACH, PBF Payment
